Agv boilers: heating of individual houses with gas fuel

The most widespread in the modern world received a water heating system, which allows to effectively warm the air in confined spaces. However, it cannot function without heating devices that are designed to raise the temperature of the coolant. The most popular are the AGV units - gas heating boilers.

Device advantages

Such products operate on natural gas, which is formed in the depths of the earth as a result of the decomposition of organic substances. This type of fuel belongs to minerals.

During mining, both individual deposits and partial formations of oil and gas fields are found.

• When using AGV there is a significant economic benefit throughout the entire operation, as the price of fuel is low.
• The high efficiency of gas boilers allows you to effectively heat individual objects of any size.
• Compact dimensions of the devices provide the ability to place them even in small spaces.
• Convenience in service is provided thanks to the optimized design of the device.

Note! The installation of gas equipment must be consistent with the technical supervision service. For registration will have to provide a certain set of documents.

Types of gas water heaters

Classification of devices can be made according to different parameters, but power, location and functionality play an important role for consumers. If we talk not only about heating, but also about hot water, then it is worth considering two types of boilers.

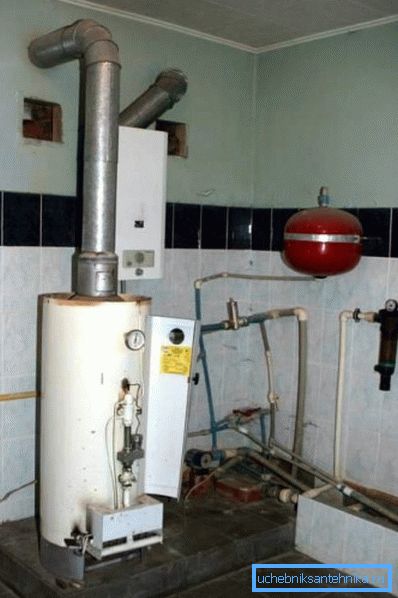

Single Circuit Units

Products of this type are used only for space heating, as there are no hydraulic elements in the interior. If you still need to provide a residential object with hot water, you can connect a capacitive apparatus of indirect heating. The main advantage of the products is low cost, which can be reduced due to the functionality.

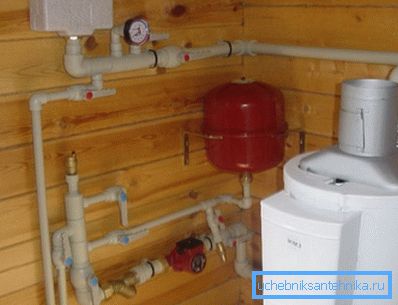

Dual circuit devices

The boilers can not only heat the home, but also provide it with hot water. The heating itself is carried out in a special heat exchanger, which may differ depending on the version. The cost of such devices is quite high when compared with previous counterparts.

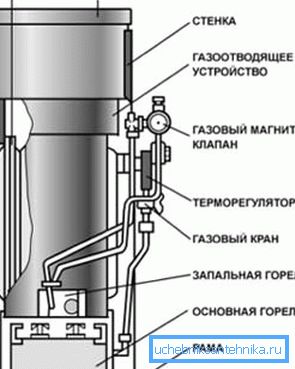

Structure and principle of operation of the apparatus

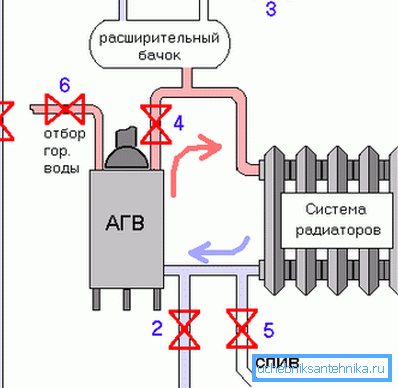

AGV works quite simply. Natural gas enters the automatic unit, through which the adjustment is carried out. Depending on the temperature, a certain amount of the substance is supplied. Next is mixing with air, after which the prepared mixture is ignited in the combustion chamber.

Next, the assembly unit is considered, that is, the elements that perform the main work are mentioned.

• The burner is designed to ignite the working environment..
• The heat exchanger is an intermediary between two heat transfer fluids.. In heating devices it can be made of cast iron, steel or stainless steel.
• A thermostat is needed to maintain the same temperature..
• The control unit allows you to adjust the system parameters.
• Thermometer and manometer are measuring devices..

Note! The structure of different models can differ significantly, therefore, above were only the main elements that perform the most important functions when heating water.

Requirements for the heating room

Individual developers can install gas appliances directly with their own hands, but the connection must be carried out by employees of specialized organizations.

Before installation it is recommended to familiarize yourself with the basic requirements that apply to the room where the device will be located:

• Ceiling height must necessarily exceed 220 cm.
• For one boiler you need to allocate 4 square meters. m square.
• Lining of the side surfaces with fire hazardous materials is not allowed.
• At 10 cu. m should account for 0.3 square meters. m windows.
• It is not allowed to make the doors in the combustion chamber less than 80 cm.
• The device is installed on a flat surface made of non-combustible materials.

Addition! The room should have a message with the general ventilation system of the building. Air supply can be done through the grille in the door or with the help of inlet valves.

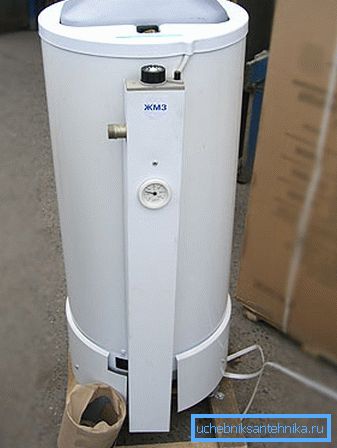

Installation details

Before you install the device, you must prepare a place. A metal sheet with a thickness of 0.8 mm is placed on the lower plane. Instead, you can use refractory plates that are allowed to be used for these purposes. In some cases, the instruction may require pouring over the coupler, since the weight of the apparatus for heating water is quite high.

At least 10 cm retracts from the side surfaces. You can move up close to the wall if work is done to create a refractory layer. For this, steel sheets and asbestos panels are used.

The equipment is installed on a properly prepared surface. The alignment process is carried out using a building level. If necessary, a non-combustible material is placed under the device supports.

As a conclusion

To date, gas boilers AGV heating - this is the best solution for heating individual homes, which is associated with the relatively low cost of natural gas. With their help, it is possible to provide housing not only with heat, but also with hot water at a low cost, which cannot be said about other analogues. The video offered in the article will allow you to visually familiarize yourself with the topic.
