Bimetallic radiators of heating rifar: structural, technical

In this article we will talk about what a bimetallic radiator of heating Rifar is, what technologies it is made of and what distinguishes it from a wide range of analogues on the market.

The topic of the article is becoming increasingly relevant every year, as the range of heating equipment is expanding. In addition, the price of proposals, as well as the technologies and materials used in the production, is different, and therefore it is very difficult to make a choice.

Products sold under the brand name "Rifar" refers to the average price segment with a consistently high level of quality. The entire range of products represented by this brand is manufactured in the territory of the Russian Federation on modern production equipment using high-quality materials.

It should be noted that the products "Rifar" currently can be purchased not only in Russia, but also in the CIS countries. The most popular today are radiators bimetallic Rifar monolith 350 and 500, which are made in strict accordance with import standards of operational quality and safety.

So, after we decided on the choice of the domestic brand, it remains to examine in detail the products on the market and their features.

Performance specifications

Due to the well-thought-out and efficient design, combined with the use of advanced production materials, bimetallic heating batteries are characterized by high heat emission and low inertia. As a result, the use of such equipment is the optimal solution for a country house, and for the device of autonomous heating in a city apartment.

Consider the main advantages inherent in bimetallic radiators brand Rifar:

• Adaptability to operation as a part of the centralized systems of heating. Batteries withstand high pressure and long-term aggressive exposure to heat transfer fluids containing specialized reagents.
• High corrosion resistance both outside and inside, which is largely due to the selection of production materials.
• Easy do-it-yourself installation due to the high quality of the connecting elements on the radiator housing and due to the wide range of associated fittings, presented on sale today.
• Durability and operational reliability, which is largely due to the coordination of resistance, resistance to pressure in the system and mandatory pre-sale quality control of manufacturing.
• Ability in the shortest possible time to heat the heated room due to high heat transfer (one section releases heat equivalent of more than 200 W!).
• Possibility of operation in a wide range of coolant temperatures up to +135 ° C.
• Low inertia due to the ribbed surface and a limited volume of coolant (no more than 0.2 l per one section).
• Aesthetically appealing, which is guaranteed to fit into most modern interiors.
• Acceptable price in comparison with most foreign analogues, which is important if the heating system is built with a limited budget.

Construction features

Consider the design of the brand’s products, taking the Rifar bimetallic radiators of the monolith 500 as an example.

This is one of the most powerful modifications in the range of heaters from this manufacturer. The modification is intended for use in rooms with a large area or in rooms with insufficient or completely absent thermal insulation. This is due to the large dimensions of the product, and, consequently, the ability to accommodate a considerable amount of coolant.

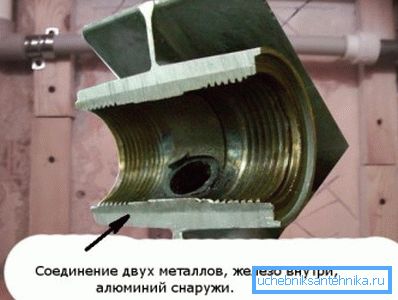

The core of the radiator is made of seamless seamless welded pipe, the inner space of which is protected by a layer of zinc. The construction of steel pipes, assembled together under high pressure, is cast with aluminum alloy.

Performing a high pressure aluminum fill ensures high accuracy of the configuration of the finished product without the need for finishing. In addition, increased pressure prevents the formation of internal cavities and cavities in the metal layer, which ensures a long life of the device.

The use of a steel core in an aluminum case is designed to reduce the weight of the product in comparison with all-metal counterparts without sacrificing heat transfer parameters.

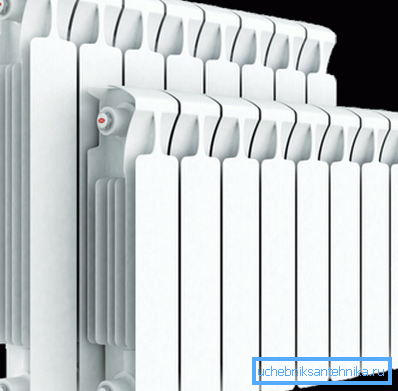

The external section of the steel core is threaded for a strong and tight connection to the pipeline. As a rule, batteries are universal and are designed for top and bottom installation of the pipeline. If these or other outputs remain untapped, a tight plug is screwed into them.

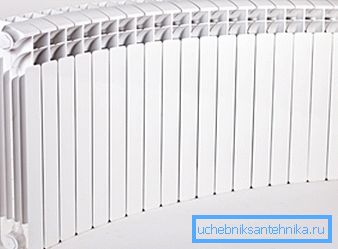

Important: Under the Rifar brand, in addition to the main list of products, special radiators are made, for example, models with one or another radius of curvature.

Design features

All bimetallic radiators, regardless of the brand of the manufacturer, have an external similarity, which, incidentally, is not surprising given the similar structural features. Nevertheless, we note that the radiators presented by the brand Rifar are modern products with an advanced design.

In terms of aesthetic design, the products of this brand are in no way inferior to their foreign counterparts, and in some ways surpass them. For example, you can easily find white batteries in most specialty stores. But, what to do, if white color is not suitable for decorating a room and certain shades are needed?

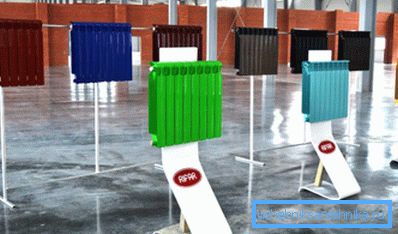

Rifar offers a simple solution to this difficult problem - custom-made batteries can be painted in almost any color from the RAL catalog. By the way, the quality of painting of such products is simply impeccable.

Comparison of modifications

Bimetallic radiators are presented by the wide list of models which are distinguished by the price, power and dimensions.

• In the line "Monolith" you can choose the largest monolithic products that are used in the arrangement of large rooms with massive glazing. In addition, such batteries are actively used in the design of public buildings of retail space, office rooms of educational audiences, etc.

Important: Despite the large size, these structures are characterized by high heat transfer and high efficiency, which makes the operation of an autonomous heating system more economical.

• The radiators presented in the RIFAR BASE line are products with a smaller volume and smaller dimensions in comparison with devices from the Monolith line. Such units is the optimal choice for the arrangement of heating systems in ordinary country houses and large apartments. The degree of heat transfer and the power of the device is determined by the number of sections. The Rifar Base 500 model is equipped with a larger number of sections, compared to the Base 350 model. Consequently, a product with a larger index will heat the air in the room faster than models with a smaller index and fewer sections.

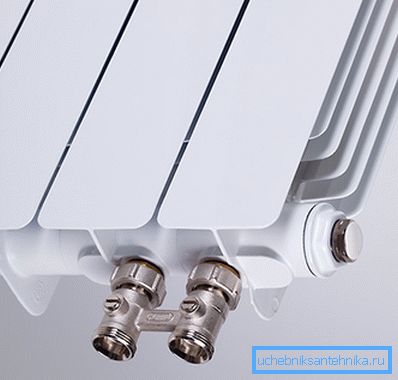

• An effective solution for autonomous heating systems is the use of modifications equipped with a thermostatic head. For example, bimetallic units Rifar Base Ventil already in the factory version allow you to limit the power and thus provide a comfortable temperature combined with energy savings.

The quality of bimetallic radiators Rifar

The manufacturer of bimetallic batteries Rifar does not in vain guarantee their uninterrupted operation for 25 years. After all, finished products are subject to strict quality control. Moreover, these structures are made taking into account the difficult operation in the conditions of domestic centralized heating systems.

Important: Products sold under the Rifar brand are insured against a number of operational risks by the company INGOSSTRAH, which once again indicates the reliability of these batteries.

Conclusion

Now that we have reviewed what is the instruction for the selection and use of bimetallic batteries, you will be able to select and purchase the product that will meet your needs. More useful information and you can find it by watching the video in this article.
