Borinsky gas heating boilers - models and their features

Gas boilers are the most popular method of heating recently, since gas is an affordable and cheap type of fuel. Therefore, the market offers a large selection of these devices, both from foreign and domestic manufacturers. The latter includes Borinsky boilers, which are very popular among consumers, in fact, this article is dedicated to these products.

General information

Borinsky boiler plant has a long history, since it was founded in 1939, the last century. True, he began to engage in the production of equipment for heating only in 1992. For more than twenty years, this company has taken a leading position in the domestic market of gas boilers.

Gas heating boilers Borinsky have proven to be reliable and high-quality heating devices, which are ideal for installation in apartments, private houses, cottages and other various objects. Moreover, in addition to high quality, devices attract buyers with low cost. Therefore, the entire range is available to every owner of a country house or apartment.

It should be noted that domestic equipment has certain features that make it more attractive compared to imported equipment.

In particular, the following points can be highlighted:

• Adaptation to work in domestic conditions - boilers comply with all norms and standards adopted in the territory of the CIS countries. In particular, the devices can operate successfully with low gas pressure. In addition, they are equipped with a special valve that prevents damage to the device in case of an increase in pressure in the water supply system.
• Stabilization of the gas flame - even in the case of gas pressure drops, the flame is automatically equalized, thereby eliminating the attenuation of the fire, besides heating the heat exchanger is carried out evenly. This is very convenient, since in many localities the gas supply is not always stable.
• Attractive appearance - the case and some components of these devices are painted with polymer paint, so that they do not lose their attractiveness even after a long time. In addition, the coating reliably protects the product from corrosion.
• Non-volatility is the quality of Borinsky boilers is especially important for rural areas, where electricity interruptions often occur.
• Simplicity of service - in case of failure of any unit, it can be quickly and cheaply replaced, unlike imported boilers.

Thus, this technique is a profitable alternative to European counterparts.

Boiler models

Borinsky plant today produces several main model lines of gas boilers, each of which has its own distinctive features and advantages. Below are more detailed with them.

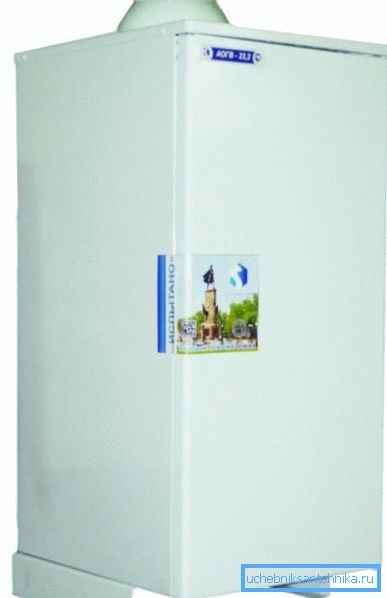

Model range AOGV

These models are an excellent option for equipping independent heating systems in homes, apartments or even small enterprises. Like all other devices from this manufacturer, they are made on modern equipment using modern technologies and high-quality materials.

Devices in this series are characterized by such qualities as:

• Sufficient power - 7 kW, which allows you to heat a room of 40 - 250 square meters;
• High performance;
• Reliability;
• Low cost;
• Security.

It should also be noted that the AOGV devices are not at all inferior to their European counterparts. Innovative automation provides control over fuel consumption, heating level, etc.

Among the other advantages of these products are the following points:

• Simple and functional at the same time. Thanks to the mechanical thermostat for heating, you can set the required level of heating with your own hands. A constant room temperature is provided by an automatic system connected to the sensors.
• High level of security due to multiple sensors, including traction control. Therefore, in the case of emergency situations, the electronics immediately reacts and turns off the equipment. Moreover, the device is equipped with a draft stabilizer, which eliminates the penetration of carbon monoxide into the room.
• Profitability - the efficiency of these boilers reaches 89 percent, due to which the house is heated with minimal fuel.

Note! The AOGV series is equipped with one circuit, so when choosing it is necessary to take into account that the function of the device is limited to heating water for heating. However, such boilers are more stable in operation than dual-circuit ones.

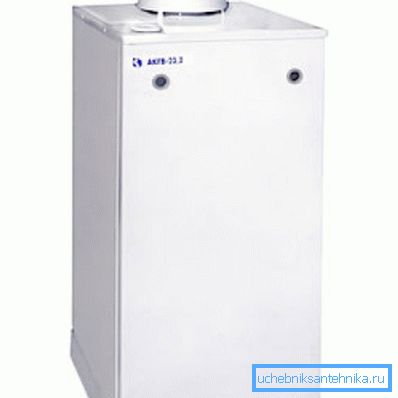

ACGV boilers

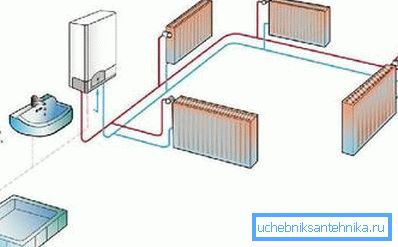

Installation of floor devices of the AKGV series will allow not only to provide the house, cottage or office with heating, but also hot water. These double-circuit boilers have compact dimensions, so that they can be installed anywhere in the room without compromising usable space.

I must say that the devices of the AKGV series are available in two versions:

Among the features of the model are the following points:

• Protection against gas leakage - due to the presence of a flame sensor, in the event of its attenuation, the device automatically shuts off.
• Protection against overheating - the maximum allowable temperature of the coolant is 95 degrees Celsius. In case of exceeding this threshold, the device automatically shuts off, which eliminates the failure of the heating system.
• Reliability and durability, which is achieved through the use of high-quality automation and the best materials.
• Effective abduction of combustion products - automatic switches off the device if there is no draft in the chimney for 10 seconds.

Thus, this equipment is an excellent choice in cases when it is necessary to provide not only heating of the room, but also hot water supply. Moreover, the device is able to effectively heat an area of ​​up to 150 square meters. Depending on the model, the power of the boilers ranges from 11.5 to 29 kW.

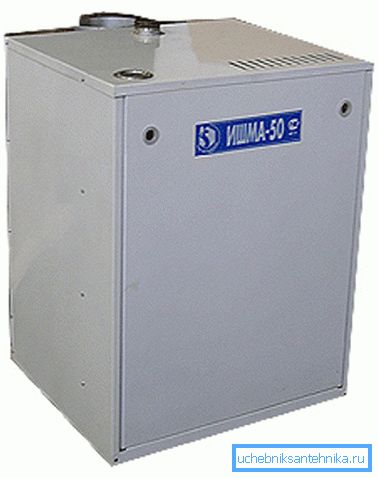

Ishma Boilers

The Ishma series is designed specifically for use in small industrial premises, as well as in apartment buildings with an area of ​​up to 1,000 square meters. The efficiency of this technique is also quite high - reaching 86-91 percent. This provides efficient heating with relatively low fuel consumption.

I must say that the fuel consumption of these devices is an order of magnitude less than that of foreign counterparts with the same characteristics.

Among their other advantages are the following points:

• Reliability and reliability - the boilers of this series are equipped with a full set of automation and electronics, which provides protection against high pressure in the system and other emergency situations. Traction stabilizer provides effective removal of combustion products.
• A simple instruction manual due to electronics, which ensures the maintenance of the modes of operation of the device in automatic mode.

The capacity of the Ishma series boilers ranges from 30 to 63 kW.

KOV boilers

The boilers of the KOV series are designed specifically for the construction of autonomous heating systems in hotel complexes, various enterprises and other large objects. These devices are equipped with powerful cast iron heat exchangers, which are highly resistant to corrosion and durability, which reaches 20 years.

Among the features of these devices are:

• Convenience of operation - as well as devices of other models, KOV are equipped with an electronic control system, thanks to which you can quickly adjust the desired temperature mode, which will subsequently be maintained by a thermostat. All readings can be read on the digital screen.
• Enhanced security - in case of attenuation of the flame, the automatics tries to ignite it five times, and then turns off the device. In this case, the screen displays an error code by which you can find out what the fault is.
• Efficiency - modulation of the flame reduces gas consumption and makes the device more efficient - efficiency reaches 91 percent. In addition, the automatic ignition system eliminates wasted fuel.
• Reliability - Diagnostic systems allow time to identify the fault and inform the user about them.
• Additional functions - coppers of this series allow to connect to them boilers for indirect heating of water. Additionally, the installation can be completed with room regulators, allowing to maintain the optimum temperature in the room.
• Power of coppers of this series makes 30-63 kW.

It should be borne in mind that these boilers are not adapted to provide hot water, as they are single-circuit.

Note! The weight of this equipment is 150 - 270 kg. Therefore, it is necessary to prepare a place in advance for its installation.

KSGK series

This model range includes dual-circuit boilers that are designed for heating systems in which the water pressure does not exceed 0.1 MPa. Their distinctive feature is the presence of a closed combustion chamber. In addition, the device has a special design of the heat exchanger and the burner, made of durable stainless steel.

Due to its compact size, the boiler can be installed in any room, for example, in the kitchen or in the bathroom.

Among other features of the device can be identified:

• The presence of stabilization of traction;
• Stabilization of the flame.

In addition, there are all kinds of safety valves and other electronics that increase the efficiency and safety of the device.

The power of the device is sufficient for effective heating of rooms up to 150 square meters.

Wall Ishma Boilers

In addition to the floor units, which make up the bulk of the products of this manufacturer, there are wall boilers in the range. As a rule, this equipment is used to provide private houses, apartments and cottages with heat and hot water.

Currently, the company produces only one series of wall-mounted gas heating boilers - Ishma. This device is equipped with a reliable steel heat exchanger. Among other advantages are innovative electronics, which ensures the performance and safety of heating.

Wall boilers are both single and double circuit. The price of these devices is lower than outdoor, however, they are less productive. Therefore, for work in systems with a large volume of coolant, it is better to give preference to floor devices.

Tip! In the market you can find gas boilers from China or neighboring countries, the cost of which will be much cheaper than Borinskiye. However, as a result of the lower quality and reliability of these devices, they can hardly be called a bargain.

Features of the choice of the Borinsky boiler

Before acquiring the Borinsky boiler, as, in fact, any other, it is necessary to determine the tasks that are set for it. This concerns both the functionality of the device and its power.

The choice of power depends not only on the area of ​​the house, but also on its features. If, for example, the structure is modern and warmed, then you can choose a device that is commensurate with the space that needs to be heated. If the house is cold, then the device must have a certain amount of power.

As for functionality, you will have to choose between single-circuit and dual-circuit devices. If the house does not have centralized hot water, then, of course, you need to install a device with two circuits. If autonomous heating is performed, for example, in an apartment where there is hot water, then it does not make sense to purchase a double-circuit boiler.

In addition, some other conditions should be considered. For example, on what kind of fuel the device will work - natural gas or from cylinders.

Note! Some models of boilers require changing nozzles for working on liquefied gas.

As mentioned above, boilers can have both domestic and foreign automatics. The latter is more functional, however, its cost is higher.

Here, perhaps, are all the most important points that need to be paid attention to when choosing Borinsky boilers.

Conclusion

Borinsky gas boilers are a reliable and high-quality equipment, the cost of which is significantly lower than European counterparts. In addition, a wide range of products of this company is able to meet the most diverse requirements of the consumer. Therefore, the great popularity of the Borinsky boilers in the domestic market is quite natural.

From the video in this article, you can pick up some additional information on this topic.
