Fireplace stove with fireplace: design features and

02-07-2018
Heating

If the gas pipeline is not connected to your suburban area, then you should take care of an alternative method of heating the building located on it in the winter period. In this case, the most traditional and still losing its popularity method is stove heating. In this article, we will look at options such as heating wood-burning stoves, allowing you to expand the functions of classic stoves and become a kind of "highlight" of your home.

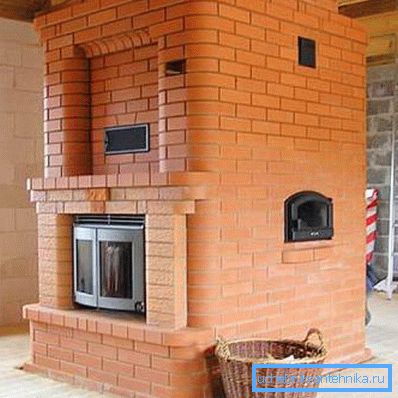

Photo heating stove with fireplace

General provisions

Even in the case when there is no gas supply in the building, there are various options for arranging the heating system: a household gas heating boiler with gas cylinders, an electric converter, an infrared lamp and others. But, as we noted above, the owners often prefer the use of firewood. Why? Let's take a look at the advantages of fireplaces:

Merits

  • Aesthetics. Fireplaces perfectly complement the design of the interior.

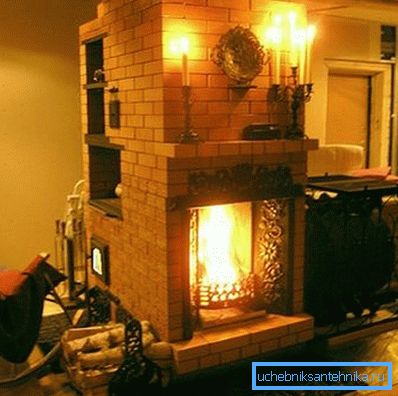

Heating stove as the main decoration of the house
  • The use of environmentally friendly fuels, for example, such as firewood and coal.
Environmentally friendly fuel
  • High performance. Due to this, the cost of operating the described equipment is quite economical.
  • Compactness. Even brick options can be placed quite comfortably, for example, into two rooms, and metal, especially corner ones, generally occupy a minimum of useful space.

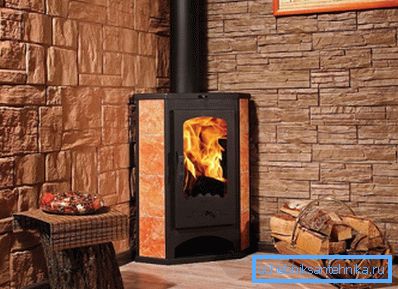

    Corner heating stoves compactly fit in the corner of the room

  • Wide range of cladding. This allows you to enter the stove with a fireplace in any, even the most unusual interior.
Facing natural stone do it yourself

disadvantages

Immediately you should consider the presence of some negative sides:

  • Uneven distribution of heat in the room. The main heat accumulates under the ceiling, which is not ideal for residents.

Tip: in order to increase the rationality of heating, it is recommended to connect the stove to the heating radiator system with heat carrier. So you distribute the heating around the perimeter of the entire building.

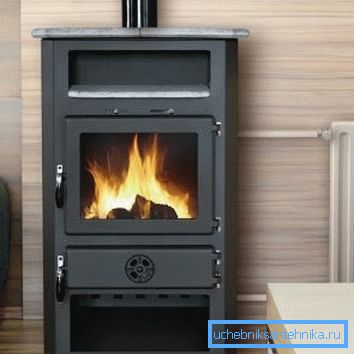

Fireplace stoves with water heating provide better heat distribution in the house
  • Fast cooling. The design warmed up in the evening does not guarantee an acceptable temperature in the house in the morning.

Description

Wood-burning stoves, fireplaces have a certain set of technical characteristics that you need to navigate in order not to be mistaken with the choice of model:

Specifications

Characteristic Selection features
Manufacturing material According to the material used for manufacturing, the most common are such stoves:
  • Brick differ in high heat capacity, durability and original beauty, being, as a matter of fact, a part of the building. The disadvantages include a lot of weight, which requires a separate foundation, considerable size, difficulty and high cost of installation.
  • Pig-iron ones have smaller sizes, weight and cost, and they are also less labor-consuming in installation, since a ready-made construction is bought.
Power It is selected in accordance with the size of the room: the more, the more powerful. The exact same calculation is carried out from the condition that with a classical ceiling height of 250 cm, one kilowatt is enough for 10 square meters.
Efficiency The greater the value of efficiency, the more economical fuel consumption. Choose so that its value is not less than 60%.
Facing material Cladding is possible as cast-iron stoves, and brick, although in the second case it is carried out less frequently. It is very important to understand that it affects not only the appearance of the structure, but also its heat capacity. So finishing of ceramic or stone will warm up longer, but it will also keep the heat warm even after the furnace stops working.
Section of exhaust pipe The wrong choice of this parameter can cost the health and even the life of the tenants, since, if the diameter of the chimney is insufficient, the poisonous products of combustion will go to the living room. The instruction assumes the following rule: 8 cm is needed for 1 kW of power2 section.

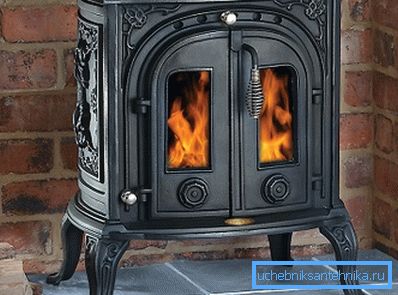

Cast iron stove

Tip: do not save on the power of the furnace equipment, as this will lead to its overheating and premature failure.

Also it should be taken into account that in case of purchase of cast-iron oven equipment, be sure to specify which type of fuel is preferable for it. Most often it can be firewood, coal or peat briquettes.

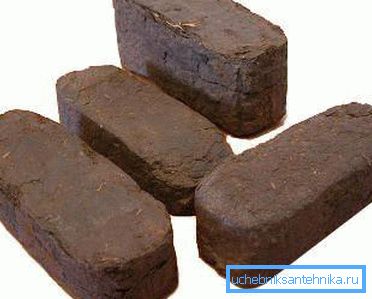

Samples of peat briquettes

Design

The structure of stoves with fireplaces looks like this:

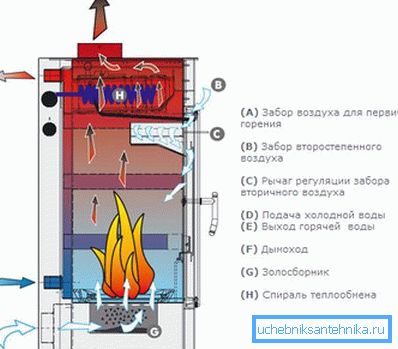

Schematic arrangement of the most significant elements
Designation in the figure Title
BUT Air intake for primary combustion
AT Secondary air intake
WITH Secondary air intake control lever
D Cold water supply
E Hot water outlet
F Chimney
G Zolosbornik
H Heat transfer spiral

Conclusion

Stoves with fireplaces are an excellent solution for owners of country houses, allowing you to realize the heating of the house is not only practical, but also aesthetic. In this article we have analyzed the main strengths and weaknesses of such heating equipment. Be careful when choosing the appropriate specifications, and the installed stove will serve you for a long time and efficiently.

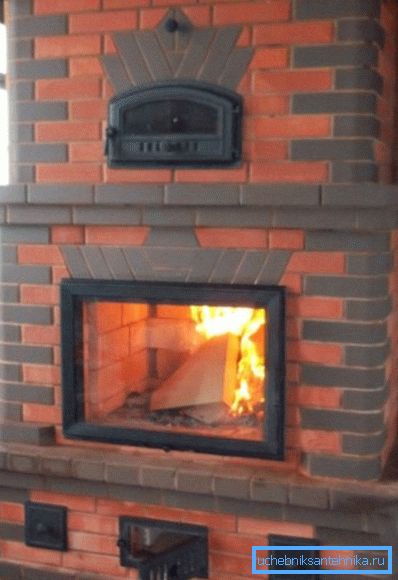

Warm and beautiful

On the provided video, you can familiarize yourself with additional materials that are directly related to the stated topic. Do not deny yourself the aesthetic pleasure when arranging the heating system in your country house.
