Gas boilers heating kiturami - the art of heating from south

Despite the development of alternative energy, mankind is still actively using the usual sources of energy, in particular, gas. The South Korean manufacturer has been producing heating boilers for more than a decade and is rightfully one of the world leaders in this field. It makes sense to elaborate on the products of this manufacturer.

About Kiturami products

The company was founded in 1962 and all these years honed the skill of the production of heating boilers. During this time, the company's products gained confidence in the markets of Russia, Japan, Europe and the rest of the world.

The main activity of the manufacturer is the production of heating boilers, expansion tanks for heating, burners, chimneys and other elements necessary for the installation of the heating system.

You can select such types of products as:

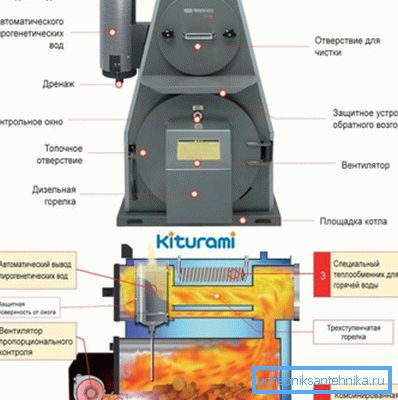

• boilers, moreover, produced models that work on gas, and liquid or solid fuels. Kiturami solid fuel boilers can operate on either conventional wood or wood pellets (pellets) and are distinguished by high efficiency;

Note! The boilers are produced by double circuit, so that they can be used not only for heating, but also for the needs of hot water supply.

• fuel tanks;
• fuel pumps;
• expansion tanks;
• chimneys etc.

Overview of heating boilers

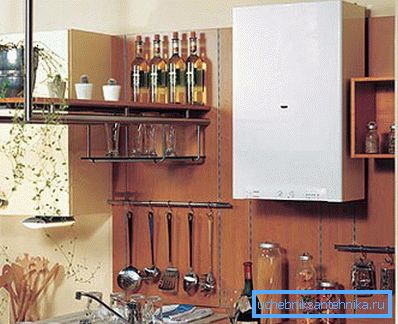

Given the cheapness of gas for the population in our country, the most popular boilers heating Kiturami gas. Such devices are compact in size, high power, ease of maintenance and installation. You can select several series of heating devices - 3 series marked World (Plus, 3000 and 5000), as well as Twin Alpha.

Features of World 3000 and 5000 series boilers

Special attention to the issue of heating economy is a common feature of all Kituurami heating devices, not only gas (efficiency exceeds 90%).

As for the World series, we can distinguish such features of their work as:

• several modes of operation - for ease of adjustment, modes are designated as “Absence”, “Shower”, etc .;
• advanced safety unit - gas analyzers will instantly “feel” a gas leak and turn off the device;
• turbocharging ensures stable traction, combustion products are instantly drawn into the chimney;
• power enough to heat a large area;

• in steps of literally 1? C, you can adjust the temperature of hot water;
• automation constantly monitors the status of the main components of the heating circuit. For example, if there are interruptions in electricity, the boiler will turn off, because the circulation pump will stop working, and the circulation of the coolant will be under threat.

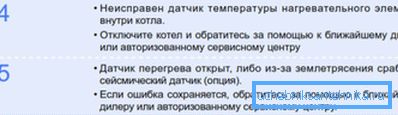

• The self-diagnosis function looks curious. In the event of a malfunction, a person can determine the malfunction on the basis of a lit digit (of course, using technical documentation).

The only spoonful of tar in this barrel of honey can be considered a little unusual device of the boiler. In particular, in the World series, a person unaccustomed to Kiturami products may be confused by the location of the air intake and emission of combustion products. When replacing the chimney with your own hands, this may become a small problem, but this flaw cannot be considered critical.

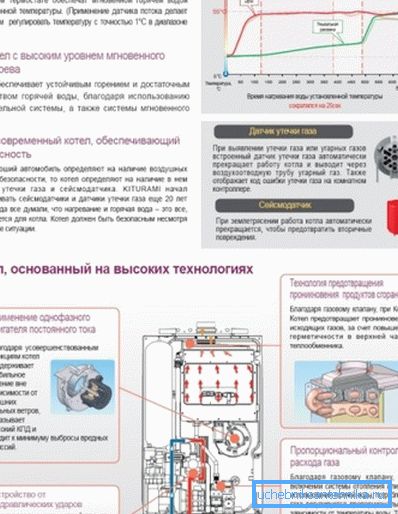

The triumph of science - a series of Twin Alpha

Devices in this series are considered the most modern and technologically advanced.

Among the features of Twin Alpha boilers it is worth noting:

• extremely economical, when switching to standby mode, they consume about 1 watt of power;

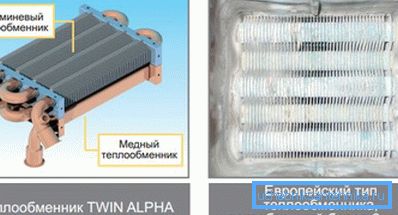

• the heat exchanger is made not of steel, but of pure copper and aluminum, the thermal conductivity of these metals is higher than that of steel.

The series includes 5 models, differing in power and dimensions. So, heating boilers of Kiturami Alpha 13R at their peak can produce a power of about 15.1 kW, which will be enough to heat a living area of ​​150 m2, while in the hot water mode, water can be supplied at a speed of 8.6 l / min. The weight of this model is 26 kg.

The most powerful model Alpha 30R provides up to 34.8 kW and is capable of heating a house of 340 m2 in size; in the hot water mode, water is supplied at a rate of 20 l / min.

Note! Despite the much greater power, the size and weight of the boilers are not very different. So, the mentioned models of boilers differ only in width (more powerful 5 cm wider) and weight (the Alpha 30R model weighs 3 kg more). So there will be no problems with the installation.

As for the cost, the Twin Alpha series is on average 10 - 12 thousand rubles cheaper than World3000.

For example, the Alpha 20R model costs about 30 thousand rubles, and the price of a World3000 series device of comparable power is about 42 thousand rubles.

Installation Features

When installing the boiler, the manufacturer recommends taking into account the following factors:

• the weight of the wall model is 30–45 kg, therefore it is not recommended to place it on light partitions; the supporting wall can be considered the best option for installation;
• It is recommended to use a rubber gasket to reduce noise from possible vibration;
• It is desirable that the installation site was not waterlogged.

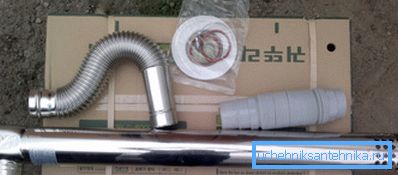

Particular attention should be paid to the installation of the chimney; a coaxial chimney is used to remove combustion products. To facilitate the work allowed the use of telescopic chimneys.

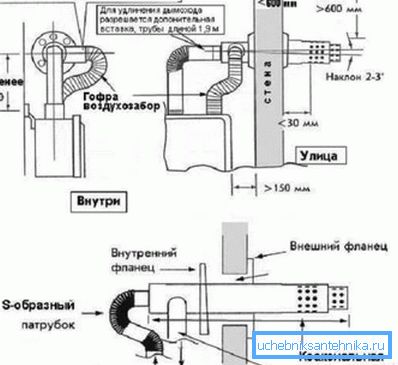

The installation manual for the pipe looks like this:

• when connecting individual elements, sealing tape is necessarily used, and the joint tightness is achieved by tightening the connecting bolts;
• in the event of a pipe being taken outside the wall, the manufacturer recommends that the maximum length be limited to 2.5 m;

Note! Is the slope 3-5 inclined? in order to ensure condensate drain.

• with regard to the device of the pipe through the roof, it is necessary that throughout the pipe was provided free descent to the pipe;
• the horizontal section of the pipe in the section from the exit from the boiler to the vertical section should not exceed 90 cm, otherwise a deterioration in thrust is possible.

Summarizing

Heating boilers are popular not only in country houses, but also in the city, because autonomous heating gives a lot of advantages compared to centralized. Boilers Kiturami can be attributed to one of the most high-tech offers on the market, high efficiency, durability, the possibility of flexible regulation of work only contribute to the growing popularity of products of this manufacturer.

The video shows in detail the principle of operation of the gas boiler Kiturami.
