Currently, natural gas heating is considered to be the most popular. This is caused primarily by economic reasons - this method of heating is much cheaper than using electricity, solid fuel or petroleum products. For example, we decided to consider the gas consumption for heating a house of 100 m2 and after analyzing, draw conclusions on the issue of fuel economy.

Saving gas is relevant among owners of residential real estate.

Which option is better fuel supply

The calculation of gas consumption for heating a house can depend on several factors. For example, the heating of a private house with liquefied gas costs a little more than the main one.

Plus, the degree of housing insulation and, of course, what kind of gas boiler for heating is installed in a private house, but first things first.

Heating by main fuel

In our mighty country, with its several climatic zones, it is almost impossible to derive a universal formula.

Therefore, we ventured to calculate the average gas consumption for heating a standard house of 100m ?.

Photos of the boiler room in the cottage.
  • First of all, it should be noted that in a standard house the ceiling height does not exceed 3m, most often 2.7 - 2.8m. With such initial data it is considered that the heating is 10m? on average, 1kW of power should go. By simple calculations, we learn that the boiler power should be at least 10 kW.
  • If we assume that the equipment will operate continuously for a whole month, at full design capacity, then 10 kW must be multiplied by the number of hours in a month. As a result, the final figure of 7200 kW comes out. But from experience we know that equipment does not always work at full one hundred percent power, so 7200 kW can be safely divided in half, it turns out 3600 kW.
  • If we take the average data, the equipment is operated about 7 months a year.. We perform calculations and find out that about 25,200 kW will be spent on the heating season.
  • 0.112 m3 of gas is consumed on average by the boiler for each kW of heat output. Accordingly, for the heating season 25200х0.112 = 2822.4 m3 / year.

To translate the figures in the cash equivalent, in this case it makes no sense, as the price may differ by region.

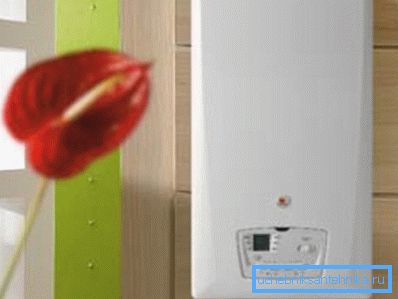

Photo hinged boiler.

Important: the result obtained in this case is approximate. After all, we tried to calculate only the costs of gas heating boilers, without taking into account the preparation of food and heating water for domestic needs.

Work on liquefied fuel

The reality is that in cities and nearby communities, gas pipelines are the norm. In the depths of this luxury is less common, so people use for heating liquefied gas.

Despite the fact that the consumption of liquefied gas for heating a house is slightly higher than the main one, it turns out to be more profitable in any case than to heat it with solid fuel or oil products.

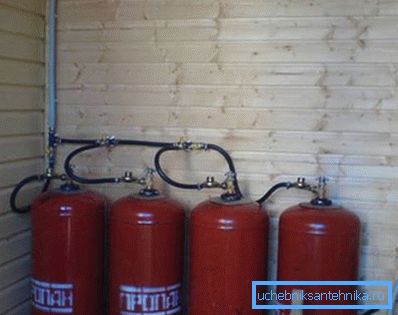

The system of cylinders.

Autonomous gas supply can be carried out by connecting several gas cylinders tied in a single system. There is also the option of using a gas tank, it is a special metal or plastic container with a large volume.

Important: gas consumption for heating from cylinders or gas tank is absolutely the same. The difference is only in volume, as a rule, the gas tank is installed on several houses at once.

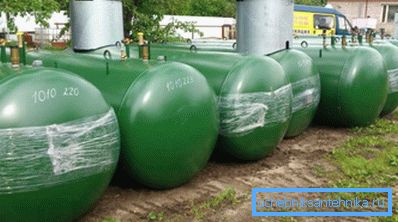

Gas-holders.

The gas consumption rate for heating of a cottage in which an autonomous system operating on liquefied fuel is installed is calculated in a more complicated way. Here we need to take into account several physical quantities. In order not to go into the wilds, we present a ready table in which the average values ​​of fuel consumption for heating the dwelling are presented.

Specifications Cottage 150m? Cottage 350m?
Type of boiler Wall mounted unit up to 25kW Outdoor unit up to 45kW
Gas consumption 3000l 6600l
Fuel price 13 rub. 13 rub.
The price of fuel for six months 39000rub. 86450 rub.

Important: this table was drawn up taking into account the fuel consumption for heating water for domestic needs and cooking, in a house where 4-6 people live permanently.

The cost of heating the house 200m ?, different types of fuel.

Ways to save

Indeed, the gas system is currently the most profitable in terms of heating. But do not forget that all these advantages can level ordinary mismanagement. To really save on fuel, it’s not enough to screw up the burner with your own hands, you should perform a number of side events, where the instruction is well known and quite simple.

First of all, it is necessary to warm the dwelling, in practice it is checked and proved that up to a third of heat can be lost through the walls. In some cases, this figure can go up to 50%. If we talk about the most economical way, now it is popular to warm the facade with foam plastic or polystyrene foam, followed by plastering.

Of great importance is the heat capacity of the windows. Modern plastic windows fully meet all the requirements of thermal insulation.

Plus, the price they have at the moment is lower than that of products from natural wood. Here you can also add insulation of doors and arrangement of vestibules.

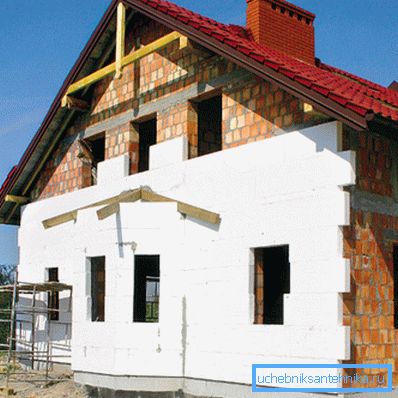

Thermal insulation of the facade foam.

Heat tends to rise up, so the insulation of the roof is necessarily included in the overall set of activities. The easiest way is to make a kind of sandwich consisting of mineral wool and steam and waterproofing layers.

Floor insulation isolates the flow of cold air from below. For example, a warm floor system is sometimes more profitable than installing several cast-iron radiators. In addition, this system saves usable space in the house.

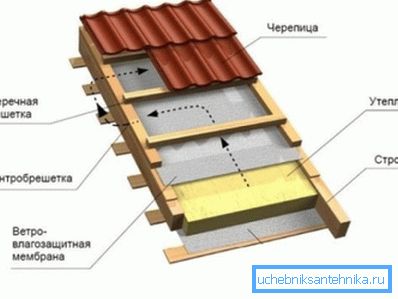

Option of warming the roof.

But even in a well-insulated house, gas consumption for heating can be significantly reduced by using modern equipment. As is known, the heart of the whole system is the gas boiler for heating, and it should be started with it.

Pay attention to the material of the heat exchanger and the type of gas burner. The burners of the closed type are considered more economical, plus they use oxygen taken from the street for work.

The boilers of condensation type have proven themselves well, the efficiency of these units can reach 97%. Convector boilers are considered less economical, although they work properly.

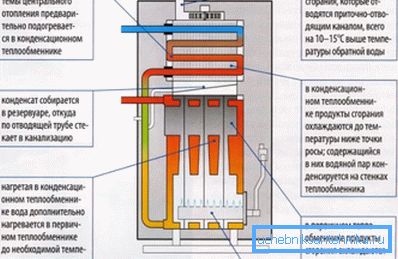

The principle of operation of the condensation unit.

Do not save on automation. The system of thermal sensors and the availability of programmable modes of operation can save a significant amount of funds. The quality of radiators and piping of heating also plays a last role, it is desirable to install a heat shield behind each radiator.

The video contains additional material on the topic.

Conclusion

As a result, I would like to note that the above tips regarding measures aimed at reducing energy losses are mandatory. Without them, even using such an economical fuel as gas, the cost of heating the house will be significant.

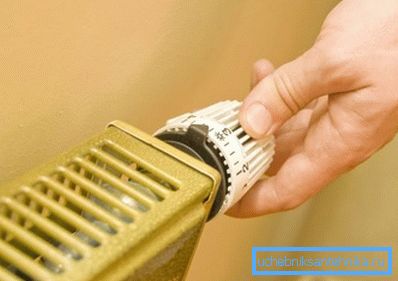

Regulator on the radiator.
