Heating boiler ariston: how to choose the best device for

One of the most important tasks in the design of an autonomous heating system is the choice of equipment that heats up the coolant before it is supplied to the batteries. From this device depends on the efficiency of the climate network, and its efficiency. One of the best heating units on the modern market is fairly recognized as gas heating boilers Ariston, about the features of which we will discuss below.

Brand History

1930 is considered the year of foundation of the Italian company Ariston. Merloni’s engineer was its first head, as well as the owner. The company began its activities in a place called Fabriano, but at that time specialized exclusively in the production of various weights.

After a certain time, the range of manufactured goods was expanded to include gas climatic equipment and cylinders in which liquefied fuel was stored for them.

Over time, the experience of employees and innovative developments in the field of climate control equipment were transformed into the most modern, ergonomic and inexpensive solutions for arranging individual heating systems - Ariston gas heating boilers.

The very name of the brand is translated from Greek as “the best” and speaks for itself. This brand was registered in 1960. Now the trademark, as well as the plant producing gas boilers, is part of a large corporation Merloni TermoSanitari S.p.A., which occupies one of the leading places in Europe among manufacturers of HVAC equipment.

Heating gas coppers Ariston are distinguished by quite democratic price and the compact sizes. And the instruction manual for setting up and maintaining devices is so simple that you can easily do all the necessary operations with your own hands.

In addition, experts appreciate the Italian equipment for other advantages:

• exceptional ease of installation, easy installation;
• compact size, allowing to fix the boilers even in small rooms;
• attractive design that organically complements the interior of the premises;
• ergonomic control panel that allows you to adjust the parameters of the heater in a wide range, ensuring maximum comfort and efficiency;
• noiseless operation.

In addition to the standard burner, heat exchanger and controller, the expansion tank, the safety group and the circulation pump are included in the complete set of most models. That is, by purchasing a gas heating boiler Ariston, you get a complete solution that can be connected to pipes without any difficulties.

The most popular series of thermal equipment of the Italian company:

• Egis;
• Clas;

Note! Regardless of the model, all Ariston boilers are dual-circuit. This means that they will not only heat you in winter, but also supply you with any amount of hot water needed for domestic needs.

Kinds of boilers

Ariston egis

A feature of the Italian gas boilers Ariston line Egis is their adaptation to the domestic lines of gas and electricity. They are well tolerated by high voltage fluctuations in the network and support the operation of the burner even with a very strong pressure drawdown in gas pipelines.

This device is specifically designed to provide heat to dwellings located in harsh climatic zones. The device will function properly at an outdoor temperature of 50 degrees Celsius. In addition, the units are equipped with special condensate collectors. Therefore, you do not have to worry about where to put the moisture generated in the exhaust channel.

Ariston Egis boilers are equipped with two heat exchangers:

• primary - made of copper coated with a specially designed protective layer;
• secondary - made from stainless steel, which increases its strength and prolongs its service life.

In addition, gas heating equipment of this type has additional components and assemblies:

• cleaning filters due to which high quality coolant enters the boiler;
• temperature sensors that change the operating modes of the boiler depending on the temperature inside and outside the house;
• an expansion tank that compensates for an increase in pressure in a closed heating network after its launch into operation;
• a circulating pump for heating, accelerating the flow of fluid, reducing the inertia of the system and increasing its efficiency.

In addition, there are other features of the Ariston Egis boiler line:

1. The presence of a controller that analyzes the composition of the air that is emitted into the atmosphere, and checks the quality of the gas supplied to the burner.
2. The ability to set the minimum power of work, which saves energy, but does not allow the liquid to freeze in the pipes (used in country houses when the owners leave for a long time).
3. The presence of modules of protection against the formation of mineral deposits, the freezing of fluid in the pipes and breakage of the pump.

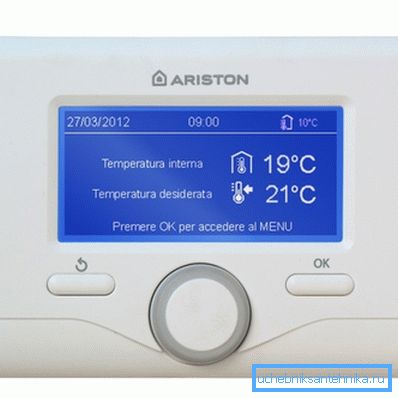

Note! Gas boilers of this line are equipped with an electronic control system that allows not only manually changing operating modes, but also programming the unit operation depending on the time of day, day of the week, and so on.

Ariston clas

This kind of climatic equipment includes powerful enough boilers that combine excellent technical characteristics and ease of use.

There are two types of heaters of the variety under consideration:

• with open combustion chamber (CF);
• with a sealed combustion chamber (FF).

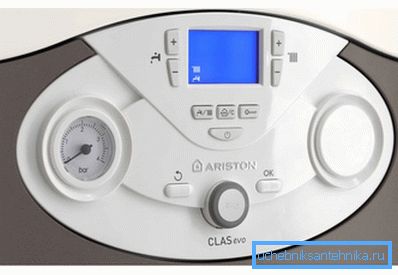

Work parameters are set from the digital control panel. The boilers are hung on the wall using the supplied brackets and perfectly fulfill their task of providing rooms with heat and preparing the right amount of hot water.

A special controller independently changes the power of the equipment and the rate of circulation of the coolant depending on the temperature outside the house. Thus, after turning on the boiler, the temperature in the dwelling increases as quickly as possible for a water heating system.

Special attention is given to the hot water subsystem. The special form of the heat exchanger allows you to ensure its presence in the valve within five seconds after the inclusion of the second circuit.

In addition, special settings support the heating mode so that the water in the hot water pipes does not cool down even within 30 minutes after the heating command is received.

Boilers of this type are specially designed for equipping independent heating systems in urban apartments. They are distinguished by the most compact size and proximity of the inlet and outlet nozzles. All controls and connection elements are located so as to maximize ease of use.

If the heating system for running water does not suit you, you can purchase single-circuit boilers. They are used only for heating, however, it is possible to connect storage boilers. Thanks to these devices at your disposal will always be a sufficiently large amount of hot water.

All Ariston Clas boilers are designed for use in Russia, they tolerate voltage drops and gas pressure fluctuations.

In addition to all the above, the equipment of the Clas line has some more unique features:

1. Easy adjustment. You simply set the switch to the mode you need (summer-winter, weekday-day off, and so on), and the boiler controller itself sets the desired operating parameters of the climatic equipment. At the same time temperature is analyzed both indoors and outside.
2. The sensor, located in the channel that displays the products of combustion, analyzes their composition and, based on the data obtained, regulates the mode of operation of the exhaust valve.
3. For safe use of equipment, the boiler is already equipped with a pressure gauge, safety and bypass (bypass) valves, a thermostat, and so on.

Note! The described equipment also has the “Antiled” and “AntiVoduh” safety modes, which prevent the unit from breaking if the coolant freezes or the system becomes airtight.

Ariston genus

These units are the most functional and richly equipped. They have a special liquid crystal display, thanks to which you can not only set operating modes and monitor various parameters, but also perform boiler maintenance (this can only be done by specialists, guided by the indicated error codes).

Another very important feature of Ariston Genus boilers is the ability to operate on trunk and balloon (liquefied) gas. For the conversion of the burner in the package includes all the necessary parts and tools.

The boilers are notable for their most compact dimensions, but with a sufficiently powerful gas burner. The climatic equipment can be used both for heating small apartments and for heating individual cottages that are quite large in size.

Despite the high power, Ariston Genus boilers are among the most economical. The special control device precisely establishes the necessary temperature of the heat carrier, providing an economical consumption of gas.

In addition to all of the above, Ariston devices of this line have other features:

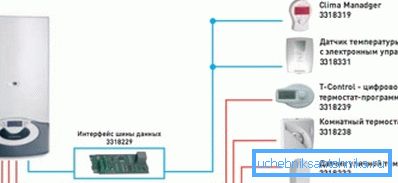

1. Special programmable controller that allows you to set modes depending on external conditions (temperature, time of day, season, and so on).
2. The pump has several speeds, which makes it possible to organize a more intense flow of fluid. This increases the efficiency of the climate network and makes it more economical.
3. Roomy expansion tank that allows you to connect the boiler to heating systems with a large volume of circulating coolant.
4. Mechanical cleaning filters that protect both the inlet to fill the coolant and the internal circulation circle.
5. The control panel of the boiler is completely Russified, which makes working with it as convenient as possible.
6. Special sensors prevent breakage of the boiler in case of ice formation, failure of the water pump for heating, air traffic jams and other troubles.

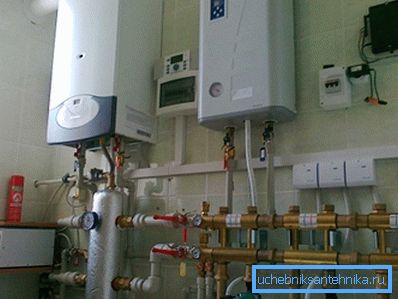

Installation of heating equipment

Before describing the sequence of actions for installation of the device, it should be noted that the installation of gas equipment - heating or any other - can only be carried out by certified specialists after you have received permission from the organization supplying the main gas.

In general, the installation of the boiler takes place in the following sequence:

1. A coaxial angle is established through which combustion products will be released and fresh air drawn in to maintain the burner.
2. The place of contact between the coaxial channel and the material of the wall of the house must be protected with special gaskets, and the pipe itself must be secured with a hose clamp.
3. Then the boiler itself is mounted.. To do this, use the brackets that come with the equipment. Remember that you need to fix the device only on the main wall, since interior partitions, especially plasterboard, will not sustain its weight.
4. Between the back of the boiler and the wall, you must make a gasket of non-combustible material that protects the building structure.. This is a mandatory fire safety requirement.

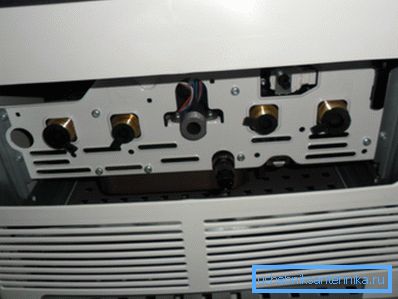

5. Then stop valves are mounted on the boiler inlet pipes through which all pipes are connected: heating. Using taps allows you to shut off the flow of water and dismantle the boiler in case of its breakdown without draining the coolant from the system.

As soon as the installation of the boiler is completed, it can be started. To do this, the system is filled with water, air is removed from it with the help of air valves (Mayevsky cranes), after which the device is turned on according to the instructions. No more complicated manipulations are needed.

Conclusion

Heating boilers brand Ariston, of course, are reliable and high-quality elements of the climate system. However, in order to achieve maximum comfort, you need to find the right radiators, pipes, thermostats and other important equipment.

For more on this, see the video below.
