Heating furnaces termofor and their features

16-06-2018
Heating

Recently, the owners of country houses are increasingly giving preference to autonomous heating devices, which do not depend on gas or electricity, which is especially important for rural areas. Termofor ovens are very popular among such devices.

In this article we will take a closer look at what these devices are and what their features are.

Oven Termofor

Features of furnaces Termofor

General information

What is a stove - everyone knows. It is these simple devices that are the prototype of modern furnaces Termofor.

Moreover, the latter are available in several types:

  • Heating furnaces with a water circuit;
  • Stoves for baths and saunas;
  • Heating and cooking stoves.

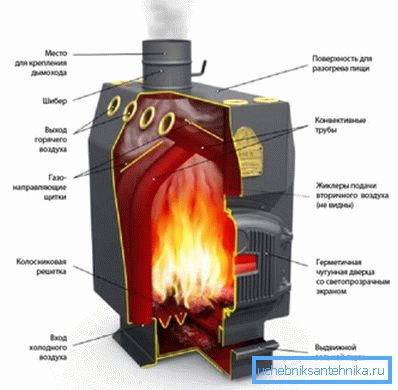

Scheme of the heating furnace

Despite the fact that all these devices have some design features, they work according to the same principle, respectively, have much in common:

  • Work on wood, in addition, as a fuel it is allowed to use eurobriquettes and pellets.
  • Due to the special design, the wood can burn for quite a long time and burn through completely, to the state of ash.
  • Convective pipes pass through the combustion chamber, which provide rapid heating of rooms by the convection method.
  • Due to the large removable grates, the maximum amount of oxygen enters the combustion chamber. In addition, the ash does not linger in the combustion chamber, but falls freely into the ash pan. Thus, the operation and maintenance of their own hands does not constitute anything difficult.
  • The firebox follows the shape of the flame, due to which uniform surface heating occurs.
  • The internal surface of the combustion chamber is trimmed with refractory fireclay, which increases the durability of the product.
  • Due to the special design, maximum fire safety is ensured, as well as heat transfer is improved.
  • All devices have an attractive modern look and compact size. Due to this, the construction can be installed in any room of a residential house or cottage. The only thing is to observe certain security measures.
Thermofor furnaces have an attractive appearance.

Specifications

Depending on the model, Termofor ovens may have the following characteristics:

The maximum amount of heated space 100 - 1200 cubic meters
Machine power 6 - 55 kW
Construction width 37 - 81 cm
Height 78 - 140 cm
Depth 53 - 112 cm
Mass of construction 55 - 300 kg

Due to the wide range of models, you can choose the most suitable oven for certain conditions.

Note! Each stove is accompanied by instructions that detail the rules for operating the device, as well as the process of its installation. Compliance with the instructions is mandatory conditions for durable and safe use of heating devices.

Types of furnaces Termofor

As already mentioned above, Termofor furnaces are of several types. Below we take a closer look at their main features.

Heating stoves

The main objective of these devices is the most rapid and efficient heating of the premises. As mentioned above, it is carried out not only by the method of heat transfer, but also by air convection.

These devices are also called Butakova stoves. It is to this professor-engineer that the development of this design belongs, which turned an ordinary stove into a high-tech device.

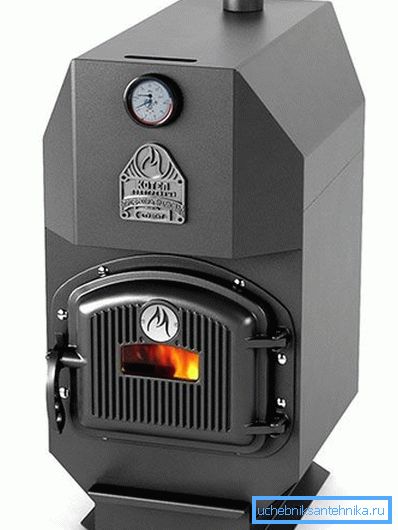

Water circuit apparatus

Water Circuit Furnaces

Heating furnace Thermofor with a water circuit is a boiler that allows you to use water heating in the house. This device is an excellent choice for owners of large country houses. After all, no matter how efficient convection ovens, water heating provides uniform heating in all areas of the house.

The main difference of the boilers from the above stoves is the presence of a water circuit. For the rest, they have all the listed advantages.

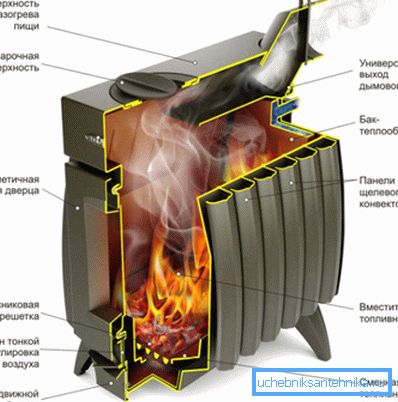

Device heating and cooking stove Termofor

Heating and cooking stoves

As it is not difficult to guess, these units are designed not only for space heating, but also for cooking. Therefore, they are equipped with a cast-iron or glass-ceramic stove, which can be designed for one or two pots.

Today, the most popular is the Yauza model, which has become an indispensable assistant for many summer residents and owners of country houses. Like all Termofor stoves, it has an attractive appearance and can serve as a decoration for the kitchen.

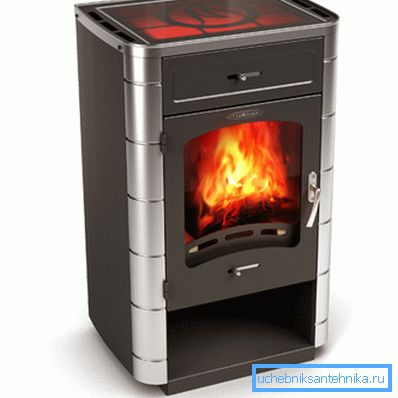

Yauza heating and cooking stove

By design, this model can be called rather a stove, as the combustion chamber is in sight, behind heat-resistant glass.

Note! The length of the chimney for heating and cooking stoves Termofor must be at least 5 meters.

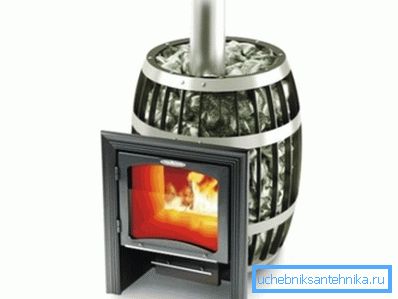

On a photo - Kamenka for a bath

Stoves for a bath

The range of stoves Thermofor for baths and saunas is very extensive. The smallest device is designed for a 4 meter cubic steam room. The most powerful unit is able to heat a bath of 50 cubic meters.

Unlike the models described above, bath stoves have the following elements:

  • The converter housing is designed to protect people in the sauna from infrared radiation.
  • Handle self-cooling system on ashpit and fuel flaps.
  • Design for filling stones and thereby increasing heat transfer.
  • Heat resistant chrome steel that is used in fuel tanks. It increases the design efficiency and heat transfer.

Note! The price of stoves for a bath is higher than household appliances. In order not to overpay, you must correctly calculate the cubic capacity of the room.

Here, perhaps, are all the main features of Termofor ovens, which today can be found on sale.

Conclusion

Furnaces Termofor are the excellent choice for summer residents and owners of country houses. Their main advantage is efficiency and effectiveness. In addition, as we found out, they have many other positive points (see also the article Heating and cooking stoves for the dacha: a universal solution for suburban life).

From the video in this article, you can get some additional information on this topic.
