In order to be able to mount the electric heating of a country house, you need, first of all, to establish uninterrupted power supply, where the voltage will always be at least 210-230V. If we are talking about a water circuit such as radiators or a floor heating system, here it is already necessary to provide pressurized water supply for the timely supply of water to the system.

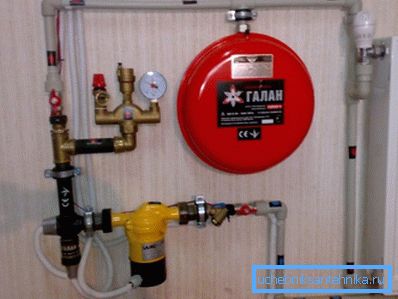

Electric heating at home system

But this also often requires the connection of an electric pump. Simply put, certain conditions are necessary and we (taking into account the fact that they exist) will tell you about heating Galen, about its connection and functioning, and also show a video clip on this topic.

Galen

What it is

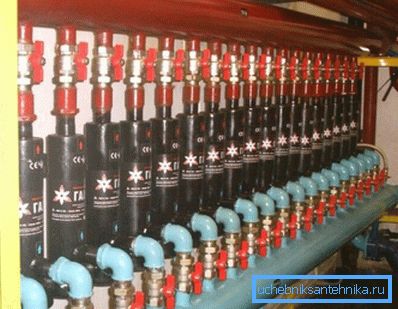

Parallel system connection

It is noteworthy that the boiler itself does not heat the water here, as it happens, for example, with a boiler - the temperature of the liquid rises here due to polar electrodes (the instruction requires grounding - PUE and GOST 12.1.030-81). However, the electric power comes here in the same way, as well as to the heating element.

Only in this case, the network is closed not through the heating coil, but through the liquid, that is, the source of heating in Galanu is water itself. This method of heating is more effective than the heating element - its efficiency is obtained above about 20%.

If you look at the process from a chemical point of view, it can be noted that heating is carried out not by electrolysis, but by ionization. If expressed more clearly, we can say that the current frequency in our network is 50 Hz, therefore, the polarity of the electrodes will change 50 times per second.

Such sharp drops with the same frequency directs ions to one or the other - the movement creates energy, which, in turn, raises the temperature of the water.

It is noteworthy that the leakage of fluid in such a boiler practically does not affect safety - if the tank is damaged and water flows out of it, then there is no conductor for closing the circuit, therefore, the system is automatically turned off. This physical pattern eliminates the possibility of a fire system.

Recommendation. The Argus-Galan liquid is used as the heat carrier; the use of liquids in the system that are not provided for by Galan, even if they are antifreezes for heating systems, the warranty is void. Also, electric heating boilers for a house of this type should not be connected to automation, which is not recommended by the manufacturer.

Options Optimal use of boilers
Hearth 2 Hearth 3 Hearth 5 Hearth 6 Geyser 9 Geyser 15 Volcano 25
Room dimensions (m3) 80 120 200 250 340 550 850
Rated power consumption (kW) 2 3 five 6 9 15 25
Rated voltage (V) 220 220 220 220 380 380 380
The average power consumption with sufficient insulation of the room (kW / h) 0.5 0.75 1.25 1.5 2.5 four 6,6
Maximum current strength of each phase (A) 9.1 13.7 22.7 27.3 13.7 22.7 37.5
Nominal current for automation in electromechanical version (A) ten sixteen 25 32 3 to 16 3 to 25 3 to 40
Copper wire cross section (mm2) 220V four four four 6 - - -
380V - - - - four four 6
The recommended amount of coolant in the heating system (l) 20 - 40 25-50 30 - 60 35 - 70 50 - 100 100 - 200 150 - 300
Internal diameter (DN) of nozzles at the inlet and outlet in the boiler (mm) 25 25 25 25 32 32 32
Unit Length (mm) 250 275 320 335 360 410 460
Unit weight (kg) 0.85 0.9 1.05 1.1 5.0 5.3 5.7

Table of possible selection of boilers by parameters

A warning. Currently, electric heating systems for homes from the company Galan are constantly being modified. Therefore, in the table above, there may be minor deviations from the parameters of the most recent models.

Installation

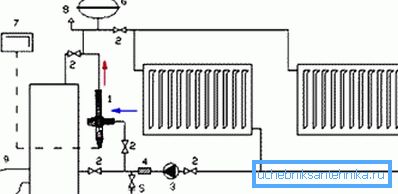

In the photo - a diagram of the standard connection of electric boilers

Numbers mean the following:

  1. Electric boiler (heater or electrode).
  2. Ball valve type.
  3. Circulation pump
  4. Filter.
  5. Valve for the descent.
  6. Expansion capacity.
  7. Automatic control.
  8. Protection group
  • If you want to install any Galan system with your own hands, it means that you will have a double-tube circuit (supply and return) of a closed type. In addition, the installation of electrode boilers can only be done in a vertical position and only above the heating radiators, as, however, this is shown in the upper diagram. In addition, the diameter of the boiler unit and the cross-section of the riser should correspond to an inch and a quarter or 32 mm.
Parallel or modular wiring diagram
  • In cases where a modular or parallel connection of boilers is made, the cross-section of the riser should be calculated individually, for each individual case, depending on the number of modules used. The main pipes or loungers should in any case have a diameter of 25 mm, and the bends to the radiators should be 20 mm (meaning the external section of polypropylene).

Note. The first 1200 mm supply pipes must be non-galvanized, have a diameter of 32 mm, and also have a vertical arrangement. This combination increases the ionization zone, which in turn increases the efficiency of the boiler.

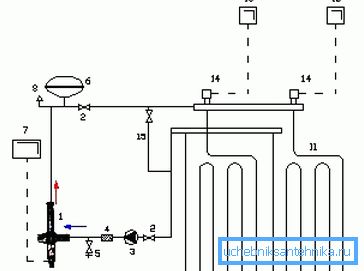

Connection diagram of electrode boilers for floor heating

Explanations:

  1. Electric boiler for heating (heating or electrode).
  2. Ball valve type.
  3. Circulation pump
  4. Filter.
  5. Valve for the descent.
  6. Expansion capacity.
  7. Automatic control.
  8. Protection group
  9. -
  10. -
  11. Heating water circuit.
  12. Automatic control to the contour.
  13. Thermostat.
  14. Bypass with check valve and thermostat.
  • In addition, the electric heating of a wooden house (brick, block) can be carried out with the help of a water heated floor system, where the coolant will be heated by the same electrode boilers. The wiring diagram remains the same as with the TENU unit, but the operating cost will drop significantly due to the increase in efficiency.

Conclusion

It can be said with confidence that the electrowater of a country house with Galan systems is rapidly gaining popularity, despite the fact that to some extent this is still know-how. And this is not surprising, since all good things are very quickly absorbed by the consumer market.
