Repair mixer: how to do on their own and do not call the

11-08-2018
Mixers

The most common problem with plumbing fixtures in the bathroom is leaks. You should not put off repairing the mixer on the back burner - drop by drop, your money will flow down the drain. Indeed, in this way, the cost of water will rise and the numbers on the meter will increase significantly.

As is known, the most common faucet valve and lever type. Fixing them is a little different.

Repairing modern faucets is not a very difficult task.

We repair the pedal mixer

This type of device is now the most common, due to the longer service life and ease of use than the traditional valve counterparts. However, they, though less often, fail. Below is how to fix this type of mixer in the most common cases.

Device leakage

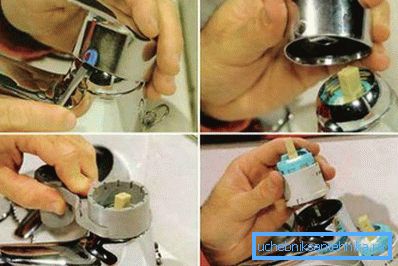

In the photo the process of replacing the cartridge.

In most cases, a leak is formed due to small particles that get clogged between the cartridge discs or the ball and its sleeve.

Here it is necessary either to replace the regulator if it is very worn out or to clean it.

  1. Remove the decorative cap on the lever.
  2. Under it is the mounting screw, unscrew it.
  3. He fixes the handle, now it can be removed.
  4. Under the pedal are the lower and upper nuts. The first one fixes the cartridge. Remove it and change the old regulator to a new one.
  5. Assemble the mixer in the reverse order.

Note! Going to the store to purchase a new cartridge, take the old item as a sample. Such regulators have different sizes, shape, and their price is different.

Low water flow

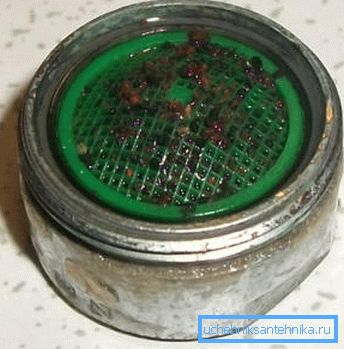

Water is bad because of the clogged aerator.

This problem is most easily removed if, of course, it is not caused by low pressure in the water supply system.

  1. A weak head often causes a clogged aerator.
  2. How to repair the mixer in this case? To make the water flow strong again, you should unscrew the aerator (strainer filter on the spout) and clean its mesh.
  3. In most cases, it is enough to shake and rinse with water. Sometimes the smallest debris and plaque densely clog the cells, then the grid should be cleaned with a needle.

Simultaneous water supply to the gander and shower

The cause of this problem is a failure of the rubber seals of the spool.

They are located in the switch on both sides.

  1. Unscrew the shower hose.
  2. Unscrew the spout.
  3. Unscrew the adapter.
  4. Remove the decorative cap, remove the screw and remove the mixer cartridge.
  5. Remove the spool from the instrument body.
  6. Change the worn gaskets on the spool to new rings.

Note! They are not sold separately in stores. Rarely, they can be bought with it. Spare rings are in the set of the new device or are included in the repair kit for the mixer.

Button divertor problems

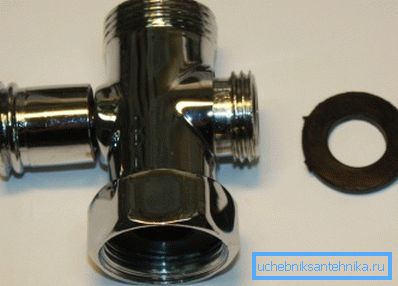

Change the gasket and spring on the diverter.

If it is impossible to switch the water supply from the mixer spout to the shower or to a leakage at the diverter due to a sunken button, therefore, the spring failed.

You can buy it in the store.

  1. Unscrew the button, then the switch itself. Do this with a wrench. Pull up the exhaust rod and remove the element.
  2. Change the worn gaskets and spring to new ones.
  3. Pre-lubricate with technical oil.
  4. Build the diverter back.

As you can see, repairing joysticks is pretty easy.

Valve fixing

The following are the most common failures of such a device and their elimination.

Mixer flow

  1. Pry the decorative cover with a minus screwdriver and remove it.
  2. Next, unscrew the fixing screw with a “plus” screwdriver and remove the valve handle.
  3. Under it is a nickel-plated barrel, do not damage it by unscrewing. To do this, you can use a wrench or gas wrench.
  4. Next, unscrew the crankcase and change the rubber seal on it.

You can purchase a ready-made gasket or cut it yourself from a piece of sheet rubber, about 4 mm thick.

Note! In the latter case, the instruction warns that this measure is only temporary. At the first opportunity, a homemade seal should be replaced with a factory equivalent.

Dripping from the spout

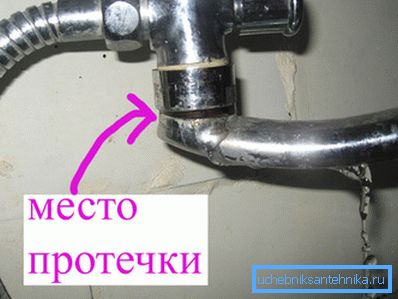

In this case, you need to change the gasket spout.

This problem can have two reasons: a rubber gasket or a conical plug with a defect has failed.

  1. In the first case, the seal should be changed.. The process has already been described above.
  2. If a broken plug is detected, it must also be replaced with a new one.. About repairing hydrobox

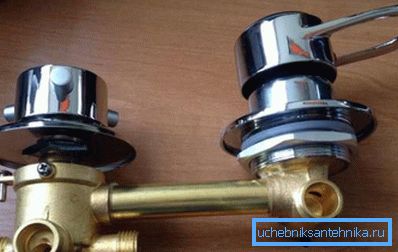

Hydrobox devices are specific, so problems arise with their repair.

Enclosed showers have many advantages.

  1. You can put them, anywhere - even in the living room.
  2. They have their own ventilation system with exit.
  3. Inside it will always be warm, because closed walls make it possible to maintain the desired temperature mode.
  4. There is a huge choice of their complete sets: from the presence of convenient shelves, seats for hydromassage to the availability of radio, Internet, telephone and even TV.

However, the repair of the hydraulic box mixer, its hydromassage nozzles and other equipment is rather complicated. These problems arise due to the fact that the components are not separately available. They must be ordered separately from the manufacturer.

Conclusion

Repair the mixer with your own hands is not so complicated. The main thing is to understand its design.

All modern devices are built on the conjugation of individual nodes. It is enough to replace one of them (out of operation), and the mixer will serve you faithfully again. The video in this article will enlighten you more deeply.
