Wastewater treatment plant for giving

17-07-2018
Outdoor sewage

For many, summer cottages have become a place of permanent residence in the summer. But in order to make life in the country more comfortable, it is necessary to equip the site with all the benefits of modern civilization. One of these "achievements" is sewage. But in this case there is a problem with the treatment of wastewater. In this article we will explain how you can make a sewage treatment plant to give your own hands.

Cesspit

Cesspit from ZHBI of rings

The simplest way would be a sump facility. As a rule, such structures are made without a sealed bottom. As a result, all liquid effluents seep into the ground, and solid waste accumulates in the pit. Then they can be recycled with the help of biopreparations or deflated using a waste collection machine.

Such cesspools are very popular in the countryside. But such structures can hardly be called sewage treatment. In fact, all drains fall into the ground and can harm the environment. In addition, according to the existing sanitary and hygienic rules, the cesspool must be completely sealed.

For the suburban area, where people are rare, such a structure can still be used, but if they live here permanently (even during a warm period), it is better to make a septic tank.

Barrel septic tank

Septic tank more modern device for cleaning wastewater. Today, there are a variety of models on sale. Their installation will help to make almost one hundred percent cleaning. But nevertheless they cost money and sometimes considerable, therefore many masters construct septic tanks on their own. For example, the device from barrels perfectly will be suitable for the seasonal dacha. How to make such a septic tank, we now tell.

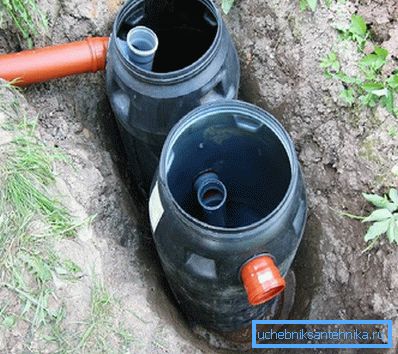

Sample septic tank of barrels

First you should prepare the necessary materials:

  • two plastic barrels with a volume of 250 liters. Metallic is better not to use, as they are highly susceptible to corrosion;
  • geotextiles;
  • sewer pipes from plastic with a diameter of 110 mm;
  • drain pipe;
  • fittings for the connection;
  • rubble and sand.

You can begin to manufacture a septic tank:

  1. The first step is digging the pit and trench for laying pipes. The pit under the septic tank should be 20? 30 cm more barrels in each direction. The depth must be done so that the top of the barrel is below the level of soil freezing, and for the second barrel the bottom must be somewhat deepened to ensure the slope.
  2. After a thorough tamping, a cushion of sand or crushed stone with a thickness of at least 10 cm is placed at the bottom of the pit. At the bottom you need to make fixings to hold the barrels. Otherwise, in spring, groundwater may push empty barrels.
  3. Now prepare yourself barrels. To do this, in the first one, which will play the role of camera No. 1, we cut two holes. One on the lid, the second on the side at a distance of 20 cm from the top edge. There will be three holes in the second barrel. One is also on top, the other two are on the sides (through them water will flow to the filtration fields). The diameter of all holes should be 110 mm.
  4. Now it's the turn of the assembly. We lower both barrels in a ditch and we make their connection. The pipe from the house should enter the top hole of the first barrel. From the side opening of chamber No. 1 the pipe passes into the top cover of the second barrel. From the side openings of chamber 2, we take two pipes to the filtration fields. All connections must be sealed.
  5. Before starting filling it is necessary to fill the septic tank with water. At the same time you can check the sealing compounds. Backfilling is made of sand and crushed stone mixture, layers with rammed.
  6. Above the first barrel, it is necessary to make a manhole and ventilation. This is necessary to clear the chamber of accumulated solid precipitation.
  7. Two pipes from the second barrel must enter the field of post-treatment. For them, also digs a pit, at the bottom of which is laid geotextiles and a layer of rubble. Then put pipes with pre-drilled holes, and everything is filled up with another layer of rubble.

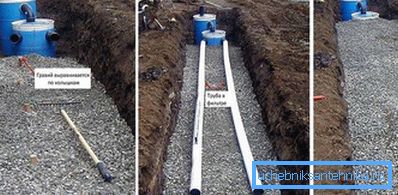

Construction of filtration field

The resulting septic tank of plastic barrels perfectly copes with the cleaning of wastewater from the country house. It is designed for a small amount of sewage. If a lot of people live in the house constantly and all year round, then such a septic tank can not cope with its tasks.

Septic tank from scrap materials

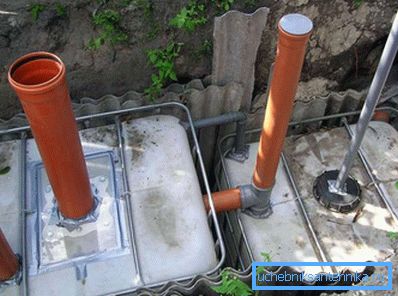

From Eurocubes

To build a septic tank for the cottage can be from other materials. For this use:

  • old car tires;
  • concrete rings;
  • brickwork, for example, from old bricks;
  • concrete structures, etc.

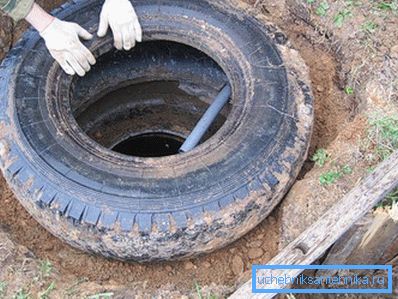

Septic Tire

All these methods will be inexpensive. Also the low cost of all work contributes to the small amount of waste at the dacha. Here people are not so often, only on weekends, so there is no sense to make a large volume of capacity.

Of brick

Whatever material is used, the main thing is to follow some principles. Namely:

  1. The septic tank must consist of at least two chambers, the first of which must be airtight.
  2. It is necessary to periodically pump accumulated sewage from the first tank.
  3. It is advisable to use after-treatment fields.

The best sewage treatment occurs when using biological products with live microorganisms.

Video

This video shows how to make a septic tank of eurocubes:
