160 mm sewer pipe - types and uses

Pipes with a diameter of 160 mm in domestic domestic pipelines are used extremely rarely, but they are very popular when laying outdoor sewer systems of domestic importance. In this article we will look at the types of sewer pipes of a given diameter and the area of ​​their application.

Types of pipes

Metallic

Not so long ago, only metal pipes were used in sewer systems, however, recently their popularity has greatly decreased, which is due to the following disadvantages of these products:

• Large weight - this is due to the high costs of delivery, as well as the complexity of installation.
• Corrosion propensity - the material needs anti-corrosion protection, which must be periodically updated.
• High price - pipes made of polymers are much cheaper, so they can significantly save on laying a sewer network.

The only thing that should be noted is that metal pipe products have high strength and are able to withstand heavy loads. This is due to their indispensability in some cases.

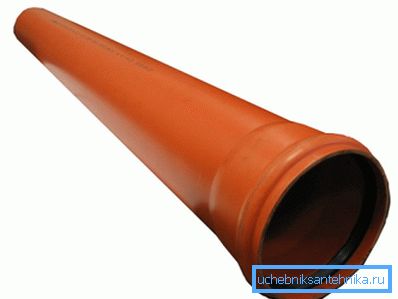

PVC

Recently, PVC 160 pipe has been actively used in modern exterior drainage systems, which has several advantages over metal counterparts, among which are the following:

• No need for maintenance.
• Service life is 50 years or more..
• Easy installation, which is easy to do with your own hands. The connection is made using a sealing ring, which ensures reliable tightness.
• Smooth surface, so that sediment is less deposited on the walls of the pipeline, respectively, such systems are much less often clogged.
• Low weight.

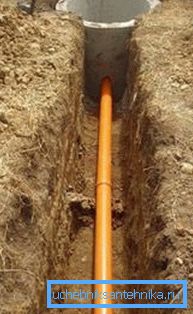

The main purpose of these pipe products is to transport wastewater from buildings to drain wells. Accordingly, such sewage systems are laid in the ground. On them you can let the liquid under pressure, heated to 40 degrees Celsius, or by gravity, heated to 50 degrees.

Note! For PVC pipes, the maximum temperature is 60 degrees, at which material begins to soften.

The maximum pressure in the system should not exceed 0.16 MPa. Since this material is highly resistant to chemical elements, the products can be used for the discharge of aggressive gases and media.

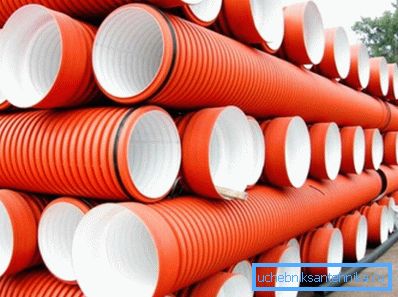

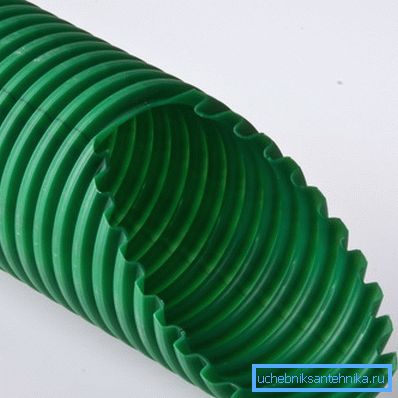

Polypropylene corrugated

These pipe products have become a real breakthrough in the field of laying external sewer networks. Due to the presence of ribs, corrugated sewer pipe has a unique resistance to mechanical stress, as well as aggressive chemical environments.

As a result, they are recommended to be used in the most critical sections of the sewage system, for example, under roads and in other places where there is a great pressure of soil on the structure. In addition to high strength, they have another unique feature - flexibility. This allows you to perform with their use of complex network configuration, containing turns and sharp bends.

Among the other advantages of PP corrugated pipe products are the following points:

• Ideally smooth inner surface, which prevents the likelihood of growths.
• Long service life without repair - more than 50 years.
• Simple installation instructions - when laying the network does not require auxiliary equipment or special equipment.
• Low cost.

We note the existing types of these products:

Note! Sewer pipe products are available in different colors. For external networks used red sewer pipe.

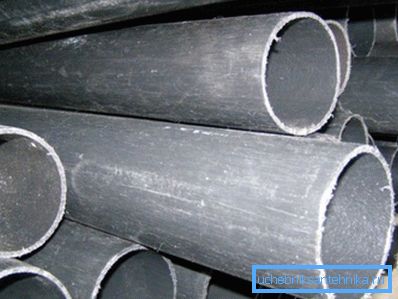

HDPE

The pipe PND of 160 mm with a diameter also found broad application in laying of external networks. PND stands for “low pressure polyethylene”. Its main distinguishing feature is the molecular unbranched chain, which provides a higher strength of the material, compared with medium and low pressure polyethylene.

Among the other advantages of these products are:

• Low weight.
• Chemical inertness - products are not exposed to acid and alkaline solutions.
• Technical pipe PND 160 mm is made from self-extinguishing material, so it is completely fireproof.
• Good flexibility, that allows you to perform complex engineering communications.
• Durability is over 50 years.

Due to these qualities, the field of application of HDPE pipe products is very extensive. In addition to laying networks for drainage, they are used for the installation of external water supply systems, electrical pipe sewers, etc. In addition, there are special drainage HDPE pipes of a given diameter.

Conclusion

The diameter of pipes 160 mm is very popular when installing various external communication systems. Since they are made from a variety of modern materials, they have different properties. Accordingly, the area of ​​their application can also vary significantly. From the video in this article, you can get more information on this topic.
