Diameter of sewer pipes: scope

24-04-2018

Pipes

Installation of sewer systems is a very important process that requires the executors of certain knowledge and skills. This especially applies to the moment of choosing certain materials and their modifications. That is why even a novice master should know the diameter of sewage pipes in an apartment, which he can use and where it is better to use them.

Appointment and marking

To begin with, it must be said that cast iron products and sewage pipes made of plastic have completely different markings in relation to the dimensions. At the same time, professional craftsmen practically do not pay attention to this, since they use products from the same manufacturer, and when adapting different materials, universal adapters are used.

However, when distributing to the apartment, it is very important to observe the diameters of the pipes for sewage, since this affects the functionality of the entire system.

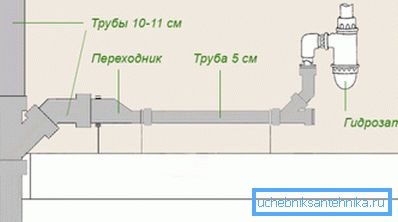

The simplest version of the executive scheme of installation of the sewer system indoors using material of different sizes

Bathtub, sink

For these points of use do not need wide pipes, because through them it is supposed to make the discharge of dirty water without large inclusions.

This is prevented by a grate that stands at the entrance to the drain hole.

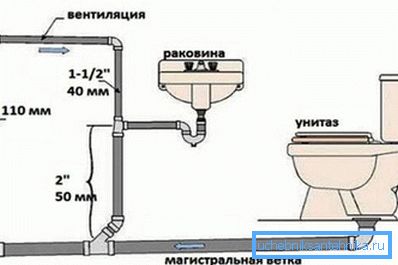

There are pipes with a thickness of 40 mm, but they are used very rarely during installation of sewers and sometimes only for organizing vents to prevent air plugs from forming.

Also, this diameter of the sewer pipe for the sink, marked with the number 50, contributes to the uniform discharge of water. Therefore, when a large drain is engaged, through a 110 mm hole, the system is not overloaded.
It is believed that the diameter of the sewer pipe of this type is 50 mm.. However, it is worth noting that this concept is relative, since everything also depends on the thickness of the walls.

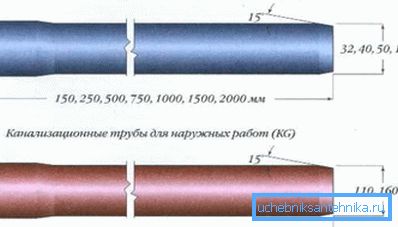

PVC pipe dimensions with indication of all existing options for a specific application

Adapters from 110 to 50 look like a kind of bottleneck, which is inserted into the inside of a large pipe.
There are also special adapters that allow the docking of PVC materials with cast iron.. It is their task to fit two different pipes in size.

Tip! In order not to experience problems with different dimensions or docking systems, professional craftsmen recommend using only the products of one company.

Some manufacturers produce their products in only two diameters, which does not prevent us from producing even the most complex installation.

Toilet

This point of consumption requires the presence of pipes with a rather large diameter, which is marked with the number 100 or 110. At the same time, this parameter depends on the material of manufacture.

However, the installation manual doesn’t particularly emphasize this, since only thin and thick pipes are used for domestic purposes, as beginners often call them.

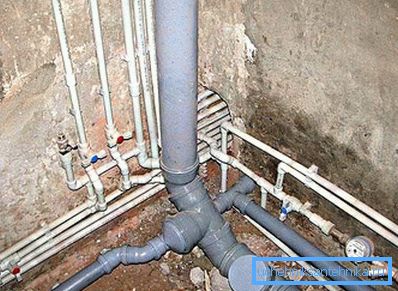

Disposal of the hundredth pipe under the toilet and inspection hatch with a wiring of 50 mm for the remaining consumption points

It is important to mention that such a diameter can be called universal. It is used even when installing street systems, up to wiring for the quarter, but only if the highway will not go beyond the courtyards. Therefore, this material size is very popular with the complete installation of sewage with your own hands.

Tip! It is necessary to mention that there are a lot of different types of sewer pipes with such openings. However, they can be made of different materials and have a special design.

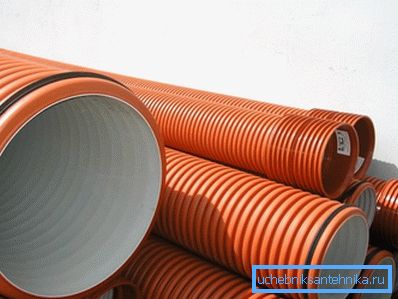

Material intended for exterior work has not only its dimensions, but also a certain shape.

Outdoor systems

Typically, the diameter of the sewer well is one meter. At the same time it is equipped with a mouth of 70 centimeters to ensure normal access inside. However, it must be remembered that these dimensions are permissible only if the inlet pipes do not exceed a diameter of 30 centimeters.

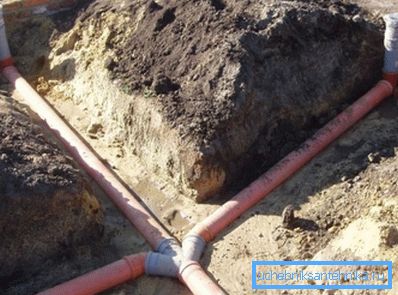

Products intended for outdoor use have a lot of additional properties and are painted in a different color to distinguish them from other products.

It should be mentioned that when designing houses in the city, specialists deliberately share the consumption parameters so as to use standard wells and pipes with a diameter of 110. The fact is that the price of other elements for more productive systems is quite high and does not justify such a cost, since consumption water even near a multi-storey building will not even be able to half use such power.

Tip! It is necessary to install external sewage systems in strict accordance with the developed project. Otherwise, changes may affect performance.

Plastic sewer wells also have a certain diameter, and the design of their tray depends only on the scope and purpose of a particular device.

Conclusion

After reading the video in this article, you can get detailed knowledge of sewer pipes and their parameters. Also based on the article proposed above, it is necessary to conclude that each point of operation requires a certain diameter of the drain system in order to fully function.
