How to connect taps and pipes: exploring ways and

Often, the failure of plumbing equipment causes the owners a serious concern, as they are sure that they will not be able to solve the problem on their own. In fact, most problems can be solved without having special knowledge or skills.

In this article we will look at how to independently connect the valve to the pipeline.

General information

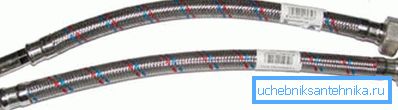

As a rule, the installation of the mixer does not cause difficulties. For example, if you need to connect the sink, flexible hoses are screwed into the tap and the pipe, which, in fact, are adapters from the pipeline to the mixer.

Of course, there are cases when the mixer is connected to the pipeline directly, but to make such a connection is also not at all difficult.

But the installation of ball valves, which allow you to cut off part of the system or turn off any one source of consumption, raises much more questions from home craftsmen. Moreover, the installation process depends on the type of pipeline.

Therefore, below we will look at the most common mounting options.

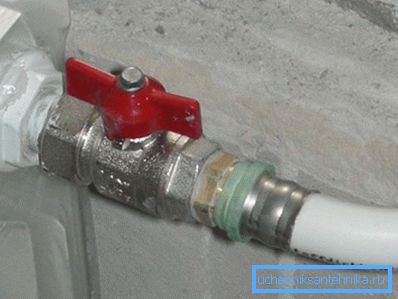

Ball valve connection

Metal pipe

This connection is the simplest, since it does not require special equipment. Therefore, to perform the work you will need only a wrench.

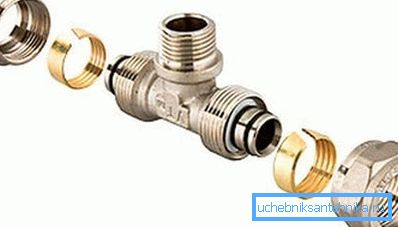

The only crane for metal pipes you need to purchase a special one that has on both sides:

• Collet ring;
• Thread;
• The nut.

Installation instructions are as follows:

• A nut and a tanging ring are put on the metal-plastic pipe. The latter must be passed further along the pipe so that it does not interfere with putting the pipe on the mouthpiece of the part.
• Next pipe until it stops is put on the mouthpiece.
• After that, the tsungovoy ring advances on the area above the mouthpiece and the nut twists.
• Then the connection is made in the same way on the other side.

Note! Cranes must be selected quality, with a working temperature within 150 degrees Celsius and a working pressure of about 60 atmospheres.

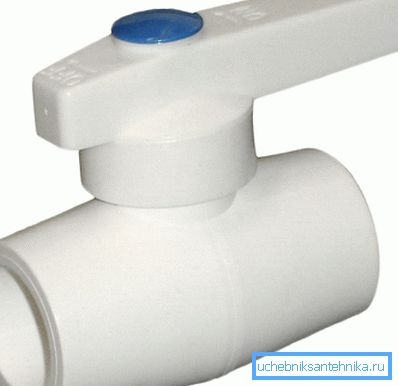

Polypropylene pipe

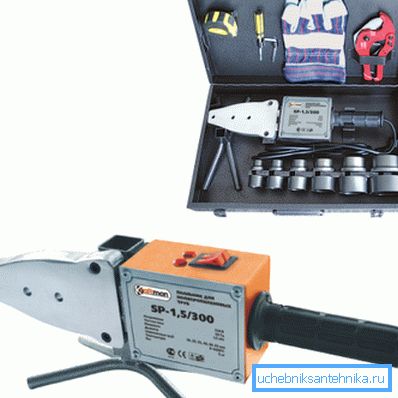

Now consider how to install a ball valve on a pipe made of polypropylene. Immediately it should be noted that to perform this work you will need a special tool - a welding machine for soldering plastic pipes.

Tip! The price of a soldering iron for a rather high, so it is impractical to purchase it for a one-time use. In this case, it is better to rent a tool.

Work is performed in the following order:

• First of all, it is necessary to connect the device to electricity and heat it to the operating temperature.
• If the pipes are reinforced with aluminum, then at the junction it is necessary to remove the top layer of polypropylene with reinforcement using a special tool - stripping.
• When the soldering iron gets warm, the pipe and valve must be connected to the soldering iron nozzle.
• After softening the polypropylene, the parts must be removed from the nozzle and docked with each other.
• When the plastic hardens, you can do the same on the other side.

I must say that not all fittings and taps for polypropylene pipes are connected to the pipeline by soldering. Some of their types have a threaded connection; in this case, an adapter is welded to the pipe, into which a metal threaded sleeve is welded.

Note! When mounting with threaded joints, it is necessary to wind the sealing tape fum-tape on the thread, which will ensure the tightness of the joints.

PVC pipe

Valves for PVC pipes are fairly simple to install.

The procedure is performed in the following order:

• The nut is first put on the pipe.
• Then a retaining ring is attached to the edge of the pipe.. To do this, you can use cold welding or special compositions for the installation of PVC pipe.
• After the retaining ring is glued, it is necessary to screw the nut with your own hands, without using any tools.
• Further, the second end of the valve will also dock with the pipeline.

This process is complete. If the procedure was performed correctly, then the result should be a reliable and tight connection.

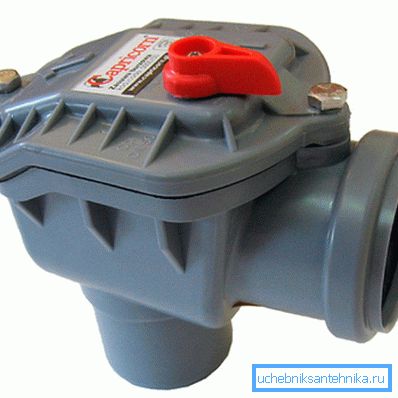

Installation of closure mechanisms for sewer systems

Many people do not know that it is possible to install a faucet on a sewer pipe, and why it is needed at all. However, this device is very useful because it allows you to shut down the system, for example, for the duration of the work.

Most often, the valve is combined with a check valve, which does not allow drains to flow in the opposite direction. This is true for residents of apartment buildings, as the valve prevents flooding, if sewage system clogs.

Installation of valves and fittings is performed in the same way as any other elements of the sewer system, i.e. bell-shaped way. Sealing is carried out using rubber seals and sealant.

Here, perhaps, are all the main points of connecting cranes with various types of pipelines.

Conclusion

As we found out, you can install a crane yourself on any type of pipelines. However, if the pipeline is polypropylene, you will have to use a special tool, however, it is quite simple to work with it (learn here how to bend a profile pipe).

From the video in this article, you can get more information on this topic.
