Profile pipe 20x20 - a combination of grace and strength

Corrosion-proof pipes with square section draw attention with their increased resistance to aggressive media and mechanical loads. The ergonomic design allows you to save space during installation and create a variety of sustainable designs.

Details of the profile pipeline

The profile stainless pipe 20x20 differs primarily in its physical and mechanical properties. They have found their application in the chemical, paper, pharmaceutical, energy and automotive industries, agriculture and advertising. The quality of rolled products directly depends on the observance of production technology, quality control, etc.

Normative base

Given the corrosion resistance and method of production, several standards can be distinguished for a square stainless steel pipeline:

• the main documents can be considered as GOST 8639-68, GOST 8639-82 and GOST 30245-2003. They contain basic information on dimensions, tolerances, quality control, weight, etc. Using these documents, you can also find out the approximate weight, for example, the weight of a 20x20x2 profile pipe is equal to 1.075 kg / linear gauge. m;

• GOST 11068-81 - since the pipeline is made of steel resistant to corrosion, it formally falls under the requirements of this document. The only thing that can confuse is the constant mentioning of the term diameter in the text of the document, with respect to the square section it looks ridiculous;
• Depending on the production method (hot or cold rolled), you can use GOST 9940-81 (hot-rolled pipe) and GOST 9941-81 (cold rolled).

How is the profile of the pipeline

Corrosion-proof profile pipe 20 20 2, as a rule, is made of structural austenitic steels (ductile anticorrosive) according to DIN 2395.

In this case, 2 production methods can be used:

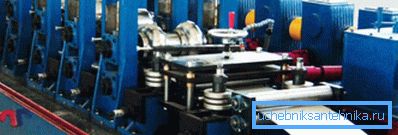

• welded. The production instruction looks like this: an infinite steel tape of constant width is cut, then it is bent into a circular cross-section pipe (the edges are not welded yet), then the welding, stripping of the weld is performed. The desired transverse profile is given by passing it through the rolls. In this case, internal stresses inevitably arise in the metal; for their removal, the product heats up;

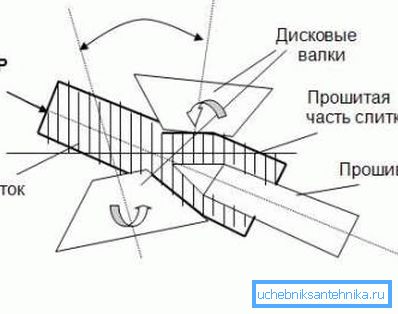

• in the case of seamless technology, the workpiece is first flashed and then skipped through the rolls to give the desired cross-sectional shape. In this case, round seamless pipes can serve as raw materials for the production of a square pipeline. This method of production makes the final product more expensive compared to the use of welding.

As for how much the profile pipe costs 20 to 20, then everything depends on the production method used. Thus, a conventional square pipeline with a section of 20x20x1 will cost 221 rubles / 1 m. For large scale construction, it is more convenient to operate with the cost of the 1st ton of rolled steel, in which case the cost will be 382800 rubles / 1 ton (the cost is for 08-12Х18Н10 steel).

Types of weld welding

The production of a square profile pipe of stainless steel takes place in 2 ways. In the first case, strips (blanks) are used, from which pipes are drawn. In the second, products are welded from sheets of metal.

There are several types of welding:

• TIG (tungsten electrode in an inert gas without additives);
• plasma with TIG;
• high frequency current;
• laser;
• electron beam.

The profile pipe 20x20x2 has a wide scope of application, which will directly depend on the type of weld. Welding quality control is carried out in accordance with GOST 3242 - 79 and GOST 30245-2003.

Note! The price of a pipe with a welded seam made by high-frequency currents is 10% lower than that of analogs with TIG welding. At the same time, the strength of the weld is at the same level.

Surface for every taste

Profile pipe looks very aesthetically pleasing due to the surface, which is:

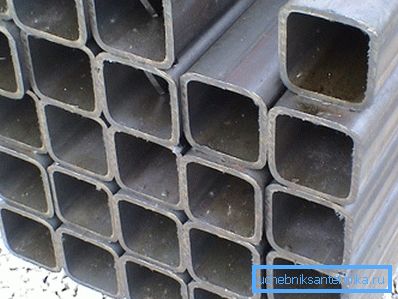

• matte (Matt, Mill finish);
• brushed. The degree of processing has several levels up to the smoothest and has the designations Satin 180, 320 or 400 Grit;
• mirror, which depends again on the degree of polishing (Mirror 400 or 600 Grit).

Foreign marking of pipe surfaces made of AISI steel is somewhat different:

• 2B - matte;
• VA - mirror;
• 4N - polished.

The quality of the surface finish is not affected by the strength indicators. If all the work is done by hand, then the choice from the proposed options should be made rather on the basis of whether the pipes will be visible. If they act as an element of the interior, the surface should be selected taking into account the decor of the room.

Scope of the profile pipeline

A small section does not allow it to be used as load-bearing elements under severe loads. But the stiffness of the square section is sufficient for the perception of loads of average magnitude. The advantages of a square pipeline should include a relatively small weight, for example, the weight of a 20x20x2 profile pipe is about 1.175 kg / bar. m

Note! The weight of the pipe in the tables is averaged, but in reality it depends on the density of the material. To accurately calculate the weight of the pipeline, you can use special calculators.

With regard to specific examples of the use of a square pipe with a small section, we can give the following examples:

• for the production of furniture (primarily school and in various public institutions);

• in the construction of fences of different types - as a frame. In this case, the load on the metal is small and you can use small sizes;

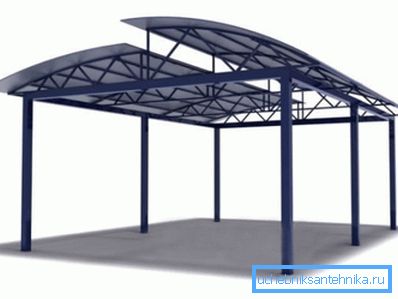

• for the construction of various sheds, during construction in a temperate climate, it is necessary to take into account the effect of snow load and the weight of 1 meter of a shaped pipe 20x20x2 (1.175 kg / 1 m);

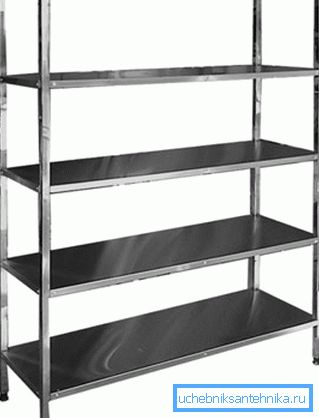

• when decorating the interior of the room, square tubes can be used to build elegant shelves and racks.

Summarizing

A square pipe of small cross section made of stainless steel has a number of important properties. The most important thing is that in addition to high strength and rigidity, it also has an excellent appearance, and corrosion resistance allows it to be used in almost any conditions (see also the article Pipe 60x40 mm - features and weight).

Due to this, such a pipeline can be used both in the interior of the room, and in the construction of a frame for light structures. The video in this article shows an example of using a profile pipeline as a frame for a fence.
