Twisted pipe: production and scope

11-10-2018
Pipes

Currently, there is simply a huge number of different products that are made from pipes. They may have a distinct appearance, purpose, and even material. At the same time, the twisted pipe occupies a separate niche in this area, since it implies an almost complete change in the original preform.

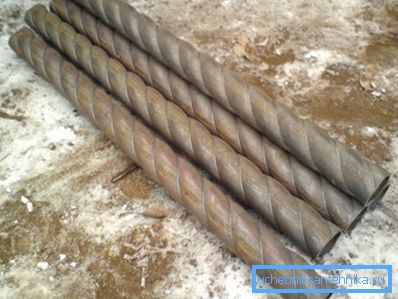

Amateur photo of similar products without coating

Features of production and use

To begin with, it must be said that such structures are made of products with thin walls. In this case, the twisted pipe is characterized not by the way of creation, but by the appearance. Therefore, to work you need a completely ordinary material and appropriate equipment.

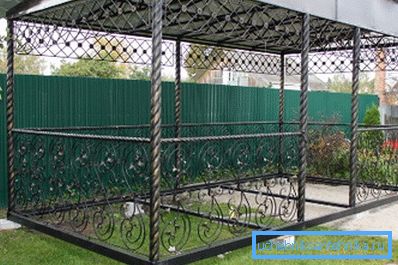

The ready arbor created with use of products of this type

Manufacturing

First of all, it is necessary to say that there are several different ways to create these types of products, and they all depend on the availability of appropriate equipment.

Therefore, if you create a twisted pipe with your own hands, then you need to select in advance all the necessary devices and decide on the most convenient method.

These materials may have different shapes and structures.
  • In fact, the principle of creating such materials is to apply a kind of screw notch on the workpiece.. At the same time, this procedure can be performed both on cold and using special methods of heating pipes in order to soften the base.

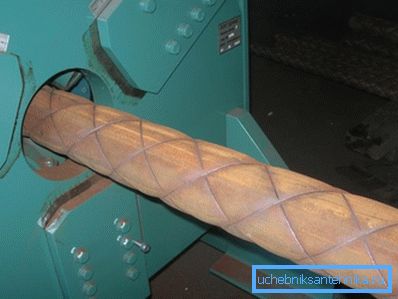

Special machine for creating such a notch
  • It’s quite simple to create a machine for making a twisted pipe, but you need to take into account certain parameters and functions. However, most experts tend to special broach, which has three or more rolling shaft, deforming the workpiece in certain places, if it is fed under rotation.

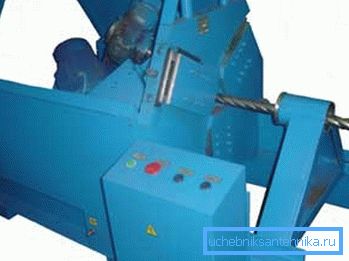

Another type of such equipment with implemented automatic feed
  • Other masters use a special workbench on which the pipe itself is mounted.. After that, the instructions for manufacturing require heating the billet, and then using the forging hammers of a certain shape, apply the corresponding notch.

Tip! For the manufacture of different forms of coils usually use additional nozzles or inserts. Their appearance depends only on the personal preferences of the master, based on the desire to get a certain appearance.

Making a similar design using the forging method

Application area

A twisted decorative tube is usually created, rather than a fancy-shaped supporting structure. The fact is that after such treatments the technical characteristics of the material vary greatly, and it can only be used as an ornament.

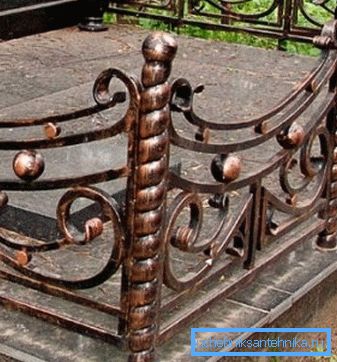

To improve the appearance and protection against corrosion, all such structures must be broken with special compounds.

It is worth noting that in order to obtain a better appearance, a layer of various materials is applied to the finished product. Their choice depends on the desire to get a certain effect or to choose a specific interior. However, the price of some of these dyes or enamels is quite high and causes additional costs.

Some types of designs using these tubes are true works of art and are very expensive.

If the product is created by forging, it is usually crowned, and gold or silver pipe paint is applied to certain areas. Also, chrome or nickel coating looks good on such materials, but such works are very expensive.

Tip! Sometimes it is much easier to purchase such a factory-made design than to create it yourself. This will help save time and money.

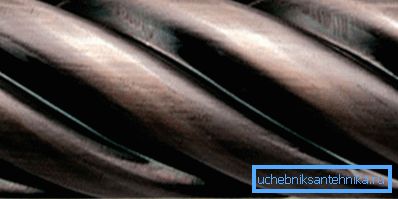

The quality of such products is determined by the depth of the notches and their uniformity, which also affects the cost of the final product.

Recommendations of the masters

  • If you make the manufacture of a twisted pipe with your own hands, then it is better to first test the existing equipment with a small trim, and only after achieving the desired result, you can begin to work. This will determine the optimal parameters and modes.
Some variants of such elements are created entirely by hand and used for the manufacture of decorative structures.
  • The thinner the wall of the pipe, the easier it will work with it. However, forging you can use almost any available products.
  • Before you start cutting, experts recommend creating a markup. So you can not only get an idea about the final appearance, but also simplify the rest of the process.

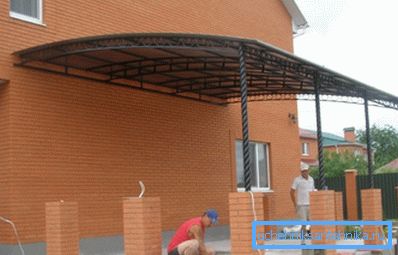

If it was decided to use such a material to maintain weight, then a pipe of smaller diameter should be inserted inwards so that the loads on them are evenly distributed.

Conclusion

After studying the video in this article, you can learn more about these types of materials and methods for their manufacture. In this case, based on the text above, it is necessary to conclude that this work may require the presence of certain skills, especially if the product is created by the forging method.

It should also be noted that the twisted pipe should not be used as a supporting structure. Lines of tension are created in it, and the strength of this material drops dramatically.
