Water pipes for giving - how to choose and how to build

06-03-2018
Pipes

Everyone who has a suburban area wants to make their stay as comfortable and convenient as possible, and having all the necessary communications plays one of the main roles. To select high-quality water pipes for outdoor plumbing in the country is a simple task, however, the reliability and durability of the system depends on the correct solution.

That is why we will pay close attention to this issue in this review.

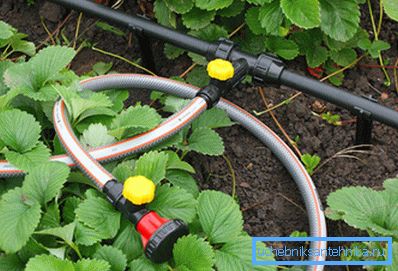

In the photo: pipes for summer plumbing must meet a variety of requirements.

The times of steel structures are long gone, and when considering what better water pipes in the country, this option is not even considered. You will have to choose between plastic or plastic products. The first option is somewhat less common due to the high price, but the second is very popular due to a number of factors that we will discuss below.

The advantages of plastic pipes

To begin with, you should consider the main advantages of plastic, so that you can be sure that this option is indeed the most optimal at the moment:

Durability Due to the fact that the materials used are absolutely not afraid of water and are not susceptible to corrosion, the service life of such products is very, very long. They are not inferior to metal, and in many ways even surpass it.
Low cost With all the obvious advantages and advantages of the price of plastic pipes is low, which is why they are chosen by both those who value quality and those who try to save
Excellent physical performance The strength of products meets the highest standards, they are resistant to deformations and are able to withstand even quite strong blows without compromising the integrity of the system. At the same time, the weight of the pipes is small, which facilitates their loading and transportation.
Security The material meets the highest standards of bacteriological safety, it also does not emit any harmful substances into the water, which is a great advantage. Due to the smoothness of the walls they do not form deposits, which can also develop pathogens

Tip! Be sure to ask the seller documents certifying the quality of products, as there are cases when the production uses cheap raw materials that do not meet the requirements of sanitary and hygienic safety.

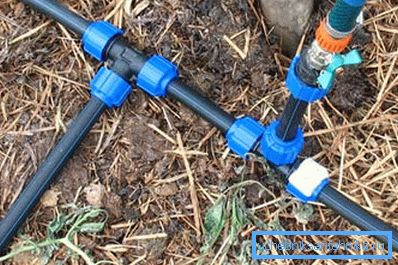

PVC pipes for plumbing in the country are the best fit, their weight is small, and they are not afraid of damp

Types of communication systems and features of their laying

It is worth noting that for laying the pipeline two main options are used, we will consider each of them in more detail.

Types of pipes

If you have not yet decided which pipes to choose for the water supply system in the country, you will have to choose between HDPE and polypropylene:

  • Polypropylene products are distinguished by reliability and durability, their connection is carried out by means of a special welding machine, which is not very convenient for the construction of temporary structures laid on the surface of the earth.. The fact is that such communications are nonseparable, and you will not be able to remove them for the winter.

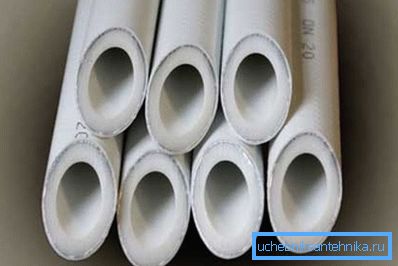

Polypropylene pipes - one of the most popular on the market
  • Most experts when considering the question of what pipes are needed for the water supply system in the country, tend to choose the option of products from HDPE. This option is resistant to adverse external influences and, very importantly, is not afraid of even frost: when the water inside the pipes freezes, they simply expand, and after thawing they take on their original shape.

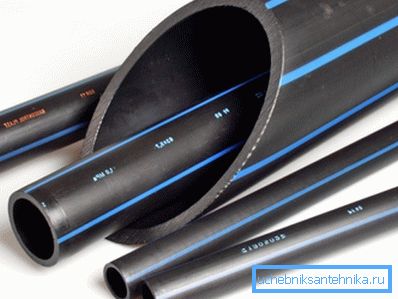

HDPE pipes can have the most different diameters, you will find the optimal solution for any conditions

Installation of summer water supply

This option is different in that the gasket is carried out on the surface of the earth or with a small depth. Naturally, such communications can only be used in the summer period, hence the name of the structure.

Works are performed as follows:

  • First of all, the design of the future system is made, it is very important to plan the layout of all the elements.
  • Next, you need to make a tie-in into the trunk metal pipe, this can be done either by welding, or by installing a special device - a clamping sleeve for the pipes, then it will be possible to do without welding.
  • It is very simple to lay pipes for water supply in the country with their own hands, because special fittings are used for the connection, with the help of which all elements are securely fastened to each other. No tools are needed to use them, everything is done manually, the installation instructions are so simple that even a teenager can handle the work.

Note! When cutting pipes, the chamfer should be removed from the ends, this will prevent damage to the clamping rings in the coupling sleeves. The pipe is inserted as far as it will go, after which the union nut is clamped by hand with moderate force.

Fittings for HDPE pipes are very diverse, it will allow to implement any design solutions.
  • The final stage of work is the fastening of the corresponding conclusions on the pipes: taps, couplings, watering hoses, and so on. You can install any assembly through a special fitting.

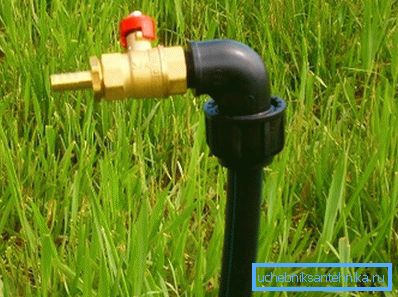

You can bring a faucet for watering right in the middle of the garden

Installation of stationary system

This option is different in that the communications will be operated year-round, if you do not need to think about which pipes for the water supply system at the dacha will fit with such a system. The options are the same, so all of the above is true for this type of communication.

The installation itself is also similar to the summer version, but there are a few principal notes on the system design:

  • The depth of the gasket should be below the level of soil freezing, if this is not possible or problematic for any reason, then a heating device will be needed.
  • Heated water pipes in the country by using a special cable that automatically adjusts the temperature in a particular area depending on the degree of cooling.
Before laying in the trench, the pipes are wrapped with a special heating wire and covered with insulation to preserve heat.
  • The bottom of the trench needs to be reinforced and leveled with gravel or rubble, the pipe is covered with a layer of white sand and only then can the ground be poured.
  • Pay special attention to the entry of the pipe into the house, this place is most susceptible to freezing, so it must be equipped with additional heating and insulated especially carefully.

And finally, if you need to repair the water pipe at the dacha due to damage to any section, you can simply cut it out and insert a new one with the help of couplings.

Conclusion

It is very simple to build a water supply system in the country, especially if it is a summer option. The stationary solution is also quite capable of those who do not have construction experience, in order to understand the topic even better, watch the video in this article.
