How and where the sink is mounted without a hole for the

26-06-2018
Sewage

When you come to choose a sink, you can be offered both a model with a hole for the mixer, and without it. For example, recently appeared metal products of symmetrical type, which can be installed on the right or left side.

There are also ceramic bowls, for which such a hole is simply not provided. Below in the article we will consider both options.

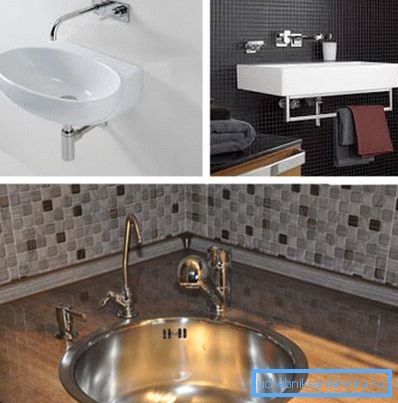

In the photo - various types of sinks and sinks without a tap hole

Need or do not need a hole in the sink under the mixer

In the first case, the manufacturer assumes that the user will independently make a place for the required size of the mixer. This, at first glance, is convenient, since, due to the possible discrepancy between the parameters of the tabletop, it is not always possible to select the necessary sink. For example, most stainless steel sinks are available with a hole O32 mm, at the same time, the tap often has O34 mm or more.

And what about those who decide to purchase a ceramic model? Make it yourself? There are two options - ask at the point of sale to make a hole for the selected tap or install it separately. Below you will learn in more detail about such modern sinks.

Note! With your own hands you can drill a hole only in a stainless steel sink, it is better not to take up ceramics. The material may deteriorate, going cracks.

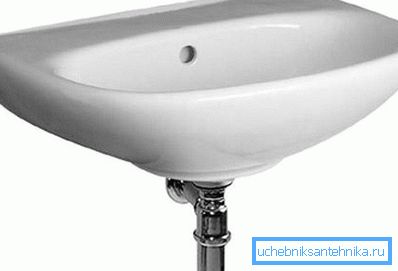

Washbasin without hole for Jika Zeta mixer

Installing the faucet in a stainless steel sink

You ordered a sink in the store, you brought it home, but there is no room for a mixer in it?

Do not despair, there are enough proven ways to help solve this problem.

Tip: the output should be done only on an uninstalled plumbing.

  1. Turn the sink upside down and make sure that it rests on the table surface with all edges.
  2. Buy or rent a special cutter that is designed specifically for this kind of work.
  3. Take an electric drill and make an initial hole with an O10 mm drill bit.
  4. Insert the cutter screw and tighten it with two keys. The metal will be squeezed from both sides like a press.
  5. The diameter of the hole obtained depends on the type of cutter used.

Tip: when it is not possible to purchase special equipment, you can use the tools at hand.

Consignment sink without hole for stainless steel faucet

For the manufacture of a communication outlet from a metal stainless sink of a suitable diameter without the use of devices, prepare:

  • hammer;
  • punch;
  • round file;
  • mounting tape;
  • marker.

Instructions for making the following:

  1. Take the mounting tape and make a circle of the desired diameter.
  2. Attach it to the selected location to install the mixer and circle with a marker. So you can then cut out a smooth exit.
  3. Punch through the center of the circle by lightly tapping the core, this will be the initial hole.

Tip: It’s best to use a power drill.

  1. Use a round file to expand the opening to the marked bounds.. Know that it is not enough just to drill the exit for the mixer, the edges will necessarily turn out to be curves, and then they will take a lot of time and effort to align them.
  2. Sand carefully the edges of the saw cut, and only after that we recommend to start installing the crane.

Tip: process the edges of the fresh cut with a sealant, then the metal will not oxidize.

  1. Reinstall the shell after the sealant hardens.

Ceramic sinks of the new form

Now consider a slightly different model plan. They have only one drain hole, and there is no overflow. You will learn how in this case the mixer is installed and where the water goes when the sink is refilled.

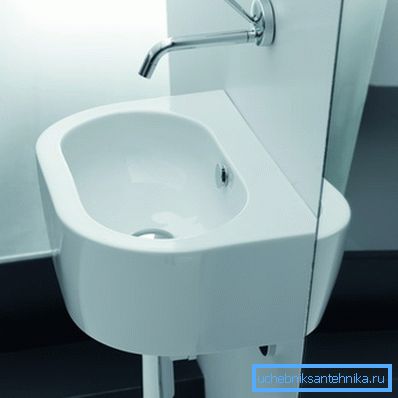

Sink for a bathroom without an opening under the Kerasan Flo mixer
Design Sink today is important, and sometimes the main element of the bathroom interior. It is already not just a sink - a utilitarian sanitary device, but a design object that carries a certain message.

In this case, the functionality is not central, so it fades into the background. Although, is it convenient to use for washing a small dish O 300 mm or a flat pallet, slightly recessed into the tabletop? Splashes are flying everywhere that have to constantly wipe.

But I must say that not everything is so bad, many designer models combine not only decorative, but also functionality.

Sink Among the sinks that do not have a hole for the mixer, mostly overhead and embedded in the worktop model. Less often - shells with pedestal and hanging. They all look very stylish, since the integrity of ceramics nothing violates the integrity of ceramics. Their price can be quite high.

So that they corresponded to the XXI century, their shape had to be changed. Though seemingly, on the contrary, it became quite simple, in fact, everything became more complicated. There are so organic models that there are no holes in them at all, except for the drain, which can also be completely masked.

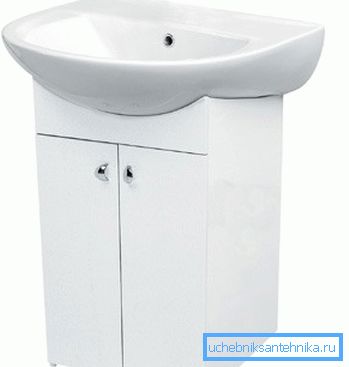

Sink without a hole under the faucet with a cabinet of the desired size and design

Tip: if you want to achieve the integrity of the composition, choose modern sinks with suitable worktops and side tables.

Mixer

In this case, it is installed separately from the sink. Today you can often find washbasins with one, two or three holes for mixers of different types. However, valves and levers that stick out from the side do not add beauty to the cup.

In this case, the designers decided to move away from the familiar concept and came up with a fundamentally new model - without going under the mixer. It is now installed separately, and it can be wall-mounted, desktop or outdoor. A characteristic feature of the device is an elongated spout.

Designer washbasin without faucet hole

Tip: you are unlikely to find in the sale of expensive ceramic sinks with a mounting hole for the mixer.

Equipment manufacturers

Most likely, in our country you can buy a sink without an outlet under the mixer from manufacturers from Europe.

They are produced by leading plumbing companies such as:

  • Antonio Lupi;
  • Agape;
  • Axor (Hansgrohe);
  • Cielo;
  • Catalano;
  • Flaminia;
  • Ideal Standard;
  • Hatria;
  • Villeroy & Boch;
  • Regia.

Most of them have cooperation with well-known designers who are constantly working to create new, more advanced forms.

Sink in the bathroom without a hole for the water-type faucet

Conclusion

We considered two options of sinks without seats under the mixer - from stainless steel and ceramic. You have learned how to properly make a hole in the metal kitchen sink, as well as where to install valves for designer products today.

Choosing beautiful, functional and unusual sinks you can transform the interior of the house and apartment. The video in this article will provide an opportunity to find additional information on the above topic.
