Septic topol: principle of operation and installation

The question of organizing the proper sewage system of a private household is quite important. If at this stage to make mistakes in design or installation, it is fraught with considerable problems in the future. However, it is possible to avoid these nuances - to purchase the finished product. As a good example of such, consider the septic tank Poplar. In the article we will give instructions on the installation of a septic tank Poplar, and also tell you about its principle of operation.

Description

To begin with, it is necessary to give some general definition of a product and to understand its functional purpose. The septic tank is part of an autonomous sewage system designed for the accumulation and primary treatment of sewage. Inside the septic tank decomposition of organic elements occurs, the liquid passes several degrees of purification and enters the drainage system, and then into the soil.

In the case of independent manufacture of a septic tank, a violation of technology is possible As a result, instead of normal operation, the product will rather bring problems.

Design

The purchase and installation of a septic tank Poplar eliminates the possibility of defects, and installation work is simplified to the maximum. To simplify understanding of the issue, it is necessary to conduct a general review of the design, due to which the positive aspects of the product will become apparent.

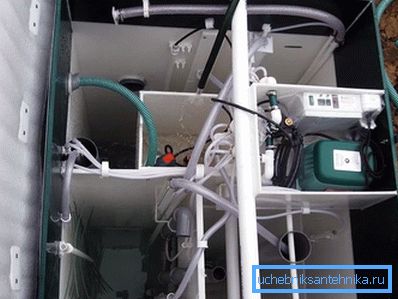

Septic Topol is a technological device, consisting of several separate sections, combined in one building. The septic tank consists of the following elements:

• A camera that performs the functions of an initial sink receiver.
• Aerotenk. This structural element is intended to enrich wastewater with air, as a result of which there is an intensive decomposition of the organic components of the effluent.
• Secondary sump. Inside this section, the main processing and sewage fragmentation takes place.

The design of the septic tank provides for the air supply system, the pumping of liquids from the chamber to the chamber, as well as the system for the removal of purified water from the reservoir. The system is almost autonomous and requires only the supply of electricity and water discharge, but in some models the water is removed by gravity.

The lineup

It is important to note that the septic tank Topol can be supplied in several trim levels. The model range is quite extensive, and there are plenty to choose from. At will, the septic tank can be equipped with systems of compulsory pumping out of the purified water. In addition, the product may have a different volume of tanks, which must be selected based on the need.

Installation

If the question of choosing a model is resolved and a septic tank is acquired, you can proceed to work on installing it. It should immediately make a reservation that the work will not be particularly difficult, but will require the involvement of several people, as well as the use of special equipment.

• First you need to decide on the place of installation of the septic tank. Here there is a rule according to which there must be a distance of at least five meters between the wall of the house and the wall of the septic tank. At the same time, do not place the septic tank too far.
• Further, on the basis of the dimensions of the product, a foundation pit is dug, which is necessary for installation. Work can be performed both manually and using an excavator. In addition, it will not be superfluous to strengthen the walls of the pit with wooden or plywood shields. So, the soil will not put pressure on the walls of the product, which will allow not to worry about its premature failure. The bottom of the pit must be sprinkled with sand with a layer of at least 30 cm and compacted.

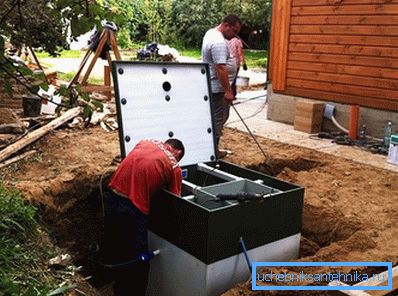

• After the pit is ready, a septic tank is placed in it. As mentioned above, the product is made in one case, and therefore for its movements you will need to hire a crane. It should be noted that for the correct operation of the system, the device must be installed strictly horizontally. It is better to follow this immediately, since if the equipment “leaves”, it will be difficult to change the location of the septic tank, to put it mildly.
• After installing the septic tank itself, you can proceed to connecting the inlet and outlet pipes, the laying of which requires the manufacture of special trenches, which should be taken care of in advance.

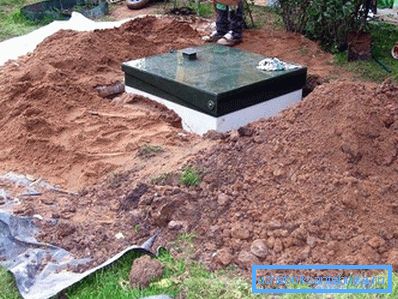

• Upon completion of the installation of a septic tank, all the cavities between the walls of the pit and the walls of the product are filled with sand and compacted. So that the pressure of the sand on the walls of the septic tank was not excessive, water should be poured in about 2/3 of the tank volume.

At this work on the installation of a septic tank Topol can be considered completed.

To perform the first run and configure the mechanisms and systems, it is better to contact the specialists.

In conclusion, we can add that the septic tank Topol has a number of advantages, including reliability, ease of installation and high-quality work. Therefore, it is not surprising that the device has mostly positive feedback from end users.

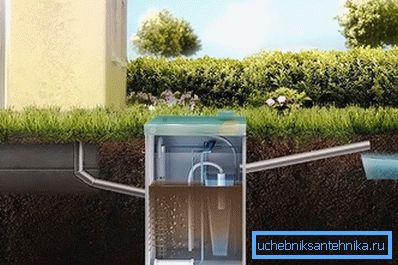

Video: the principle of the septic tank Poplar

In the provided video material, you will get acquainted with the principle of operation of the septic tank Poplar:
