Shower cabin 100 by 80 cm: modifications and installation

Immediately it should be noted that the dimensions of the shower enclosure 100x80 cm make it possible to install it not only in private houses, where there is more space, but even in separate bathrooms of small-sized apartments of high-rise buildings. In this regard, such barriers for washing can be called universal, especially since in their manufacture various modifications are allowed in the form of a change in shape (oval or rectangle) and materials for the partition.

Now we will try to expand on this topic in more detail and in addition we will show you a thematic video in this article.

Shower enclosures

Materials, modifications, pallets

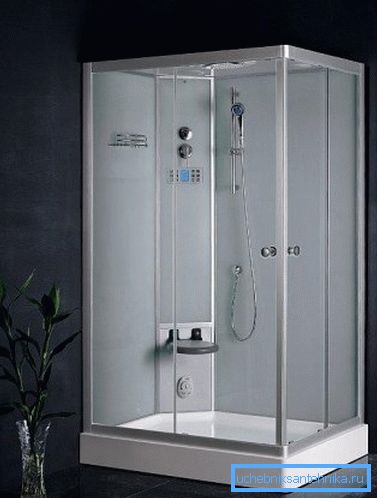

• Let's start with the fact that such designs for taking a shower are not necessarily angular, that is, for a corner, the shape of a semi-finished or even half-folded fan is used - it saves space in the room, and in the booth itself you can use almost the entire area - there are no corners. But this kind of fence can also be in the middle of the wall, that is, the junction will be carried out only to one plane - this is where square and rectangular structures are needed and although their price is almost the same - the installation is somewhat different.
• Another difference is the moving and fixed panels., which can be made of tempered glass or plastic - this accompanies its advantages and disadvantages inherent in this or that material. So, glass, due to its dense structure, can be washed with any chemical means, even with abrasive additives, although for this, as a rule, window glass and means for washing windows and mirrors are used. The problem is that glass barriers, despite the heat, still remain glass, that is, fragile material, and sometimes it happens that the panel is heated in the factory, and fragility increases significantly - most of all it affects during transportation.
• More reliable in terms of mechanical strength transparent and matte plastic - it is not so easy to break it, but its porous structure is contaminated with microelements that can not be cleaned, with the result that the fence loses its original appeal. In addition, the instruction categorically does not recommend using detergents with abrasive elements and, especially, chemically active liquids to clean plastic shower panels.

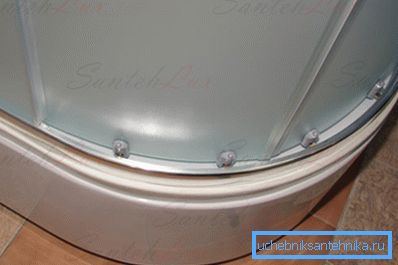

• Booth panels can be both transparent and matte or tinted., which makes the nudity of a person washing there almost invisible. Although recently the industry has preferred transparent fences, matte panels are still in demand in the plumbing market. This is not surprising, because in small-sized apartments, where the bathroom is shared, sometimes you also have to use it together, that is, both the cabin and the toilet, so the opacity here is very helpful.

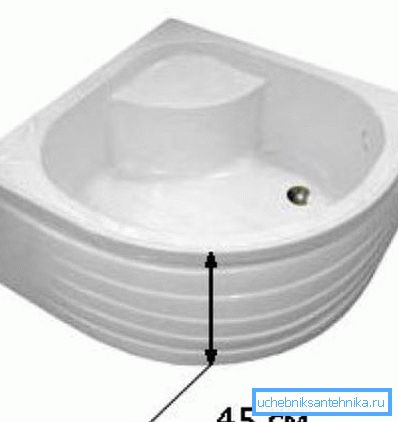

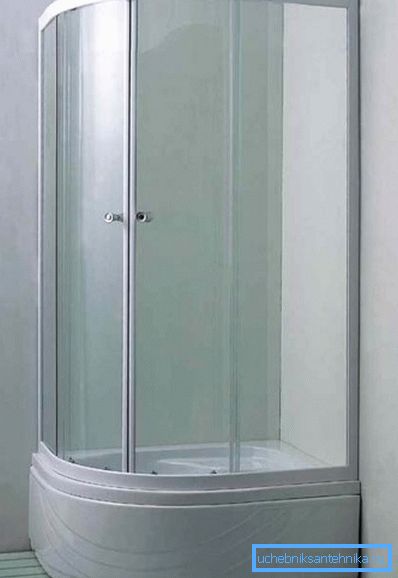

• Pallets can be metal and acrylic, shallow and deep. - the choice is more dependent on the volume - this can be a decisive factor. For example, a deep shower tray is good for bathing a child or rinsing clothes, there is also a seat where you can sit while washing. But, on the other hand, it is extremely difficult for an elderly person or a disabled person, and sometimes it is even impossible to overcome an obstacle - a person simply cannot lift his leg so high.

Installation

Note. In cases where an angular booth is mounted, the angle intended for installation must have exactly 90 ?. If there is a deviation of at least 1 ?, a gap arises between the wall and the pallet and the greater the deviation, the larger the gap and it reaches a critical one, that is, it is impossible to close it up. Of course, there are ways such as tile trimming, but this is exclusively for experienced craftsmen.

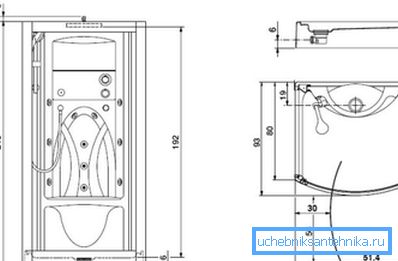

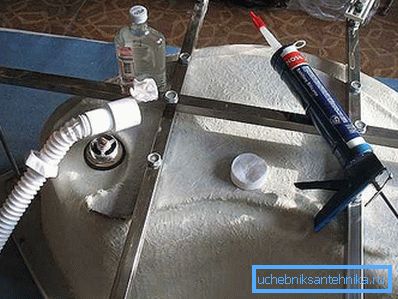

Let's start with the fact that the dimensions of the shower stall in the bath of 100x80x210 mm (L / W / H) can also be different, that is, the length and width change here, therefore, when buying a fence you need to understand which way you can let 100 cm and in which - 80. On the pallet, with the help of the cross, the legs are screwed, which you definitely need to adjust to the level, while the pallet is in an inverted state.

After that, simply attach the pallet to the corner and check it with the level again - if necessary, twisting or twisting the legs for alignment. It is best to attach it to the wall with silicone sealant.

Then you assemble the metal frame under the partitions, but there the frame must be inserted into the guides (see photo above), which, in turn, are strictly vertically fixed to the wall (with silicone lubricant) at the corners of the pan.

Regardless of the material (glass or plastic) shower 800x1000 mm has movable and fixed panels. At first, deaf sheets are inserted and fixed, and, on each of them, on vertical edges, plastic gaskets are put on — one that is with an apron on the side of the doors.

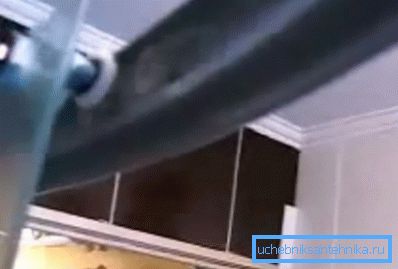

Then, with the help of two pairs of wheels (above and below), the doors are hung - the lower pair is adjusted after being hung (there are eccentrics), and magnetic strips are put on the alignment point for a snug fit.

Recommendation. After the installation of the booth is completed, be sure to apply a strip of silicone between the tray and the wall. Then swipe the decoration finger on it - it will be both a drain and an ornament.

Conclusion

Installing a shower cabin with your own hands is not particularly difficult if you have even walls and a floor, as well as an angle of 90 ?. But, nevertheless, do not neglect the manual from the manufacturer - in each model there may be any specific nuances of installation.
