Shower column - everything you need to know about this type
If in your summer cottage or garden plot there are frequent interruptions in electricity or water supply, then you should take care to equip a shower that will work regardless of external factors. Even if you always have water and a stable power line, the shower column on the wood will save a lot of money and establish an uninterrupted supply of hot water, especially since in our time there are multifunctional modifications.
The main advantages of the considered structures
Wood shower columns have a number of undeniable advantages:
| Non-volatility | You can always take a shower, even if there is no light in the holiday village and you do not have running water. The design is completely autonomous, and for its operation it is necessary to have a tank with an adequate supply of water and wood or peat briquette for heating water. |
| Budget | The price of wood speakers is quite democratic. You can choose a modification for any buyer, with the effectiveness of even budget options at the highest level. |
| Simplicity and reliability | You can easily start the system with your own hands, the assembly instructions are so simple that any person can handle it. High-quality structures ensure complete safety of work and have a service life of 10 years or more. |
| High maintainability | Repair of the shower column is very simple due to its design, all elements can be replaced, and in the event of leaks - to make a container. The lack of electronics is a very big plus if the equipment is operated in rooms that are not heated in the winter season. |

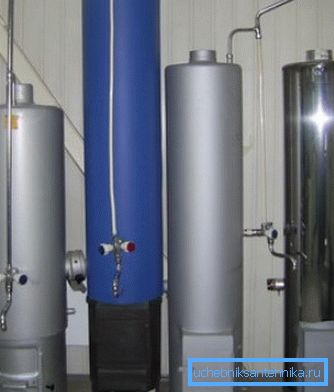

Tip! To choose a quality and durable model, check out the recommendations below. If the product does not match at least one of the items, then it is better to look for another option.
Main selection criteria and rules for safe operation
It is very important from all the proposed options to choose the one that best fits your operating conditions. All products of this group differ in a variety of factors, and we consider them first.

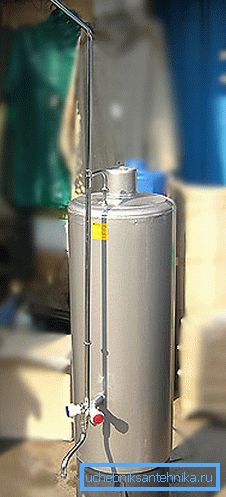

How to choose a wood column model
The principle of operation of a wood-burning shower column is as follows: water rises when heated and in its place cold water flows from the tank. This ensures uninterrupted supply of water of the desired temperature.
A number of criteria affect the operation of the system:

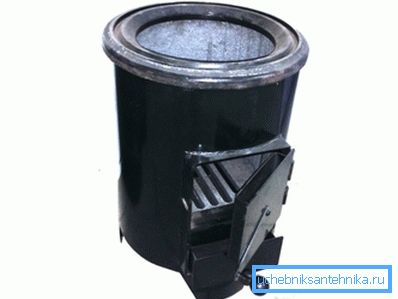

- The version of the firebox - it can be separate or joint. The first option is characterized by ease of transportation and installation, as well as the fact that in the event of complicated malfunctions, you can replace only the firebox, which will save considerable funds. The joint solution is different in that the heating of the water is faster, and you save about 10-15% percent of the time.

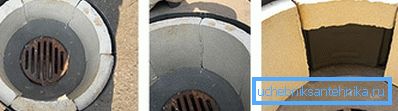

- In order for the wood-based hot water shower to last as long as possible, it is better to choose the options in which the body of the firebox is made of cast iron, this option will work for a very long time without any problems. If you chose the steel case, then the grate should still be made of cast iron, and the entire system circumferentially closed with fireclay bricks, this option will also serve for a very long time.
- Also pay attention to the material of the manufacture of the water tank, it can be made of heat-resistant steel or stainless steel. The second option is much more expensive, but its reliability and durability cannot be compared with ordinary metal. If the container is separate, then remember that when installing it, you need to put it so that the shower pipe goes out in the right place, since its position is usually not adjustable.
Tip! The thickness of the walls in the tank should not be less than 3 mm, this ensures its strength and durability.
- The height of the rain is also important, as some models are not very high, and people with height above 180 cm will be very uncomfortable to wash.. Also pay attention to the manufacturing material of the mixing unit and the rain, they must be sturdy and reliable.
Operating rules
Immediately, we note that the column on the wood for the shower can be installed without special permissions, but it is important to comply with a number of important requirements:
- Finishing of the wall and floor in the place of installation of the column should be of non-combustible materials. Ceramic tile is best suited - it is not only perfectly resistant to high temperatures, but also ideal for shower rooms.
- Operation of the system with incomplete capacity is strictly prohibited, the design is such that the capacity will start to burn and may burst. Therefore, it is better to organize the supply of water from the tank on the roof, so you guarantee the constant filling of your column with water.
- Do not forget that for the winter it is necessary to drain all the water from the system, otherwise when it freezes, it can deform your tank or even break it along the weld.
- The system requires a full-fledged chimney device, most often stainless steel pipes with a diameter of 110 mm are used for this, they can either be displayed separately or be connected to the standard system, if such is present in the room.

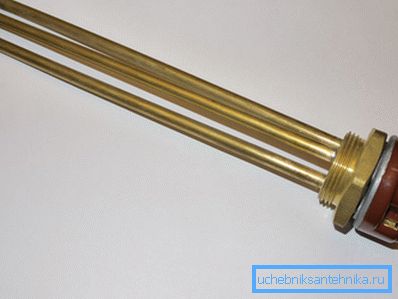

- In order not to melt the column every time, you can purchase a model with an electric heater, it will allow you to use the design if you have little time or need some warm water.
Note! Some customers confuse this type of product with such a type of product as a waterproof shower column - this option is designed for listening to music and has nothing to do with water heating.
Conclusion
Wood columns - the excellent decision for the widest range of application: country and country sites, building sites and even field departures. The video in this article will help to visually see some important features of the considered structures.
