Shower tray 120x90 - characteristics, types and installation

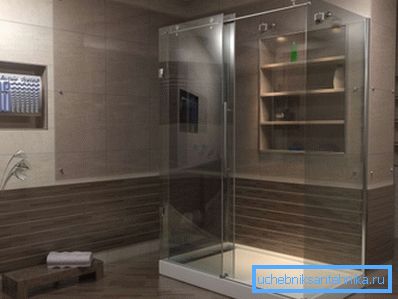

Shower trays 120x90 is a new word in the design of the bathroom. These devices allow you to abandon the bulky bath in favor of an ergonomic and compact shower stall, freeing up additional space for installing a washing machine or other equipment. We want to talk about the main varieties and features of shower trays.

Shower trays

Purpose and features

The decoration of the modern bathroom can no longer be limited to the bathroom and the sink; here, at a minimum, there should fit a washing machine, a cabinet for accessories and hygienic facilities, various additional furniture and equipment. However, the size of most bathrooms is very limited, and for a normal interior decoration you have to use the space extremely economically.

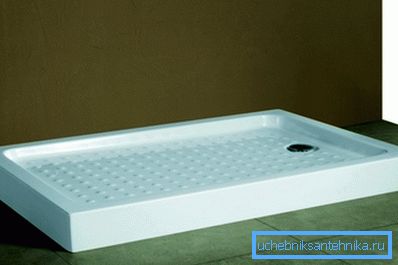

This approach has generated many technical and interior solutions that allow you to spend the free space of the room most efficiently. An example of such a solution can be called a shower tray, which frees up at least one square meter of bathroom area; in the free space the washing machine or storage boiler fits perfectly.

The product is a bowl equipped with a drain hole and a siphon. Deep models can have a water overflow system.

The bowl must meet the following requirements and features:

• Be completely water resistant. The material should calmly endure prolonged contact with hot and cold water, water vapor, high humidity air;
• Do not be afraid of corrosion. The surface of the pallet should not be subjected to electrochemical, biological, chemical and other types of corrosion;
• Normal to resist aggressive environments. The bowl will often be exposed to various chemicals, including powders, shampoos, detergents, etc .;
• Do not support microflora. Bacteria and microbes should not actively develop on the surface of the pallet. Also, it should not be of interest to fungal organisms and mold;
• Be durable and withstand heavy loads. The bowl is designed to have an adult person standing on her feet, so she must withstand such loads with a large margin;
• Have an easy-care surface.. To keep the device easy to keep clean, its surface must be well cleanable and not be afraid of the effects of chemistry.

Note! Also, when choosing a bowl, you should pay attention to its maintainability and method of installation. Good models are usually equipped with a frame for installation.

Materials

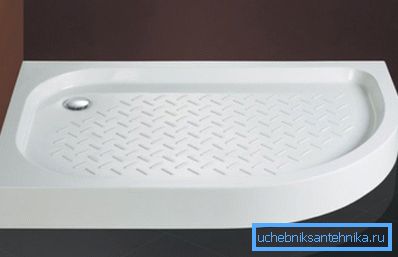

In order for the shower tray to meet the requirements listed in the previous section, it must be made of a suitable material. Today use a variety of solutions; the most popular ones we tabulated:

Note! On sale there are specimens made from other materials: non-ferrous metals, natural stone, glass, plastic and others. However, we recommend choosing from the above options.

Most modern showers are made of acrylic. This can be explained by the availability of this material and its excellent performance properties. It is very durable, with a wall thickness of only 4 - 6 mm bowl can withstand the weight of an adult man. So that the walls do not bend and do not play under load, the product is reinforced with steel frames, fiberglass and other materials.

Note! The lack of acrylic is a low scratch resistance of the surface. However, this disadvantage is compensated by high maintainability, and with the help of a simple repair kit you can quickly repair defects with your own hands.

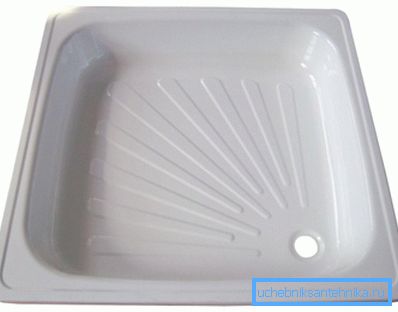

The operational features of enamelled steel are well known to us from the experience of using cast iron and steel baths. This material is very durable, quickly heated with warm water, easy to clean. However, you will have to monitor its surface, and if enamel cracks or chips appear on it, it is necessary to restore its integrity as soon as possible.

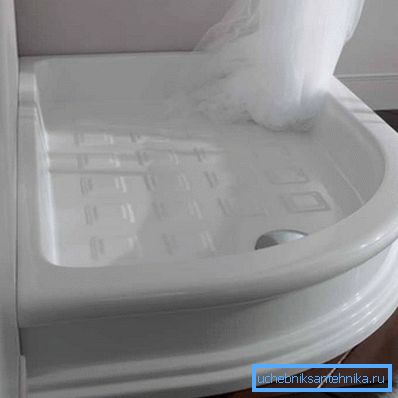

Ceramics is a material that is almost perfect for these conditions, and we know this well by the example of sinks and toilets, plates and other dishes. Its only drawback is the relatively time-consuming installation and a large proportion of products.

Note! Care must be taken when installing ceramic shower trays, as over-tightened bolts can cause cracks and splits in the bowl. The contact of the surface of the ceramic bowl with metal objects should also be minimized.

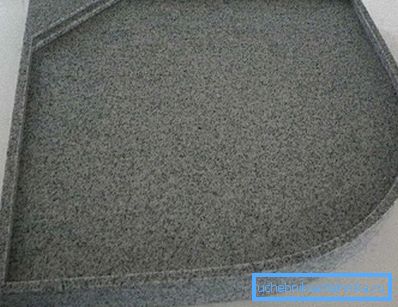

Artificial stone is a fairly new material, but it managed to prove its effectiveness and excellent performance. The material is not afraid of water, household chemicals, has a very durable, wear-resistant surface.

Note! The technology of casting products from artificial stone allows you to create a variety of models in shape and size, and the possibility of tinting expands the range of shades and colors.

Varieties and sizes

Models shower trays are very diverse. They may differ in depth, in shape, in size, have different shades and grooves on the surface. You should start with the choice of depth.

There are three options:

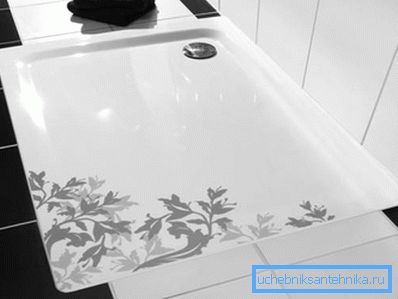

1. Flat models up to 3.5 cm in depth. Very comfortable, especially for the elderly and people with disabilities, as it is difficult to cross the high side. They require effective work of the sewage system, otherwise the water will not have time to merge and can flood the bathroom;
2. Models have an average depth of up to 18 cm. This is the most common option, since there are not too high sides here, but even if water does not pour out onto the floor, as in the case of a flat bowl;

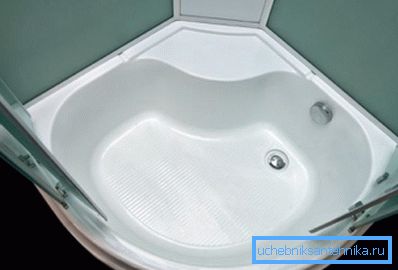

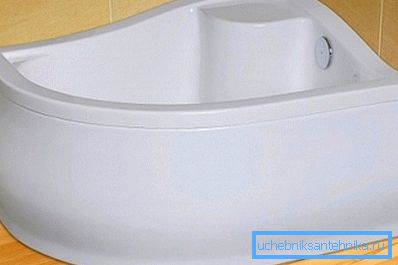

3. Deep models can have sides up to 45 - 50 cm in height. This makes them look like small baths, which is a compromise for some bath lovers. Usually equipped with overflow and valve on the drain grid.

The dimensions of the pallets are usually in the range from 70x70 to 120x120 cm, but non-standard dimensions can also be found. The choice of geometric parameters is usually made based on the characteristics of the bathroom and personal preferences.

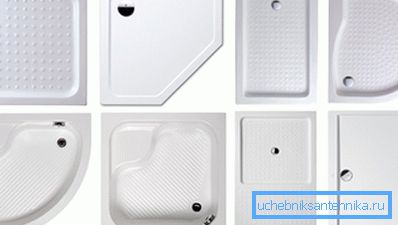

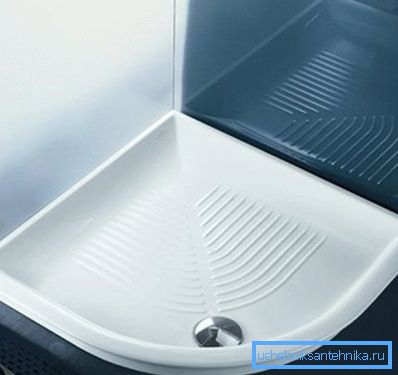

The shape can be found rectangular, square, triangular and round models, models with curved borders, rounding at the corners and options for complex non-standard shapes. The most popular are square, rectangular and angular triangular bowls.

Installation Features

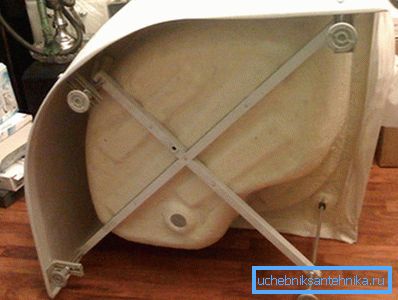

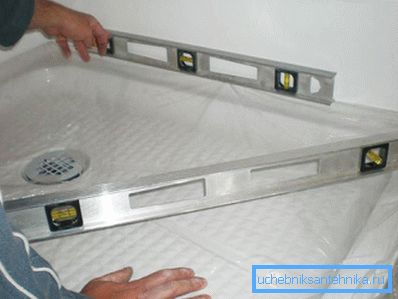

The installation instructions for shower trays are not particularly complex. Usually it comes down to assembling the installation framework, installing and fixing it on the floor, leveling the bowl with the level of the desired slope and sealing the joints with the walls with silicone sealant.

The front part is covered with a special decorative panel or brick podium, which is subsequently trimmed with tiles or mosaics.

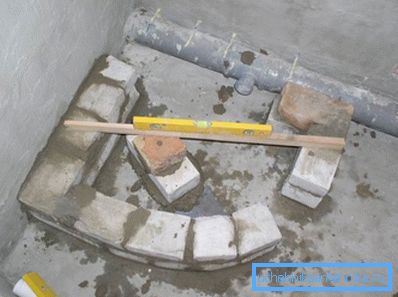

Ceramic bowls are usually installed on a brick or concrete podium. Because of this, this class is considered relatively difficult to install, although in fact there is nothing difficult about it. The only drawback is wet operations and the consumption of time for setting and hardening of the cement mortar.

Note! Before fixing the bowl to its drain hole mount the grid with a siphon and sewer corrugation. The corrugation is connected to the riser with a slope of 1.5 - 2 cm per meter of length. All joints are thoroughly sealed or treated with silicone sealant.

Conclusion

The shower tray allowed to make room in the bathroom for the installation of household appliances and equipment. The modern market offers a wide variety of models with different shapes, sizes and materials. The video in this article will tell about pallets more.
