Everyone uses the toilet, but few know what it consists of, including the internal structure of the drain tank, and how it all works. But thanks to such knowledge, it is possible to significantly extend its operating time and even make repairs with your own hands in case of a malfunction. Next, we suggest that you take a look at the detailed structure of the plumbing equipment that is so in demand.

Spare parts for a toilet bowl in full

Bowl

Starting a conversation about the main working vessel of the toilet bowl, it is worthwhile to begin to consider its possible forms.

Forms

Outdated plate version
Title Special features
Disc It has a gentle protrusion above the drain hole, which gives a lot of design flaws:
  • excessive consumption of water used;
  • the spread of unpleasant odors;
  • the occurrence of rust on the shelf itself as a result of liquid stasis;
  • the presence of splashes during the discharge
Visor It assumes the presence of a characteristic inclination towards the sewer hole, which eliminates the formation of stagnant water, but still sometimes requires re-pressing the start lever on the drain tank for better cleaning of the tank
Funnel This bowl is made, as the name implies, in the form of a funnel and has an anti-splash system.

Tip: in case of installing a toilet bowl from scratch or replacing an old bowl with a new one, it is recommended to choose a funnel-shaped model, since it is the most efficient, comfortable and hygienic.

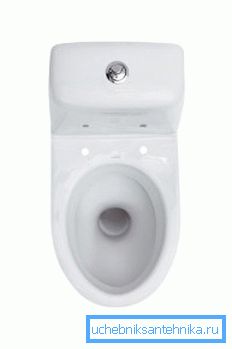

Photo of funnel bowl

Water lock

Sectional hydraulic shutter

Replacement of such spare parts to the toilet can only be carried out with the entire bowl. But usually such drastic measures are not required, since the most common failure in this case is the formation of a garbage plug. So, if you started to feel the unpleasant smell passed from the sewage system, it means you need to clean the valve with the help of cleaning agents, a plunger or a metal string.

Puncing a garbage plug with a plunger

Cistern

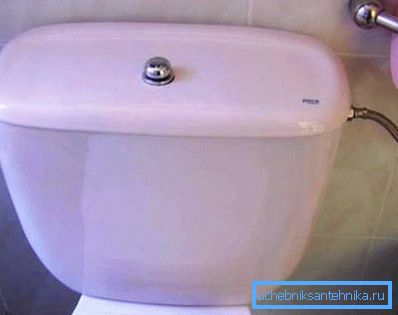

Sample toilet flush tank

The main task of this unit is to discharge a certain amount of water into the bowl. Let's see what components for the toilet cistern are needed:

Structure

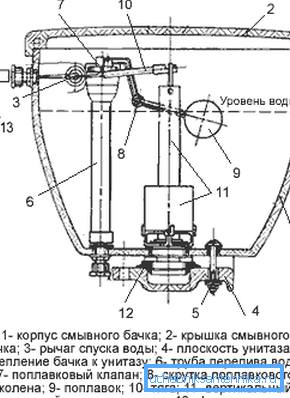

Diagram of the internal structure of the toilet drain system
Designation in the figure Title Description
one Housing Most often made of ceramic or plastic. At the same time, the price and weight of the second option is less, but some vulnerability to mechanical and thermal effects is also observed.
2 Cap Closes the top access to the inside of the system.
3 Trigger lever Activates drain mechanisms.
four Toilet shelf It is the basis for a flush tank. In models with mounted plum is usually absent as unnecessary.
five Fastening the tank to the bowl Reliably attaches accessories to the toilet
6 Water overflow pipe It removes excess liquid into the sewage system to prevent it from escaping through the top of the tank.
7 Float valve These spare parts for the toilet cistern regulate the flow of water from the pipeline. The float rises with the fluid and at a certain level initiates the closing of the valve.
eight Twist float valve
9 Float
ten Traction Connects the trigger mechanism to the drain valve of the toilet cistern.
eleven Vertical starting valve with seat It discharges the fluid in the tank.
12 Locking gasket Seals the toilet joint with the tank.
13 Water supply from the water supply system It transports fluid to the drain system. It can be made of reinforced rubber or plastic.

Tip: It is recommended to choose systems in which the start lever has a double action. One click empties half the tank, and the second - the whole. This will allow more economical use of water.

The most important repair kit for a toilet cistern consists of an inlet valve and a drain valve, the structure of which we will consider further.

Float valve

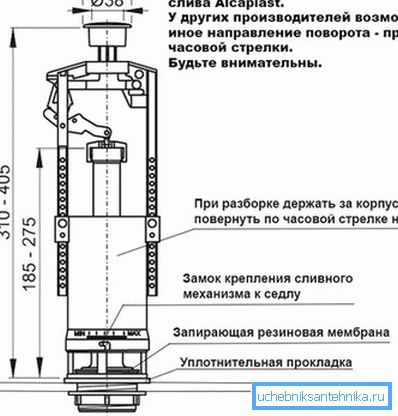

Scheme elements of the float valve
  1. Clamp washer. Connects the water supply hose from the water supply to the rest of the structure.
  2. Gasket. Seals the joint.
  3. Saddle.
  4. Membrane. Controls the passage of fluid.
  5. Kernel. As a result of pressure from the lever of the float opens the membrane.
  6. Float lever. Interacts with the float.
  7. Lever axis.

Repair instructions often come down to replacing the membrane, which may lose its elasticity over time, or leveling the float lever.

Starting fittings

Scheme of valves

In the event of a malfunction in the trigger valve mechanism, the following actions can usually help:

  1. Replacing the entire assembly.
  2. Replacing the locking rubber membrane, which over time may begin to pass water.
  3. Replacing the gasket, which also shrinks over time and loses its tightness.

The stool

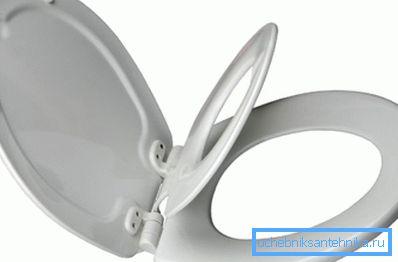

Sample plastic toilet seat

This is the simplest in its structure and inexpensive part of the toilet.

But with her choice there are also some nuances.

  1. Material:
    • Plastic. Solid, but completely hygienic and easy to clean.
    • Foam rubber. Soft and comfortable material, but porous, which ensures the absorption of liquids, odors and various microbes.
    1. The presence of additional child seats. If you have children in your house, this will become a simple and very useful detail.

    Additionally

    In addition to the above components, which constitute directly the construction of the toilet, there are still parts for the installation for the toilet:

    1. The adapter sleeve for connecting the drain hole of the bowl to the sewer socket can be corrugated, eccentric or straight.

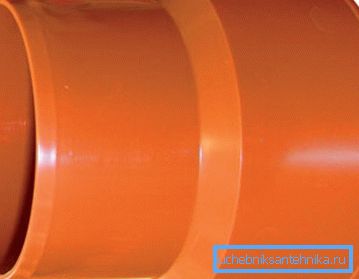

    Straight Coupling Sample
    1. A set of vessel mounts to the floor and a flush tank to the bowl or to the wall, depending on the model.
    2. Water connection hose.

    Conclusion

    Despite the fact that we see not so much from the outside when we use the toilet, its complete set has a large number of details. Some of them can fail, and their timely replacement will allow you to avoid the appearance of more significant damage. Also, an understanding of the structure of the equipment being operated will allow you to handle it more carefully, which will positively affect its durability.

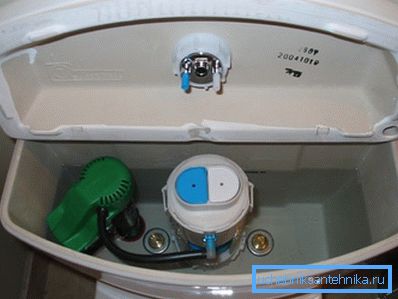

    Everything is installed and working properly

    The video in this article will introduce you to more information. Any equipment requires careful attitude.
