The dimensions of the installation of the toilet:

27-08-2018
Sewage

When it comes to the interior of such premises as a bathroom or toilet, the question immediately arises of how to save space. In this case, most often, this problem is encountered precisely when installing sanitary appliances. Given this, the height of the installation for the toilet is very important because it takes the most space in the room.

Amateur photo of the bathroom, which has a similar design

Types of installation and their features

To begin with, it must be said that this concept itself can be described as the introduction of a product into the interior of a room. At the same time, the dimensions of the installation for a toilet bowl are in fact the area in which the appliance will be installed. However, it should immediately be noted that the usual installation is not referred to this term, since it means exclusively embedded equipment.

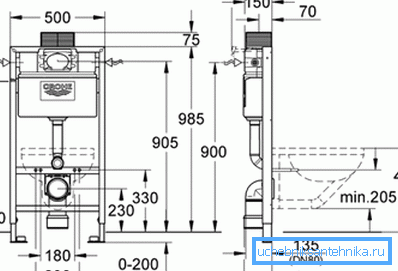

Typical sizes of similar structures, which are given by the manufacturers themselves.

Rack mounting

This type of installation involves the introduction into the wall of certain elements that will serve to fix the tank and bowl. This is usually an installation for the toilet height of 820 or higher, where the water tank is fixed in the wall on a special bar, and the lower part can be independent, but also on a stiffer suspension.

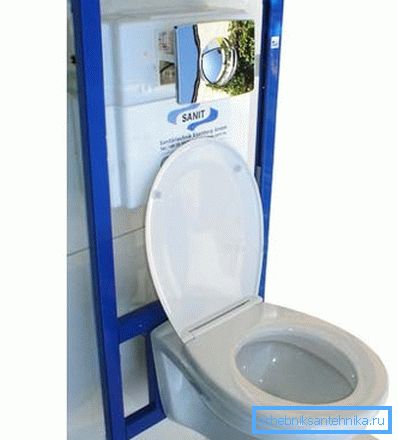

Rack mount option is not designed to use the floor as a support

It is worth noting that for the implementation of such a project it is necessary to deal with the supporting structure, since it is she who can withstand such loads. The depth of the installation for the toilet will not allow the plumbing to speak out.

In fact, we get two fixed areas, one of which is designed for the tank, and the second has the form of pins for planting the bowl.

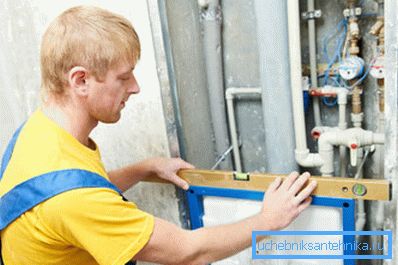

These designs are great for fixing directly on the wall or in small niches with riser pipes

Given these features, the width of the installation for a toilet bowl is selected solely on the basis of the dimensions of the installed devices. However, the majority of craftsmen only bring to the bottom of the channel, which is necessary for the installation of the drain pipe and bowl holder.

Tip! Selecting a specific type of construction, it is necessary based on the specific technical conditions of the room and the model of plumbing. Only if the repair is done with redevelopment, you can customize the interior for the desired installation to install the toilet.

The appearance of the finished product is distinguished by its originality and can significantly save space

Frame installation

  • For such works, the height of the toilet with the installation from the floor is very important. The fact is that with such an installation a full-fledged frame is embedded in the wall, which is not only fixed at the edges, but stands on its base.
If several plumbing devices are installed using this method, then it is necessary to take into account the distance between them or purchase a full-fledged section.
  • Given the presence of such an additional structure, the minimum dimensions for an installation for a toilet bowl are selected on the basis of it. At the same time, it is worth noting that most manufacturers produce all the necessary components for installation, including the frame itself, which immediately solves a lot of problems with dimensions.
  • It is important to note that the size of the installation under the toilet of such a plan may involve a certain protrusion of the overall system from the wall. This is very convenient if the fixation is not performed on the supporting wall, which also allows this type of installation.

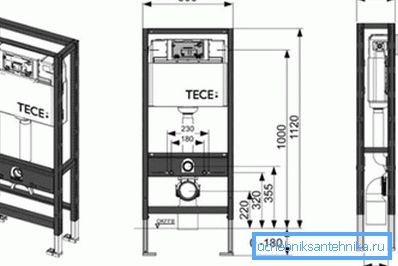

The dimensions of the product in the form of a frame, which involves the installation based on the floor
  • You also need to say that such a system is much easier to install with your own hands, because the frame itself helps a lot when positioning and fixing the plumbing itself.

Tip! Sometimes the protruding parts of the installation are much easier to sew up with the help of drywall or other similar material than to go deep into the wall.

If the full stitching flush to the wall can be used for the lathing method, then the frame structures may need to be made of original boxes, if the depth of the niche does not allow them to be placed in it

Recommendations of specialists

  • It should be noted that the installation manual strongly recommends that you very firmly fix both the slats and the frame. If this is not done, or even a small elevator is allowed to appear, then during operation there may be serious problems to solve that will need to be dismantled.
Such methods of installation with the right approach to interior design allow you to create the most amazing types of design that can become a real work of art.
  • Similar designs look great and can save space.. However, they require specific work, the price of which is sometimes quite high.
  • Installing a similar plumbing is necessary not only to correctly calculate the dimensions, but to understand what the load will be on the final product. Therefore, it is very important to strictly follow the advice given by the installation manual for a particular model, which is usually included in the package.

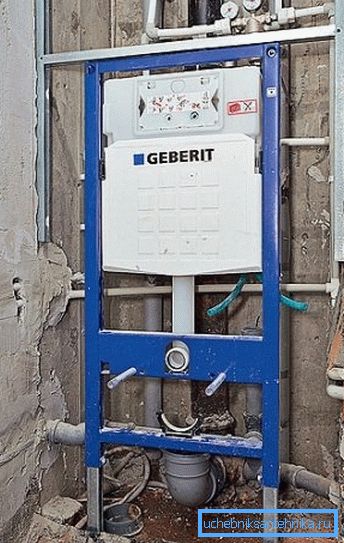

Technical solutions of this type are very well suited for installation in small bathrooms or toilet rooms, while they are simply indispensable for redevelopment, because they allow the use of non-standard technical solutions.

Conclusion

Having studied in detail the video in this article, you can get more detailed information on such structures and their installation. Also based on the text above, it is necessary to conclude that it is necessary to determine the type of installation based on the technical conditions of the room and the plumbing model.
