The toilet with a vertical release - the features of this

07-06-2018
Sewage

Modern housing is difficult to imagine without high-quality plumbing, so her choice should be given the closest attention. And if you are reworking the sewage system, then it is possible to provide an option in which a toilet with a vertical outlet will be installed in the floor - in this case, the use of corrugations will not be needed, and the drain will be made directly into the pipe. This option has a number of advantages, which we will consider in this article.

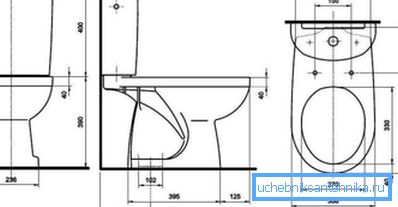

The toilet bowl layout with vertical release - as seen by the parameters, it takes up much less space than other options.

Types of release in toilet bowls

First of all, you should consider which options are on the market and note their main features:

Horizontal release The most common option in Europe and our country. Such plumbing was installed everywhere 20 years ago and in our time is quite common. But It is worth noting that such a layout takes up more space in the room, and a corrugation, bent at an angle, can get clogged over time, and cleaning it is not the most pleasant thing to do.
Oblique way out This option has replaced the horizontal and has gained great popularity due to the fact that it is much easier to attach to communications. And an angle of 45 degrees provides a more intense and high-quality drain. This design can be installed instead of a product with a horizontal drain.
Vertical release This option is almost universally used in America. This is due to the fact that there all communications take place inside the ceiling and the system is connected to the sewage system directly to the nozzle. Products of this kind are becoming more and more popular due to the fact that installation is much easier and faster.

Note! You can not put a toilet with a vertical drain instead of other options, as the sewer pipe must be laid so that the toilet was put directly on it, that is, the bell should look vertically upwards.

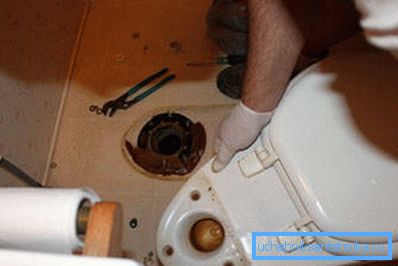

The vertical arrangement of the pipe provides high quality stock

Features of this option

First you need to figure out what advantages this arrangement offers and how it is better than other, more common variations.

The main advantages

Speaking of pluses, one cannot but touch upon the following factors:

  • The design of the cistern ensures its high reliability., and also guarantees excellent flush quality.
These tanks usually use high-quality fittings.
  • In the process of operation, the flush passes without splash and splashes., moreover, the quality of flushing from the walls, as a rule, is much better than that of traditional variants.
  • The presence of a siphon in the body of the product causes a high pulling force, so that water is consumed much more economically.
  • The high water level in the bowl provides excellent protection against foreign odors. and guarantees the best hygiene.
  • If you need a compact toilet - the vertical release is exactly what you need. It can be placed anywhere in the room at any angle to the walls. Moreover, unlike other options, this view can be placed close to the wall, which saves every centimeter of space.
The ability to install close to the wall - a very big plus for small bathrooms

Installation recommendations

To figure out how to install such a toilet with your own hands, you should study its main design features:

  • Vertical intake involves a deeper pipe laying or their location inside the interfloor partitions.
  • If you decide to put the structure close to the wall, then the easiest way to buy a model that is designed specifically for this location.

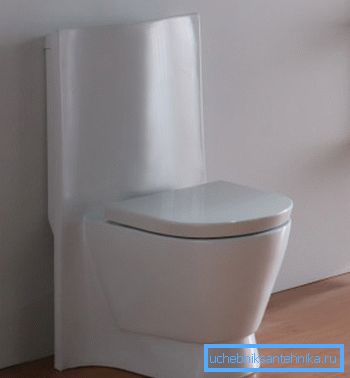

    Such models are made with the expectation that they will be installed to the wall itself.

  • The design already has a siphon and nozzle, which greatly simplifies installation and does not require the purchase of connecting elements separately.

Installation of a toilet bowl with a vertical release is as follows:

  • First of all, the site is cleaned, where the equipment will be installed and its planned layout will be marked. So you can carry out the work, not being distracted by controlling how the toilet stands and whether it has not moved.
  • Next, a special flange with a retainer is attached to the floor; with its help, the toilet bowl will be connected to the sewage system later. The price of this element is small, and the use is undoubted, because it provides tightness and durability of the pairing.

Tip! It is best to lay out or mark the exact location of the platform and apply sanitary sealant around the perimeter; it will close the space under the toilet from moisture penetration and ensure cleanliness.

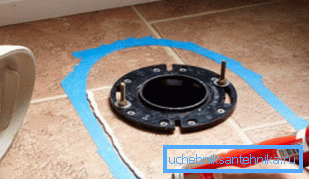

In the photo: silicone will help prevent the ingress of dirt and water under the supporting part.
  • A sealing ring is installed on the toilet, and the design is placed so that the counterpart coincides with the flange for the pipe and is fixed in it. Particular attention should be paid to compaction - it should be elastic, without cracks and kinks.
  • The nuances of fixing the structure may differ slightly - some options are simply inserted, others need to be slightly rotated. All features will prompt the manual, which must necessarily be bundled with the product.

Conclusion

The version of the installation of the toilet with a vertical descent is very attractive for places with limited space, however, and communication should be run accordingly. The video in this article will explain some of the important features of the workflow.
