Toilet bowl with hygienic shower and its types

04-10-2018
Sewage

Not every bathroom has extra space to install a bidet. The solution to this problem is a hygienic shower for the toilet. Below we will look at what this sanitary fixture is, and look at its types and features.

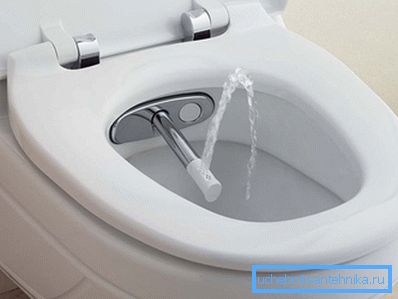

Toilet with integrated shower

General information

Hygienic showers are manufactured by manufacturers of plumbing in various versions. However, regardless of the model, this device allows a person to carry out all the necessary procedures for personal hygiene.

In addition, the device can be used not only for its intended purpose. With the help of the shower (if it is not built in), you can draw water in the tank, wash the toilet, children's pot, etc.

These devices are called universal bidet attachments, as they can be installed on any toilet. True, recently there were models that were initially equipped with built-in hygienic showers.

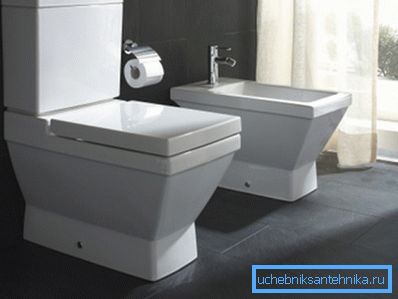

A free-standing bidet takes up a lot of space in the restroom

Advantages of the device

Recently, a hygienic shower with a faucet for the toilet has become widespread due to the following advantages:

  • The toilet with an intimate hygiene shower functionally completely replaces the bidet without taking up extra space in the room.. In addition, such a device is more convenient to use.
  • As mentioned above, the shower facilitates cleaning of sanitary equipment and cleaning of the entire toilet., as there is no need to collect a bucket in the bathroom and carry it to the toilet, for example, to scrub the tile.
  • With a separate bathroom, there is no need to go to the bathroom after the toilet..
  • In most cases, you can install the device yourself..
  • Toilet with a bidet with a sanitary shower is cheaper, than individual plumbing fixtures.

Thus, in some cases it is much more expedient to install a console than to purchase and install a full bidet.

Tip! If the bathroom is combined and has small dimensions, then the most compact solution is a shower with a toilet and sink. In fact, it is a sanitary complex, which contains all the necessary appliances.

Compact corner shower with toilet inside

Kinds

As mentioned above, currently there are several types of devices under consideration.

The following are the most common types of structures:

  • Built-in bidet.
  • Bidet cover.
  • Wall shower
  • Shower with sink.

Next, take a closer look at the features of devices of each of these types.

Built-in bidet

The toilet with integrated hygienic shower has a shower nozzle inside the bowl. The latter can be mounted directly on the body of the sanitary device, and on a special fitting.

To connect the device using a separate hose and mixer. I must say that the faucet for toilet with a hygienic shower can be sold as a set, or separately.

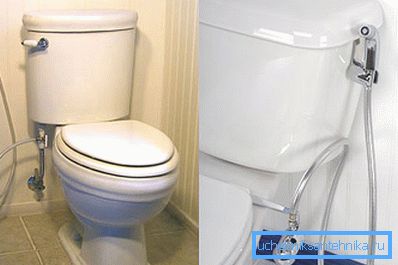

Attached to the body of the toilet shower

Separate shower

An alternative to the built-in bidet is a shower, which is fixed on the toilet. The main advantage of this design is the ability to install it on any sanitary device.

Moreover, the scope of such a soul is more extensive. As mentioned above, it can be used for cleaning the toilet.

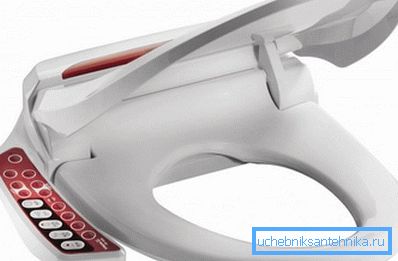

In the photo - automatic cover-bidet

Bidet cover

This design is a cover that has a hygienic shower. I must say that this type of device has quite a few options.

Some models have features such as:

  • Water heating system.
  • Remote control with remote control.
  • Automatic thermostat.
  • The mobile nozzle which control is exercised by means of automatic equipment.
  • Hair dryer
  • Automatic closing and opening the lid.

Of course, the price of such devices is quite high, however, they provide maximum comfort when using the shower. The only thing to consider is that in the event of a power outage such devices cannot be used.

The functionality of standard covers is significantly simplified, but for that they are several times cheaper, and they are also non-volatile.

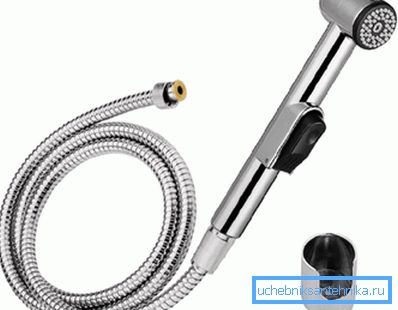

Hygienic wall shower

Wall construction

A wall mounted shower is a mixer without a spout, to which a shower head is connected to a flexible hose. The latter differs from the usual smaller size, in addition, the device is necessarily equipped with a shut-off valve.

Tip! In order not to carry out the supply of cold water separately, you can use a tee with access to a toilet bowl and a hygienic shower.

Some watering cans have a built-in thermostat. Thanks to this device, you can adjust the water temperature once with your own hands and never return to this issue.

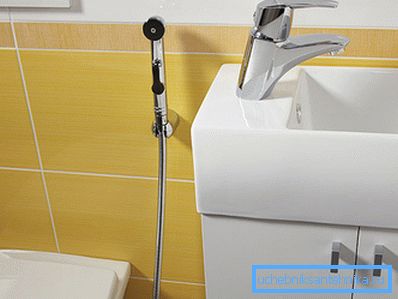

Watering can with a small sink

Shower with sink

If the dimensions of the restroom allow, you can install a special small sink with a mixer. The latter has a watering can with a hose for a hygienic shower.

This design has many advantages:

  • Due to the presence of a sink with a mixer, you do not need to visit the bathroom to wash your hands.
  • When closing the valve of the watering can, the water will flow from the spout, so you will not forget to turn off the water.
  • As a rule, the sink is supplied with a cabinet in which you can store various small accessories, for example, household chemicals and toilet brushes.

Tip! A toilet with sink and hygienic shower should be stylistically consistent with each other. In this case, the interior of the restroom will look harmonious.

Here are all the main types of hygienic showers. As for the choice, it depends on the conditions in the toilet, personal preferences and financial possibilities.

Installation

The installation process of shower equipment depends on its type. Some options, such as a wall-mounted shower or an appliance with a sink, require an overhaul in the restroom. Others, such as a bidet embedded in the lid of the toilet bowl or fixed on the toilet, can be mounted without disturbing the decoration of the walls and not having a layout of water pipes.

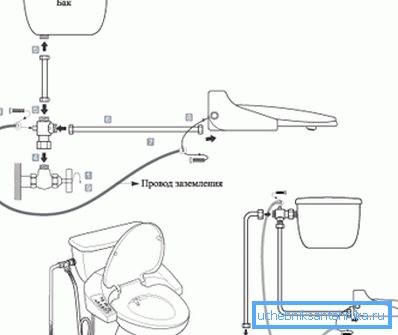

Seat-Bidet Connection Diagram

Below, as an example, we will look at how to install a bidet cover on the toilet.

So, a brief instruction on how to do this work looks like this:

  • First of all, you need to shut off the water supply to the tank and flush it with water.
  • Then you need to disconnect from the tank old flexible hose.
  • Next you need to dismantle the old seat from the toilet.
  • Before entering the tank, you need to install a tee and connect a flexible hose to it.
  • Then install the bidet cover on the toilet. The principle of its installation does not differ from the installation of conventional seats - fixing is carried out using studs that are inserted into special holes in the toilet.
  • Now you need to connect the seat from the toilet to the tee with a flexible hose.
  • At the end of the work it is necessary to turn on the water supply and make sure that there are no leaks and that the device is working. If necessary, the connection must be slightly tightened.

Note! All threaded connections must be tightened carefully, without over-tightening the nuts. Otherwise, the elastic gasket may be damaged and the connection will start flowing water.

Approximately on the same principle the device is fixed, which is fixed on the toilet. A more detailed diagram is usually attached to the device.

Conclusion

Hygienic shower for the toilet are a complete replacement for a separate bidet. And they have several advantages and are even more convenient to use. The only thing, when choosing, is to decide which construction of the soul in your case will be the most optimal.

From the video in this article can be found with some additional information on this topic.
