What installation for the toilet to choose when installing

03-03-2018
Sewage

The installation is a rather complicated construction, which allows not only to install a wall-mounted toilet, but also to hide all communications. Moreover, the installation can be installed in any latrine, regardless of the type of walls. In this article we will consider what types of this design exist and how to choose it correctly.

Installation for toilet

Features of suspended toilet bowls

In recent years, suspended plumbing is becoming increasingly popular, replacing the traditional compacts and drain tanks. This is due to the fact that it looks more modern and attractive, and most importantly - it saves free space and visually expands the room. With her, even a small bathroom looks quite spacious.

However, along with the positive qualities of such a solution, there are some negative ones. Therefore, before you make a choice in favor of such plumbing, we recommend that you consider and estimate all the advantages and disadvantages of toilet bowls with the installation.

Toilet seat

Merits

So, the positive points, in addition to the above, include the following points:

  • Environmentally friendly, as plumbing and the floor under it is easier to wash with your own hands.
  • Saving free space, as the design is shorter than the traditional compact tank.
  • The visual lack of communication allows you to make the interior of the toilet perfect.

disadvantages

The drawbacks, as already mentioned above, also exist, and some of them are quite serious:

  • The price is higher than on traditional compacts.
  • Difficult installation.
  • The complexity of the repair of communications and the drain tank, as they are hidden under the finish.

Given the advantages and disadvantages, everyone should decide for himself what is best - the installation or the toilet bowl of a traditional design.

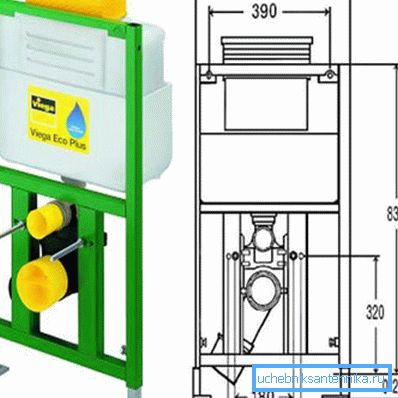

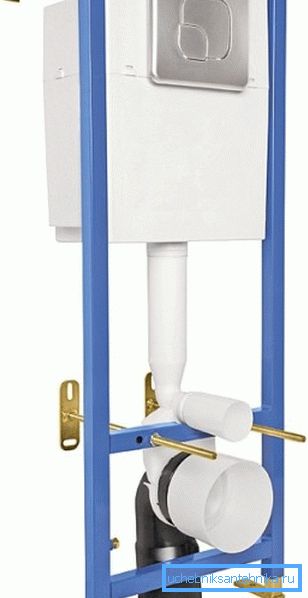

Frame installation

Choice of installation

The installation is a steel structure to which such elements as are attached:

  • Hydraulic piping;
  • Cistern;
  • Threaded elements of fastening system;
  • Couplings.

The quality of the product primarily depends on the reliability of the drain tank. To eliminate its corrosion and the possibility of mechanical damage, manufacturers make this container from plastic. The lining of the flush valve is made of durable rubber or silicone.

Note! To prevent water overflow, the tank must be equipped with an overflow system.

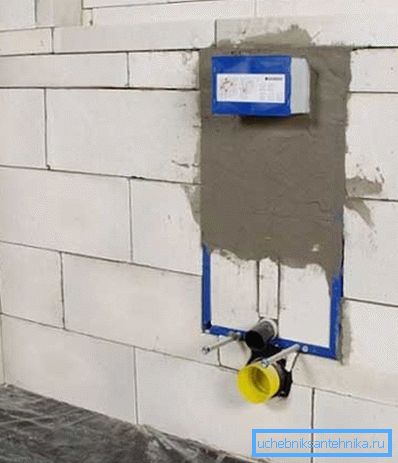

Block installation has no contact with the floor

It should be noted that different types of mounting stands can have many structural differences. Therefore, we give below the main types of installations for the toilet and their features, which must be reviewed before making a choice in favor of a particular design:

Block construction Consists of supporting struts and mounts. It can be used if there is a capital wall in the bathroom, on which the product can be fixed.
Frame construction If to make a rating of installations for toilet bowls, then frame designs will appear on the first place in popularity. They are the most durable and can withstand a weight of up to 400 kg, as they are based on a powerful frame. In addition, the product has legs that transfer the entire load from the frame to the floor.

In addition, all designs differ in their dimensions, which are selected individually, depending on the parameters of the room and the size of the plumbing itself.

What to look for when choosing

To decide which installation is better for a toilet bowl, you need to consider the following points:

  • View of the walls in the room - depends on what type of product to choose - block or frame.
  • Mounting method - also selected depending on the type of wall.
  • Design - The choice depends on the size of the niche. If the dimensions of the system are close to the size of the wall opening, you can install any standard design. Otherwise, you should purchase the sliding top structure and install it with the support on the side elements of the niche.
  • Completeness - this parameter depends on the manufacturer and model of the installation. As a rule, the set includes the following elements:
  • metal construction itself;
  • fasteners;
  • cistern;
  • adapter;
  • flush key.

Note! Fasteners are not always included in the kit, so you may need to purchase them separately, focusing on the type of walls and features of the frame.

In the photo - German installation Ideal Standard

As for manufacturers, the most popular products of the following brands:

  • Ideal Standard, Tece, Grohe - Germany;
  • Cersanit - Poland;
  • Geberit - Switzerland;
  • Alcaplast - Czech Republic.

As for the manufacturer, the choice of installation for the toilet depends solely on your financial capabilities. For example, German and Swiss products are of the highest quality, however, they are the most expensive. A cheaper and quality acceptable option is a stand from a Polish manufacturer.

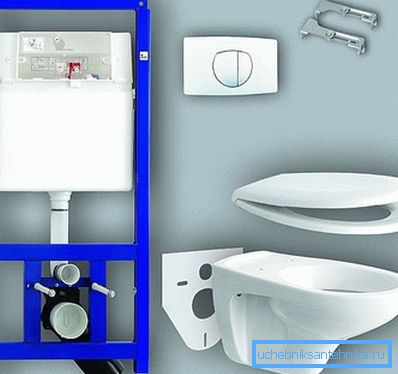

The scheme of installation of the toilet to the frame

Toilet Selection

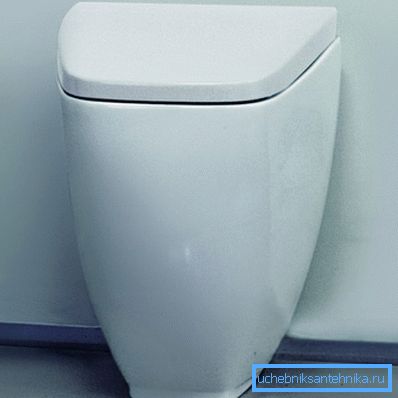

First of all, it should be noted that the mounting stand can be used not only for wall-mounted, but also for floor-mounted toilet bowls. The latter are less demanding on the steel structure, since the entire load from the plumbing fixture falls on the floor, as is the case with conventional compacts.

However, regardless of the type of plumbing, with the purchase you need to pay attention to the installation and the toilet were compatible. Therefore, before making a purchase, it is necessary to show the drawings and description of the stand to the specialists, or to purchase all the products in one store, because the sales consultants will help you choose the toilet with the installation.

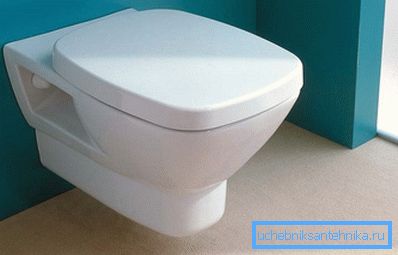

WC

Note! If the toilet is mounted in line with other types of plumbing, for example, a bidet or a sink, then a properly selected system of installation of a suspended toilet bowl will allow to combine the equipment into one unit on a common mounting frame.

Here, perhaps, is the entire instruction for choosing an assembly stand for a mounted toilet bowl.

Conclusion

The choice of installation for a toilet bowl is a very important task, since the reliability and durability of plumbing installation, as well as the efficiency of the drain system depend on it. Therefore, the purchase should be guided by the above information and, if possible, consult with experts.

From the video in this article, you can get more information on this topic.
