Awning for a shower: the choice and features of operation

People who spend holidays on long trips know that camping will provide an awning for a shower or toilet, but it will cost money. So why not buy this useful accessory and use it as needed?

For example, during travel, lightweight construction can be quickly and effortlessly assembled on the territory of a parking camp. At all other times, there is also a use for the quick-assembly construction, since the tent can be used at the cottage or garden plot.

So, what is an awning for a toilet or a shower, which models and modifications can be purchased in specialized stores and how is the assembly of this design done with your own hands? These and other questions will be answered in this article.

Design features

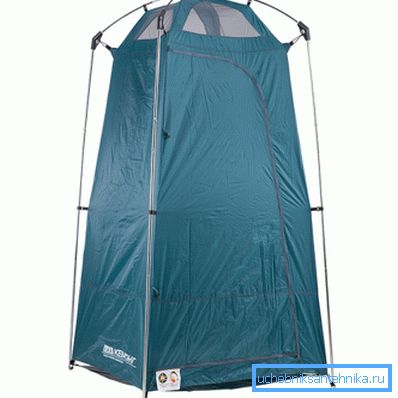

In fact, a shower or toilet quick-assembly awning is a lightweight and durable frame, on top of which a water- and windproof casing, made of polymeric nonwoven materials, is attached.

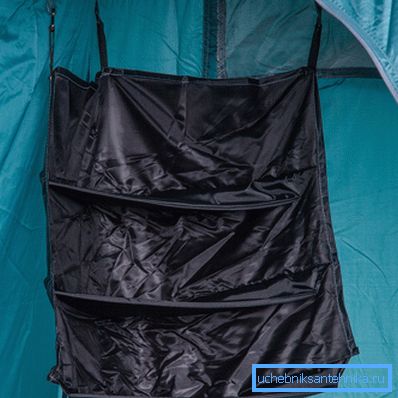

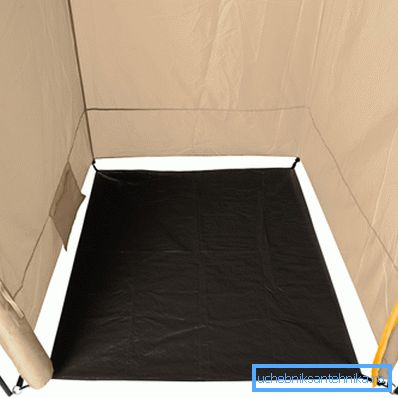

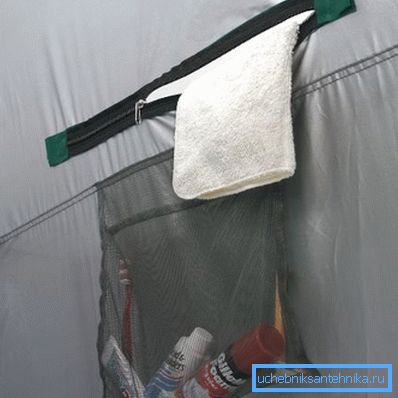

Depending on the model and modification, a polyethylene floor may be included in the package, which is spread out inside the assembled structure and excludes direct contact of the legs and the ground. Moreover, the equipment of the product may include internal shelves for shower accessories and pockets made in the casing.

The market offers a wide range of camping tents, which differ in size, configuration, equipment, strength of the frame and the quality of the outer skin. From the correct choice of model, in accordance with the listed criteria, depends on the operational resource, ease of assembly and comfort of operation of the product.

Important: What tent you would not have purchased, a person with a height of up to 2 meters can easily fit under it. People with higher growth will have to be puzzled by the search for a more spacious model.

So, what should we look for when choosing an acquired shower cabin and toilet stall to meet our preferences and needs?

Type of frame

The frame is the basis of the whole structure, and therefore, first of all, you should pay attention to what it is made of.

Metal and polymeric hollow inside tubes with a round or rectangular cross section are used as production materials in the manufacture of frames.

1. Metal frames can be steel or duralumin.

• Steel products are characterized by twice the weight in comparison with aluminum counterparts and at the same time have a low resistance to corrosion.

The steel frame must not only be painted, but galvanized. In this case, its resource will be about 10 -15 years.

• Products made of duralumin, despite their low weight, are highly durable. In addition, aluminum alloys do not rust, and therefore the resource of the awning will be limited only by the accuracy of use.

1. Polymeric frameworks are applied in inexpensive products. Despite the lightness and resistance to excessive moisture, such products do not have high strength. As a result, when purchasing a product based on a plastic frame, be prepared for the fact that a strong gust of wind can be the cause of a breakdown.

Features of the choice of plating

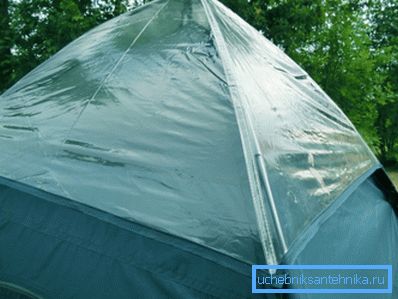

Most of the modern suburban and tourist tents and awnings are made using polymeric panels. Sheathing material can be woven or non-woven. The choice of non-woven cloth is preferable, as it does not get wet.

The best to date covering of summer and tourist tents is canvas made using polyester fibers. Such material not only perfectly transfers direct contact with water, but also does not fade in direct sunlight.

Polyester sheathing, in the event of contamination, is easy to clean without the use of special cleaning agents. Finally, the synthetic paneling looks great, as it is painted from the factory in bright and attractive colors. Certain types of plating can decorate the factory-applied print that will not burn out within a few years of operation.

Construction assembly

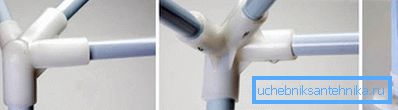

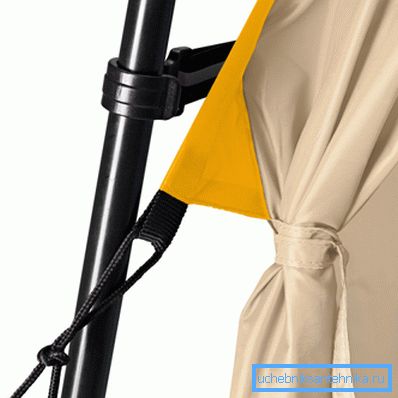

The assembly instruction for factory awnings does not represent anything complicated. The frame is assembled using special clamps or bolted connections. The sheathing is fastened by means of special screeds or fabric straps with velcro.

To cope with the assembly of the device will allow the user manual, which is probably attached to the purchased device.

Important: Assembling factory tents does not require the use of any special tool. If any assembly stage does not do without a percussion or cutting tool, you may be doing something wrong, as it was intended by the manufacturer.

Now, when we know what a shower awning is, produced in the factory, we will try to figure out how to make the same design with our own hands using available materials.

We make water-repellent fabric

As already mentioned, one of the most important components in the manufacture of awnings is a water-repellent sheathing.

In specialized stores you can buy special synthetic fabrics based on polyester or polyester. But, unfortunately, the price of such material is high. Therefore, we will try to make a waterproof covering with our own hands from cotton and linen fabrics that are in every household.

We represent your choice of 3 types of impregnation, from which you can choose the best option:

• In 750 ml of pure water we dissolve 12 grams of lime, then add 250 grams of casein glue to the solution.. In another container, we dilute 20 grams of soap in 1.5 liters of water. The resulting solution is mixed with previously prepared lime solution. We saturate the fabric with the prepared agent. The result obtained is dried in the shade.
• In 7 liters of pure water we dissolve 120 grams of gelatin, 120 grams of soap and 300 grams of alum. The resulting solution is heated to boiling, stirring occasionally. Then we immerse the cloth in the heated solution and let it stand for 2-3 hours after which, without unscrewing, we hang out to dry.
• 100 grams of baby soap dissolve in 3 liters of water. The solution is heated to + 50 ° С and soaked in it for half an hour in advance prepared fabric. Next, without drying the fabric, we immerse for half an hour in a 10% solution of potassium alum. At the end of soaking, the fabric, not unscrewing, rinse in cold running water and hang out in the shade to dry.

Important: Each of these methods allows you to make an ordinary woven material waterproof. The water-repellent properties of materials are maintained for several years, after which the treatment will have to be repeated.

Properly prepared cloth is mounted on the frame by lacing. For the manufacture of quick-assembly structures can be provided for the fasteners of adhesive tape.

Manufacturing frame

The assembly instructions for the framework depend on the materials to be used. For example, if the frame is made of ordinary steel pipes with a circular cross section, it is advisable to use welded joints.

If you decide to use pipes with a square cross-section, you can use special bolting hardware.

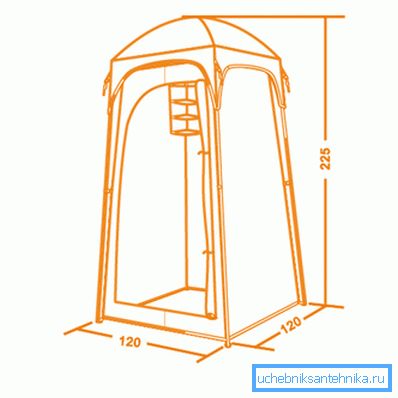

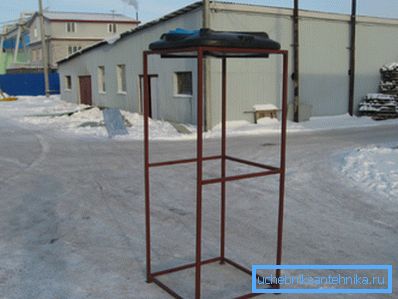

The simplest and at the same time effective form of the frame is a parallelepiped with a height of 2.2 meters and a base size of 1.5 * 1.5 meters.

As a more complex configuration, you can choose a truncated pyramid. This form has an obvious advantage, as it provides the entire structure with additional strength and stability.

When planning the framework scheme, it is necessary to provide fixtures for the installation of sanitary equipment. For example, if a country shower is made, in the upper part of the frame, fasteners are welded for mounting the hydroaccumulator - a metal tank with a volume of up to 100 liters.

Conclusion

Now that we know what a fence for a mobile summer shower is, we can choose and purchase the appropriate option. However, this structure can be made by hand.

Details can be found by watching the video in this article.
