Connecting the washing machine to the water supply and

The question of how to connect a washing machine machine to the water supply, sewage and electricity, arises whenever you are repairing or moving into a new home. Some people think that everything is very simple, and you should not pay special attention to this aspect, but in reality there are a number of rules and recommendations that are mandatory for implementation, otherwise expensive equipment can simply fail.

Types of installation work

Consider what installation operations should be carried out before the equipment is commissioned. All of them can be divided into three main groups:

Installation recommendations

It should be immediately noted that the work begins with a preparatory stage, in which the following is done:

• The installation site of the structure is selected, and all necessary communications are brought there.. This is very important, since, for example, connecting a washing machine to a water supply system provides the maximum allowable length of the supply pipe, the same applies to sewers. Plan in advance the layout, this will avoid rework in the future.
• The product is carefully unpacked and inspected for damage.. If everything is good, the locking screws are unscrewed from the back side (the instruction will tell you exactly what needs to be done first). And only after that you can proceed to further measures for the installation and connection.

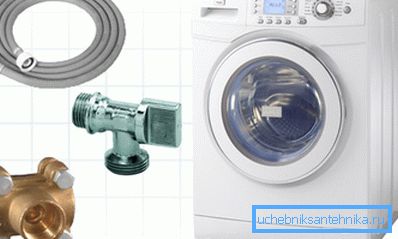

• You also need to stock up on the necessary components and materials - liner, tap, taps, etc. In addition, you will need a plumbing key for tightening the joints, as well as sealing materials for machining threaded mates.

Tip! The presence of instructions and descriptions in it is very important. The more detailed the process, the easier it is for you to work, remember this.

Accession to the sewer

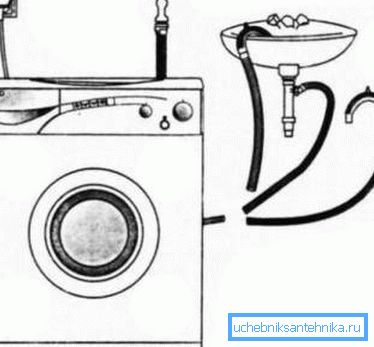

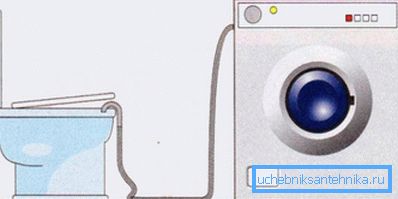

Here there are two options - temporary and stationary. Temporary is the way in which the drain hose with a special holder is installed on the sink. To prevent it from falling out, it is necessary to additionally fix the sink, it can also be installed on the toilet, it all depends on which method is more convenient in your conditions.

Of course, the stationary version is much more preferable, let's consider it in more detail:

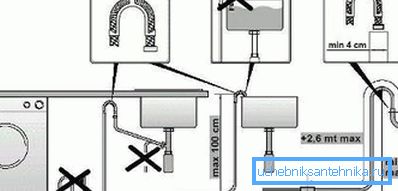

• Each manufacturer in the instructions prescribes the maximum length of the drain line. This is due to the requirements of reliability and performance, and in no case can the rules be violated.

Note! Too long drain line leads to pump overload and, as a result, its failure in a very short time.

• It is best to make a connection through a special siphon, which prevents the penetration of drains and unpleasant odors into the system. Another option that is used quite often is pipe bending, the price of this solution is much lower, but it is worth remembering that the drain bend should be located at a distance of not less than 50 cm from the floor surface.

Water connection

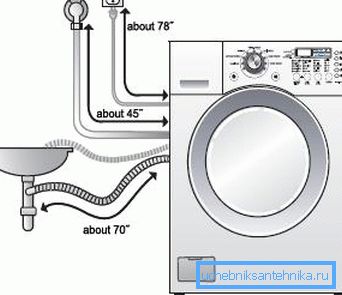

Consider how to connect the washing machine machine to the water supply, and since there are three main options, we will examine each in detail.

If you thought about how to connect a washing machine to the water supply system in advance, then during the installation of communications plumbers are instructed to remove the tap in a certain place.

This option has a number of undoubted advantages:

• A significant simplification of work, since you have a ready conclusion, and you do not need to spend time and money on the purchase and installation of a node on the existing water supply system.
• You do not need to block the water, which is very important when working in apartment buildings.
• Even if you put the equipment in a different place, the crane can be adapted to any needs.

Consider how to connect the washing machine to the water supply if the system is already running.

It has its own features, which you should definitely remember:

• Before starting work, communication must be shut down on a mandatory basis, otherwise you risk flooding the entire room.

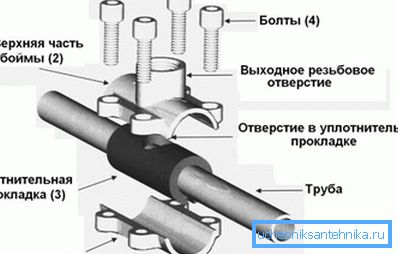

• For insertion into the pipe uses a special crimp sleeve. It is quite simple to work with it: a hole of a certain diameter is drilled in the pipe, after which a coupling is installed, with particular attention should be paid to the exact alignment of the hole in the pipe and in the construction.

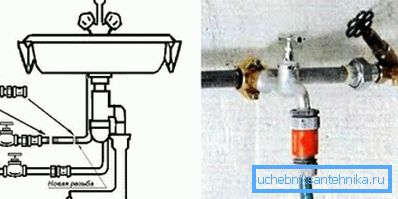

• The second, more correct option is when a piece of pipe is cut, a thread is cut into it, and first a coarse water filter is installed, and then a tap to connect the washing machine to the water supply. This provides better protection against the ingress of mechanical particles, as well as rust and scale.

Note! To protect the machine and increase its service life, a filter must be present in the system, at least at the water inlet into the dwelling.

Another way to connect a washing machine to the water supply is through a water tap. This option is suitable as a temporary and with rare use of equipment. When using this option, everything is very simple, the question of how to turn off the washing machine from the water supply is not worth it - it is enough to turn off the tap.

We considered how to connect a washing machine to the water supply and determined that everything is much easier. The main thing - to comply with the recommendations of the manufacturer.

Conclusion

To do the above work independently on the forces of any person. You do not need a special tool and deep knowledge in this area. The video in this article will vividly show some aspects of the workflow and help to understand its specifics even better.
