Flat tank for a shower - a godsend for summer resident

07-08-2018
Water supply

On a hot summer day, it is especially pleasant to refresh yourself in the shower. In the country, the device of a traditional shower stall in the house is not always possible, and there may be problems with water and electricity supply, therefore compact summer versions are used.

In this case, a volumetric tank is used not only for water storage, but also for creating the necessary head.

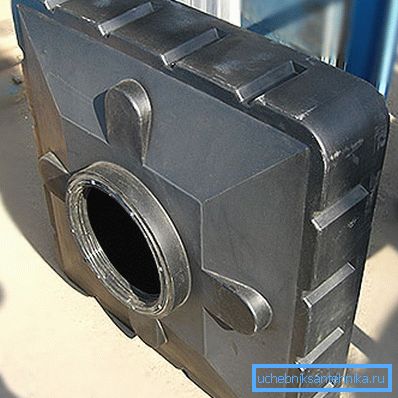

Useful thing in the country

Types and brief characteristics of tanks of different types

A flat tank for a summer shower can be made not only from durable plastic (see also the article Shower column - everything you need to know about this type of construction).

If you give a classification for the material used, you can select such types of tanks as:

  • plastic - can be both flat and barrel-shaped or cubic;
  • metal - used stainless steel;

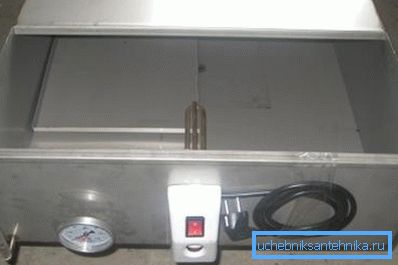

Tank with heating elements for heating

Note! Metal models weigh a lot, so the installation of their own hands can be very complicated.

  • recently appeared tanks from durable fabric. They can be used for drip irrigation, this “capacity” resembles a water mattress. Before pouring water, it can easily fit in a regular bag, so you can carry it with you to the dacha, this is true if there is a threat of theft.

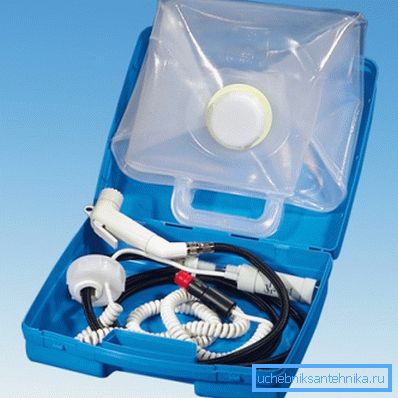

Compact shower

Also, all types of containers can be divided into 2 large groups:

  • heated - powerful heating elements are installed inside that allow you to quickly heat several hundred liters of water. Plastic flat tanks for heated showers are tied to a source of electricity, so installing them anywhere on the site will not work, the maximum is not far from the house;
  • without heating - in this case, the water is heated exclusively by solar energy.

Note! In order for the water to heat up more, it is recommended to paint the tank black. Plastic and so are made of black plastic.

Learn more about choosing and installing plastic shower tanks.

The choice of such containers is large enough, this issue should be approached with all the responsibility, because not only the ease of installation, but also the ease of use of the shower depends on it.

The advantages of plastic

Flat plastic tank for a shower of 150 liters can be called an almost ideal choice for a family of 2 people.

The advantages of this solution are as follows:

  • plastic is a fairly lightweight material, so even one person can lift such a capacity on the roof of a summer shower;
  • also this material is not afraid of water, does not fade in the sun, etc .;
  • if a model with an electric heater is not used, then the shower stall can easily be placed in the most secluded corner of the suburban area;
  • it is possible to fill such capacity with buckets or to connect it to the summer water supply system;

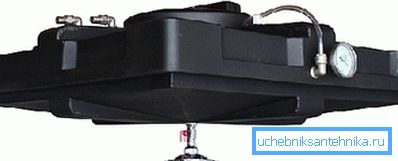

Heated models should be connected to the water supply
  • flat form is good in terms of sustainability. During a strong wind, barrel-shaped tanks, due to their greater height, are less stable than low ones. Additional fastenings will be required, which will complicate installation, with a flat container this will not be necessary, its height in this case does not exceed 20 cm;
  • plastic flat tank for the dacha shower can act as the roof of the shower stall. This is a great option for lightweight structures in which the frame is assembled from a metal profile, it will only be necessary to hang the side walls with dense fabric and the cabin is ready.

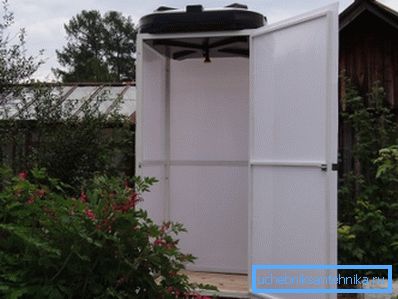

It is seen that the tank serves as the roof

Also worth noting is the low cost of such containers. For example, the price of a tank for 200 liters (1000x1000x320 mm) is only 3450 rubles, which is comparable with metal counterparts. The kit includes everything you need to connect.

Among the shortcomings, it can only be noted that it will be very difficult to clean such a tank from the inside. The fact is that the diameter of the lid is small and it will not be easy to wash it manually with the dimensions of the tank itself about 1.0x1.0 m.

In some cases, gardeners reported that the water gets not quite a pleasant smell because of this. But the problem was usually solved by simply adding cleaning products to the water — after that, the flat shower container became as clean from the inside as at the time of purchase.

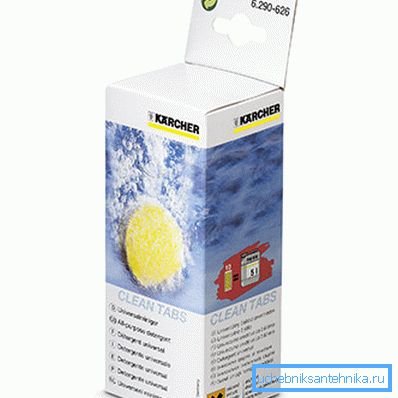

Any cleaning agent will do.

What you should pay attention to when choosing

When choosing a tank for a shower, attention should be paid to:

  • material. If metal is chosen, then it is best to purchase a stainless steel model. Sheet thickness will be only a couple of millimeters, and the appearance is attractive;
  • plastic must be strong enough, the wall thickness exceeds 10 mm. On the bottom there may be stiffeners - such elements are typical for large-capacity tanks. For example, a flat plastic tank for a 300-liter shower tank filled under the lid will create a substantial load on the bottom, so stiffening ribs are a forced step;
  • A breathable cap is required. If the container is sealed tightly, the water will bloom quickly, and without a lid a lot of garbage will fall inside - leaves, small branches, insects, etc .;

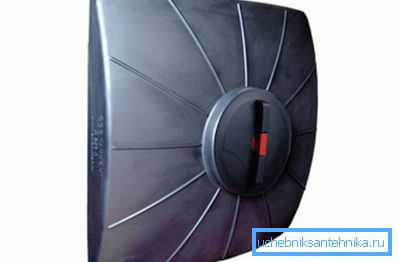

Purchased models are equipped with a breathable cap.
  • if the choice fell on a model with a heater, then you need to consider that the tank will need to be equipped with a water level indicator. Also, it will be mandatory to connect it to the water conduit, it will not be possible to fill it with buckets, there is no automation in the tank, which will turn off the heater in the absence of water;
  • as for the form, there are no special recommendations. You can only advise that the shape of the container coincides with the shape of the booth. For example, a flat drum for a shower is suitable for round stalls, and a tank for a square or rectangular shower;
  • the amount of tank chosen depends on the frequency of showering and the number of family members. Usually 300 liters with a head is enough even for a family with children at the rate of 2-3 visits per shower per day.

Shower structure

Since the shower is likely to be operated only in summer, we will pay attention to the usual frame construction, followed by plating of the frame with any light and non-transparent material.

Instructions for the execution of work will be as follows:

  • if it is possible, it would be nice to build a concrete foundation under the shower - columnar, tape or slab. If there is no possibility or desire to mess with this, then we can restrict ourselves to simply installing the frame on a flat surface. But for the winter such a construction would be better to disassemble;

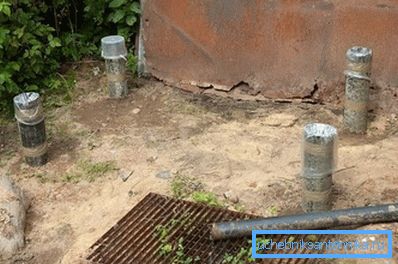

The photo is an example of a simple foundation.
  • after resolving the issue with the base, you can proceed to the construction of the frame itself. If a metal profile is used, both bolted and welded joints can be used. In the case of a wooden frame, the bars of the lower and upper trim are connected in half-wood;

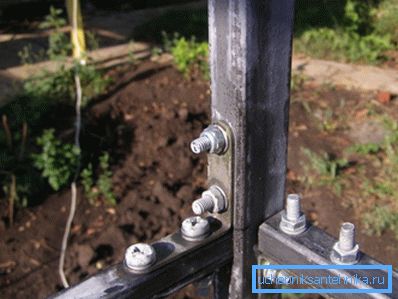

If the welding machine is not at hand, you can use a bolted connection
  • if we restrict ourselves to only vertical uprights at the corners of the frame, the structure will not have sufficient rigidity. Therefore, it is highly desirable to further strengthen the framework;

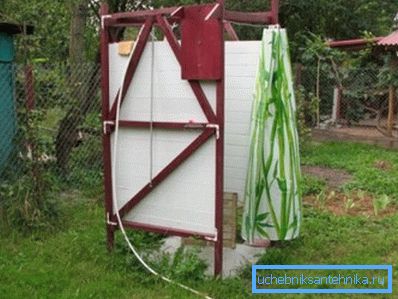

The rigidity of the walls provided
  • After that you can proceed to install the tank on the roof. The flat plastic tank for a 200-liter shower itself is fairly stable, so it is enough to simply lift it up and put it on the frame. Of course, you can additionally attach it to the top trim, for example, with a strong bundle;
  • wall cladding, tank connection to the water conduit (if any).

As for the organization of the flow, it all depends on the frequency of use of the shower. If a person takes it from time to time, then you can do without it, the water will have time to be absorbed into the ground. Otherwise, it makes sense to dig a separate drain hole near the booth and organize the drain into it.

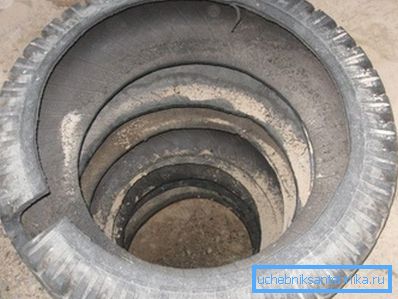

Drain pit may be the simplest, with fortified walls with tires

In conclusion

Tanks for the summer shower allow you to organize almost urban comfort at their summer cottage. In the warm season, such a shower is practically no different from the usual in a city apartment. Moreover, the construction of such a useful structure does not require significant expenses, you can do all the work yourself, and everyone can spend 3-4 thousand rubles for a tank (read also the article Enameled shower tray is an essential attribute of any bathroom).

The video in this article shows the process of assembling a shower stall using a metal profile for the construction of the frame.
