Gas ball valve: design features

24-09-2018
Water supply

The gas pipeline is necessarily equipped with stop valves. It is necessary for the possibility of isolation of emergency areas or areas in need of repair. The best thing today is to cope with this task ball valves for gas, which will be discussed in this article.

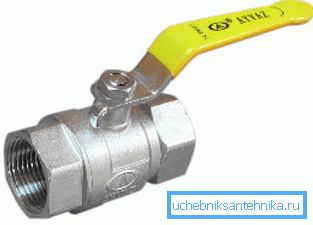

Photo of gas ball valve

Technical description

The first thing to consider is the device of a ball valve.

Structure

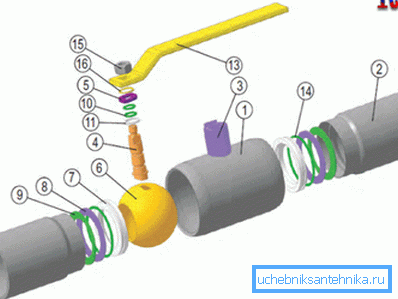

The design of the gas ball valve
Designation in the figure Title
one Cabinet part. Most often found in brass or steel.
2 Connection pipe. May be threaded or welded.
3 Throat part. Pass through the stock.
four Connecting rod Connects the handle and the ball.
five Washer restrictions.
6 Shut-off ball. Directly performs the closing and opening of the passage.
7 Saddle. Positions the ball in the right place.
eight Ring support. Holds the saddle.
9 Spring.
ten O-ring seal.
eleven Ring.
12 Flange.
13 Lever.
14 Seat seal.
15 Locking nut. Holds the handle.
sixteen Stopper.

Principle of operation

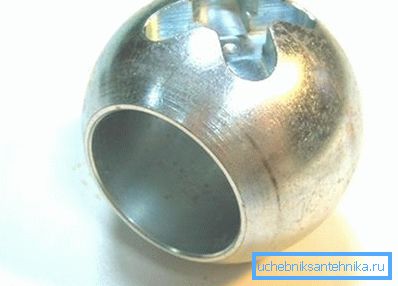

Steel hollow ball

The most important and main part of the gas valve in question is a shut-off ball, which has a through hole equal to the diameter of the connecting pipe and is connected to the switching handle of the rod.

The instruction of the functioning of such a mechanism is elementary:

  • A man with a slight movement of his hand turns the handle 90 degrees.
  • The stock transmits this motion to the ball.
  • The wall changes to a hole, creating an easy access.

Tip: it is not recommended to install the handle in the half-open position, as this significantly increases the wear of the structure.

Merits

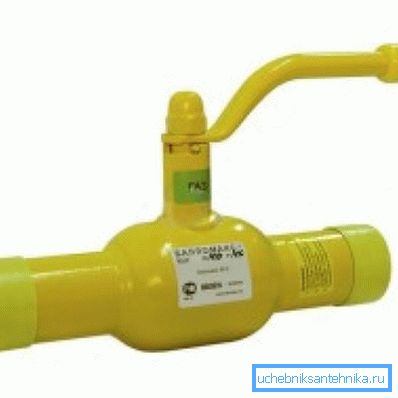

Steel Ball Valve KSHG

Ball valves for gas pipeline has a whole set of positive aspects:

  • Relatively low price. Achieved thanks to the simplicity of the design, eliminating the use of expensive components.
  • Low weight. It does not make the pipeline heavier, which allows it to be limited to standard pipe anchorages.

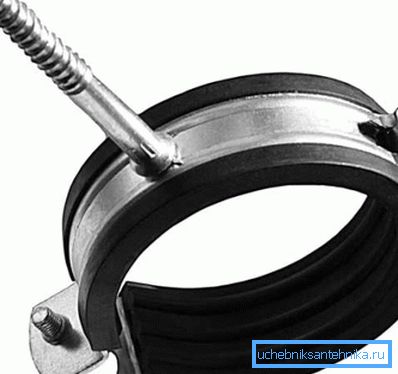

Conventional fastener for gas pipeline
  • High reliability. In the manufacture of materials used only high strength.

Tip: It is recommended to choose a crane material depending on the environment in which you plan to use it. So, for example, brass models will perfectly cope with corrosion processes, and steel ones will withstand more powerful mechanical loads.

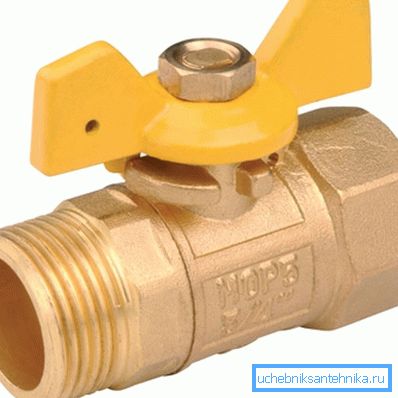

Reliable brass body of a gas ball valve is not subject to corrosion processes
  • High speed and ease of use by hand. It is enough to perform a short turn of the handle to change the position from “open” to “closed” and vice versa.
  • No need for maintenance. Such valves and fittings can be safely installed in hard-to-reach places.
  • High tightness of flow overlap. The closed position of the crane ensures complete sealing of the pipeline.
  • Possibility of installation even under water. At the same time, the penetration of fluid into the system is completely excluded.
  • Small size. They allow the product not to stand out against the background of the pipe itself and simplify its installation, which is easily performed by 1-2 people.

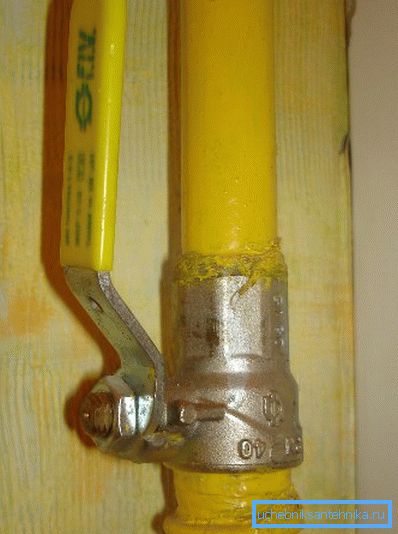

Ball Valve on Gas Pipe
  • Attractive appearance. The only eye-catching detail is the handle, which can be made in the form of a butterfly or an elongated lever. In any case, the technical unit looks quite aesthetic.
  • Easy installation. Perhaps both threaded and welded.

Technical details

Crane with a butterfly handle and a conditional passage of 15 mm

Let us analyze the parameters of the classical model for installation on the home gas pipeline:

Parameter Value
Section 1.5 cm or? an inch
The number of turns on the threaded connection 6-7
Tightness indicator Class A
Withstand pressure Not less than 6 MPa
Allowable temperature From -20 to +130 degrees Celsius
Body material Brass brand LS-59-2
Handle type Butterfly
Kohler handle Yellow in accordance with the rules of the pipeline designation
Gasket material PTFE
Threaded connection for pressure gauge G? / G?
Types of threaded connections Inner-outer and inner-inner
Product height 5.8 cm
Length with handle 6.7 cm
Body length 6.7 cm
External diameter 3.3 cm

Possible variations

It should also be noted that gas ball valves can differ among themselves in some particularities, namely:

  • When possible repair. There are collapsible and all-welded samples.

Tip: if you are installing the crane in an inaccessible place, it is better to opt for an all-welded product with a welded connecting pipe. So you will achieve maximum tightness, which is necessary with the condition of difficult maintenance in the future.

  • Down the aisle. Ball valves can be full bore and non-full bore.

In addition, there are models that have an electric drive that allows you to automate the process of closing and opening it.

Conclusion

The gas pipeline must be equipped with reliable cranes in case it is necessary to isolate its individual sections. In particular, this concerns the points of connection to gas appliances, as well as emergency hazardous zones. The best option is a ball valve due to its high reliability, ease of operation and many other advantages (see also the article Why install a Mayevsky crane in heating systems).

Examples of gas ball valves with different handles and threaded connections

The video in this article will provide you with additional information directly related to the materials presented. Choose for the arrangement of the gas pipeline only the best components.
