How much is a ring for a well of reinforced concrete

When you create any structure or structure, one of the main questions is the final cost of the project. Then you can determine the feasibility of this event. Therefore, before you start building a well from concrete rings, you should find out the cost of the well rings in finished form, plus delivery to the site, and if you decide to make them yourself.

Tip: when there is not enough time for a project and there are not enough forms for products, it is more expedient to purchase ready-made ones.

What is a concrete ring for a well

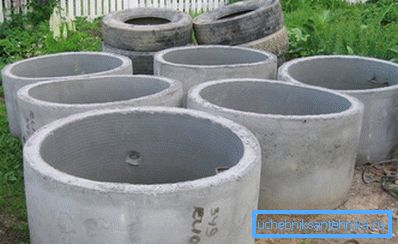

Reinforced concrete rings - a product of concrete, reinforced with metal fittings. Its technical characteristics must meet the requirements of GOST.

Today, they have found wide application in various construction works, for example, in organizing sewage systems, laying gas lines, drainage communications, and also of them often make drinking wells in suburban areas. A low price plays a special role in their good distribution among consumers.

Well rings made of reinforced concrete are significantly lower than any of their counterparts. This is due to the technology of their production, most of which is unchanged for many years. Also affects the cost of the ring for the well in finished form and low-cost components used in the manufacture, such as metal fittings and concrete.

Agree, it is difficult to find any housing construction, where there is no use for concrete products of this type. Laying the planned communication systems is a mandatory stage of construction work for residential facilities.

If you have lifting equipment available, the installation of reinforced concrete rings presents no difficulties, therefore the process of arranging communication systems is significantly accelerated. At the same time, sewage concrete products, due to their low cost, are quite attractive due to their long service life.

What affects the cost of the product

It looks simple and simple enough to look like; however, behind this lies a complex reinforced concrete structure that has a whole set of technical characteristics and is subdivided into many types.

Before you answer the question "how much are rings for a well made of reinforced concrete," you need to decide on their type and technical data of the product you need.

Usually they are selected in strict accordance with the performance of the upcoming work. The instruction prescribes the selection of products with an appropriate neck diameter, as well as acceptable characteristics of moisture absorption, thermal insulation and strength.

From this it follows that products of larger diameter will be more expensive. In addition, the cost of the well ring will be affected by the increase and additional functionality, for example, the lock device. Although even in this case, the cost of rings for a well made of reinforced concrete can be significantly lower than the main competitors, therefore, the products have been popular for more than a dozen years in modern construction.

How to choose

1. Before you pay money for the products, determine the purpose for which they are purchased, since different versions of the rings have different quality standards and standards for their use.. For example, for the device tunnels for electrical, thermal and telephone networks, as well as for structures designed for wastewater treatment, they may have a different diameter, height and weight.

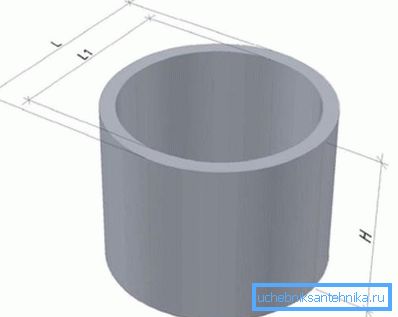

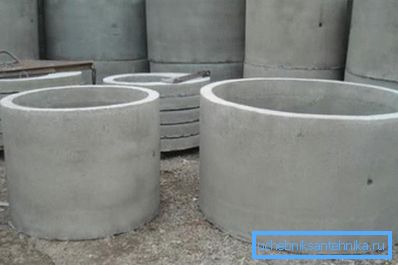

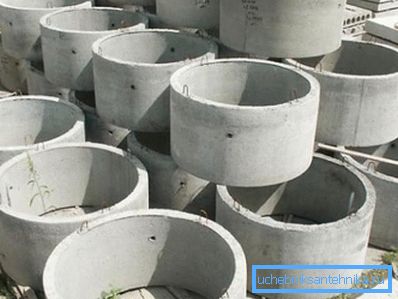

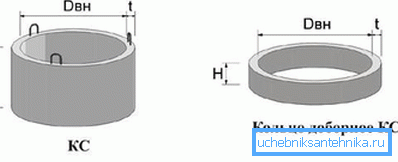

2. The standard parameter of the diameter of such concrete products ranges from 1 m to 2 m, height - 100-900 mm. Weight depends on the size of products and varies between 43-1470 kg. Products are marked with abbreviations KC, KS, KCD, KTsP and K, where the number after the letter indicates its diameter. The most popular for the manufacture of wells are considered to be the COP or wall well variants, with the help of which the neck is formed. There are three standard sizes of products with a standard height of 900 mm, but having different diameters, for example, KC 10 - O 100 cm or 1 meter, KC 20 - O 200 cm or 2 meters. In addition to the main dimensions, manufacturers offer products with other parameters.

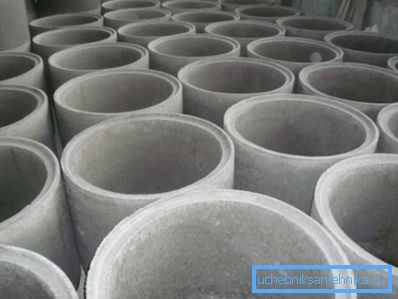

1. The next thing you need to pay attention - the design of the butt. The usual option is made with a flat, but if the rings have folds for joints, then this design has a lock. The latter option is justified in the construction of wells in the area where the earth rocks are unstable. Due to their tight connection, the opportunity to eliminate the displacement of the rings under the action of quicksand appeared. In addition, this method greatly simplifies and speeds up installation. At the same time, variants with a lock have another marking that is different from ordinary well rings. For example, COP 10.9 s means: the inner part has O 1 m; "9" - standard height 900 mm; “C” - there is a selection or lock in the product.

Quality certificate

Well structures must be:

• airtight;
• environmentally friendly;
• durable.

In this regard, for the manufacture of concrete rings used only high-quality concrete B15, which meets the norms and standards. Therefore, do not hesitate to ask the seller a certificate of quality for the product, which should indicate the components from which it was manufactured.

Tip: it is recommended that wells of a depth not exceeding 7 m be made of reinforced concrete rings.

Conclusion

The cost of concrete well rings in production depends on the material, workers' remuneration and additional costs. If you make them yourself, then you can save some money. In the presented video in this article you will find additional information on this topic.
