How to connect a car wash to the water supply - some useful
Connecting the high pressure washer to the water supply is a process that requires special attention. Therefore, it should be considered in more detail and in detail, because the wrong connection significantly reduces the service life of equipment and causes damage to expensive nodes. Compliance with simple recommendations will ensure the smooth operation of the equipment over a long period of time.
Factors affecting equipment durability
There are a number of seemingly insignificant nuances that in fact have a very strong effect on the equipment life and can cause a rapid failure of some nodes:
| Direct connection | Connecting the minisink to the water supply is highly undesirable. Although in this case, a higher pressure is provided in the system, but air bubbles present in the tap water cause permanent detonations in the pump, due to which it wears several times faster and eventually fails. This option can be used only occasionally in case of emergency. |
| Water intake from the well | This option is also undesirable, since the pump is designed in such a way that it has two types of cuffs that make up two stages. The first of them works to capture the liquid entering the structure, and the second to create enough pressure in the system to operate. When collecting from deep water, the first stage works almost dry and is subject to heavy wear. |
| Fence from the tank located on the dais | This is the most preferred option for small devices. When water is pumped from a container located half a meter to the surface, good pressure is ensured and the system is operating optimally. |

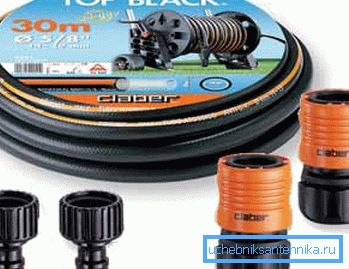

| Connection reliability | Due to the fact that the system works effectively only at a certain pressure, it is necessary to pay close attention to the tightness of all interfaces. Not even the slightest leakage is allowed, as they negatively affect the operation of the whole mechanism as a whole. |

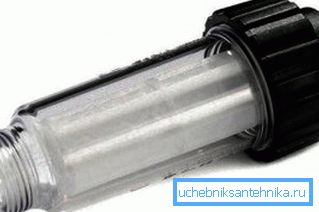

| Presence of filter | Instructions for use of the equipment without fail prescribe the presence of a fine filter in the system. If you make a connection by hand, be sure to consider the presence of this node before minisink or at the outlet of the tap or container with water. The price of this item is small, and most often it goes in the delivery package. |
Tip! You should not save on filter elements - the cleaner the water, the longer the equipment will work.
Recommendations for the correct connection of the system
All washes can be divided into two large groups: household products and professional systems. They differ significantly both in characteristics and design, therefore, the connection of each of the options is done in its own way.
Household car wash high pressure

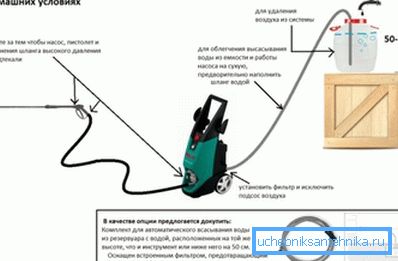

Consider how to connect the high pressure washer to the water supply using a separate container:
- It is best to purchase a special kit for automatic water intake from a tank located in the same plane as the installation or above it. The system already has a filter, so you can not worry about its protection from contamination.
- For work, you will need any capacity with a capacity from 50 to 100 liters (it can be more), water is poured into it. The advantage of this option is the fact that air bubbles are easily removed from the liquid, and it enters the system in exactly the state that is necessary. It is also important that the tank is clean, for this it should be periodically washed.

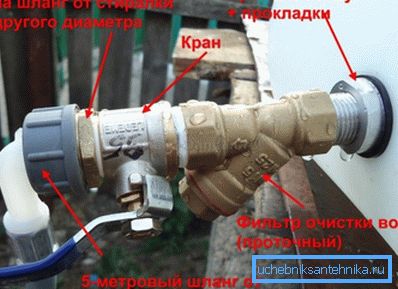

- Water can be drawn through a hose, simply inserted from above, or you can do everything more thoroughly and cut a hose in the bottom of the tank.. It is possible to additionally include a coarse filter in the system so that the water is purified even more qualitatively and the fine filter is less clogged. As a supply plumbing hose, you can adjust the kit from the washing machine.
- It is advisable to place the tank at an elevation of 0.5 to 1 meter, this will facilitate the work of the pump and provide the best pressure in the system.. The supply hose should not be too long either: 5 meters is enough to ensure the mobility of the system, and to maintain the necessary pressure during the flow.
Another recommendation: there is one technique, how to connect the minisink to the water supply system and reduce the amount of air in the liquid - you can turn on the fine filter flask in the system, as it passes through this node, most of the air is retained.

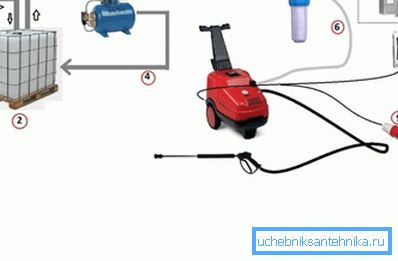

Professional installations
As for this option, it is highly complex, and therefore the work on the connection is much more difficult and responsible:
- For this option you need a capacity from 500 l to 1000 l. It provides the required supply of water and allows it to settle well to remove air. The main thing - to provide water if necessary.
- Professional car wash without plumbing must be equipped with a pumping station, which provides the necessary pressure in the system. The pump is installed immediately behind the tank and is turned on when pressure is reduced in the system.
- A shut-off valve is installed behind the pump, which is closed when the equipment is not in use.. This reduces the load on the system.
- Next, put the filter or the whole filter block., which are designed to provide the highest quality cleaning to ensure the best protection equipment.
- You should also take care of the power supply; for this, a 380-volt line should be connected to the premises.. The system is connected through a protective shutdown device, since high voltage and humidity create an increased danger, and any failure can lead to the most dire consequences.
Note! Based on the above, we can say that the main thing when connecting sinks is to ensure good water quality and clean it from even the smallest contaminants.
Conclusion
The video in this article will tell a few more important facts regarding this topic. If you follow all the recommendations, you can guarantee the smooth operation of the equipment over a long period of time.
