How to connect a washing machine machine without plumbing:
In the summer season, many people leave the city to relax and spend time in the fresh air. However, this way of relaxation is overshadowed by the lack of communications, which makes it necessary to abandon the use of some devices used for domestic needs. In this case, it is proposed to consider information on how to connect the washing machine without running water.
Water supply methods

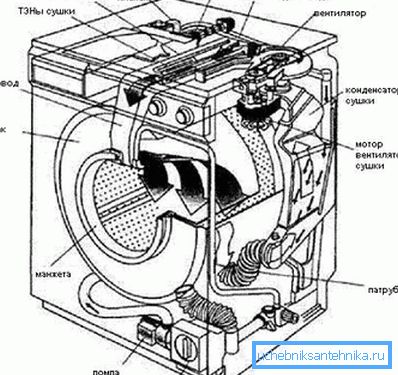

Modern models are fully automatic, so they can pour the right amount of liquid, add detergent as needed, rinse, spin and drain. Programs can vary greatly, but the principle of operation remains the same.
The water first enters the compartment intended for detergents, after which it passes the rubber pipe and enters the tank, equipped with a rotary drum. After completion of the main process, the liquid is removed from the inside to the sewer system or directly to the cesspool.
Despite the need for constant water supply, connecting the washing machine without running water is still quite possible.
Manual bay

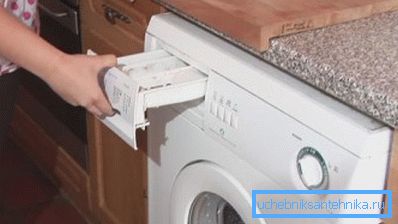

This option involves filling the tank through a dispenser designed for powder. The design of modern models does not imply the presence of a pressure-sensitive sensor. In this regard, the devices begin to function only when a certain level of water is reached.

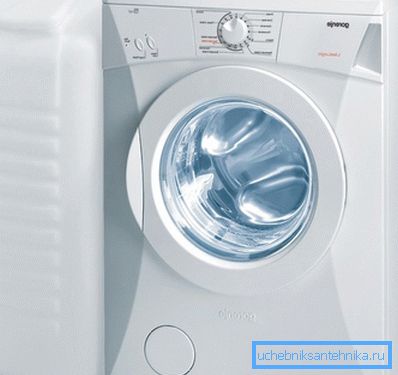

The bay can be made with a regular watering can. However, the device will pick up liquid several times, which means that with this option it is necessary to exercise constant control in order not to miss the next portion of the bay. Something like this will work washing machine without connecting to the water supply in the simplest case.
Natural filling from the tank
It is possible to organize the natural flow of water directly from the tank, which will be at a certain height, in order to create a small pressure. Thus, the liquid under its own pressure will get inside the device.
Next is the installation of a tank in the attic:

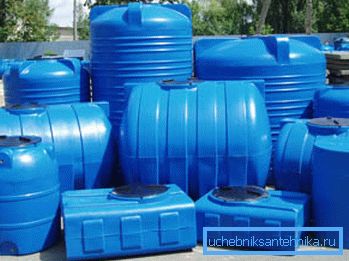

- To begin with, the tank itself is prepared.. It is better to make it out of a barrel with a capacity of 100-200 liters. At the bottom of the tank is a special hole for connecting the hose.
- After that, a stable platform is prepared for the tank.. From the bars of 10,050 mm and planks 25 mm thick, the supporting structure is made. It, by the way, can be installed, not only in the attic.
- Hose hole is drilled in horizontal plane.. It must correspond to the diameter of the conductive element. The drill is used as the main tool.
Note! When the machine is connected in this way without an appliance, the important role is played by the height of the tank. The higher this indicator, the greater the pressure.
Forced feed from tank

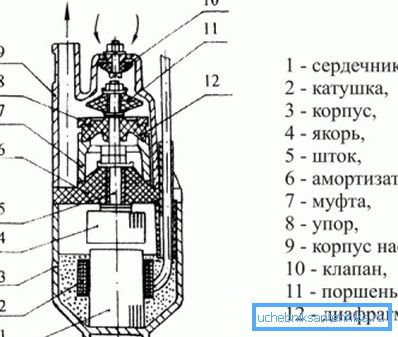

In this situation, it is not necessary to place a container with water at a height, since the liquid will be supplied with a vibrating pump. The principle of the hydraulic device is to pump the liquid when the electric valve opens. The system is fully automated. (See also the article Pumps for water supply from a well: features.)
When the water supply device is forcedly installed, a special electromagnetic relay is installed, having a connection to the pump and valve. The control device must match the starting characteristics of the pumping device.
If an automatic washing machine is connected without connecting to the water supply system using a vibration pump, then it is impossible to make the connection directly by any means. At the time of switching on the device, operating from a voltage of 220 volts, the switching and control board may burn.
This option is considered the most optimal for country houses, as it allows you to fully automate the process without any additional conditions.
Features of the relay
Above were presented information on how to connect the washing machine machine without running water using a vibration device for pumping fluid. However, this option assumes the presence of a relay in the system so that when the valve is opened, automatic water supply is provided.
Therefore, it is recommended that you familiarize yourself with the features of the operation of this device.

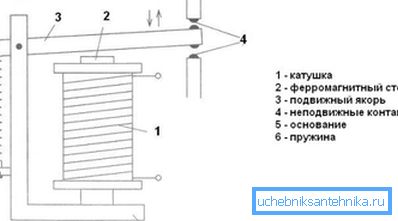

- The operation of the device is based on the use of electromagnetic forces, which are formed when current passes through the coil.
- Relay parts are mounted directly on the base and covered with a special cap.
- When a signal is applied, the anchor is attracted by an electromagnet, thanks to which the contacts are closed or open.
- The controlled circuit has no connection with the control branch, that is, dry contact occurs.
- Some models are equipped with resistors for more confident operation of the device.
Attention! When you think about how to connect a washing machine without plumbing using a pump with your own hands, you usually choose the option with a relay. The price of this device is relatively low.
As a conclusion
After reading the above information, each owner of a country house will know: whether it is possible to connect the washing machine without running water or not. This manual will allow you to choose the most suitable method for certain operating conditions.
The manual bay technique is recommended to be used only in emergency situations. After the video in this article has been viewed, it will be better to navigate the topic.
