Recently, many people have installed electric heaters in their apartments in order to get uninterrupted access to hot water at any time. At the same time, it is necessary to say that over the past few years a huge number of such devices have appeared, which are distinguished by their technical characteristics and design. Therefore, questions about how to connect the boiler to the water supply in the apartment of a particular model are of great interest to modern users.

Product selection and their features

First you need to say that you should not pay attention to the company. In this case, there is a high probability of overpaying for the brand, since the design of such heaters itself is quite simple. However, you should pay attention to the warranty, because it will help in solving a lot of problems in case of failure during operation.

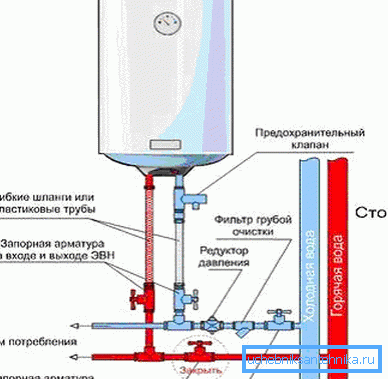

Graphic representation of the connection scheme of all elements during installation

How to choose the right model

First of all, you should pay attention to the principle of water heating.. The fact is that there are several systems for the implementation of this process, which are described by the instruction manual for a particular model. At the same time, experts advise to opt for products that use the ionic principle of polarization for heating, since it is this one that has the greatest efficiency and, therefore, saves.

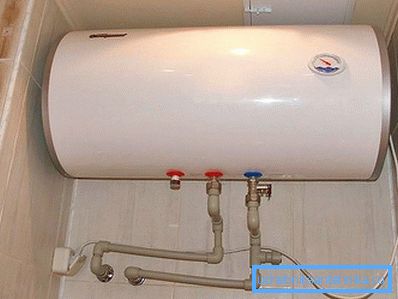

The location of the insertion points on the product plays a large role in choosing a particular model.

Next, select the appropriate volume of the tank. Modern manufacturers practically do not limit in this area the buyer, releasing tanks from 20 to 100 liters or more. Therefore, to determine this parameter should be based on personal preferences and the number of users.
Special attention is paid to the control mechanism on which the price of the product often depends.. It is worth acquiring designs in which you can adjust the heating level to the nearest degree and set the delayed start mode. In this case, it is not bad to have a separately programmable economy mode, which allows for daily monitoring.

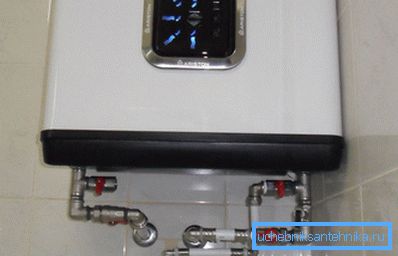

Electronic and programmable designs allow for more complete monitoring and control of the process of heating water

You also need to check with the seller of what material, and what method is made tank. Seamless stainless steel constructions behave best of all, since it is this one that provides the longest service life. However, if the manufacturer gives a fairly large guarantee on this element (7 years or more), then you can ignore this item.

Tip! It should be noted that similar designs can have quite large dimensions. Therefore, making a purchase, you must immediately agree on the delivery as a discount.

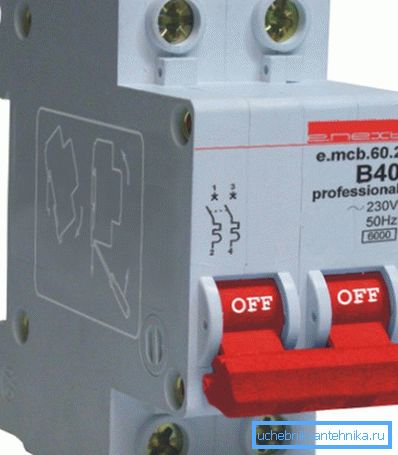

Packetner not only serves as a protective mechanism, but also serves as a kind of power off button

Optional equipment

Usually, guides explaining how to properly connect the boiler to the water supply system strongly recommend installing a separate branch of the electrical network, which you need to create yourself, by withdrawing from the junction box near the meter. Given this, you should purchase a copper cable of the required length and cross section, which depends on the power of the product. It is also recommended to buy a protective circuit breaker or RAM with a teacher.

Sometimes it is enough to install regular RAM, which will also serve as a bagger.

If the construction will be installed with your own hands on a ready-made pipeline, then it is necessary to purchase pipes and a fitting, which is useful for creating a drainage system for hot and cold water. You should also buy the appropriate hoses, the right length. After installation, they should not sag or be too tight.

Tip! Most experts recommend additional purchase of wire that can be used to create a ground.

Sometimes it is worthwhile for yourself to draw a diagram of the whole principle of connection, in order not only to have a visual guide, but also to know what materials you may need.

Installation

Usually, a guide on how to connect the boiler to the water supply is divided into two parts. The first one explains how to create a water supply system, and the second chapter explains the moment of connecting the product to the electrical network. In this case, both of these points are equally important and require increased attention.

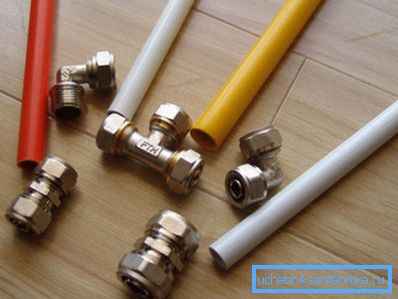

These types of pipes are best suited for this job.

Water pipes

First of all, the manuals describing how to connect the boiler to the water supply system, are advised to divert from the pipes of hot and cold water in the home wiring. However, this should be done as close as possible to the installation site of the device. To do this, just cut the pipe and mount the tee.

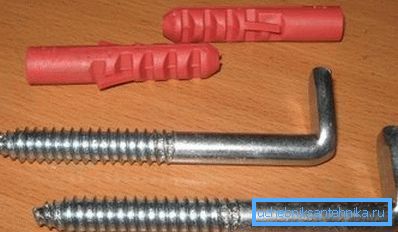

Usually, fixtures for fixing the product are included in the package, but sometimes you have to purchase it separately.

Next, a pipe is attached to the outlet, the length of which must be such that the hoses are located in the correct position.
Then, experts advise installing coarse filters and taps that block access to water. In this case, a typical connection of the boiler to the apartment's plumbing system may require the connection of a non-return valve in order to prevent outflow if damaged.

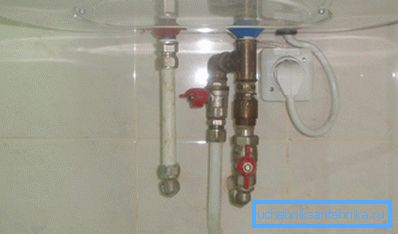

The installation scheme with a tee at the end is very original, although many experts consider it impractical

After that perform the connection of the hoses, which are connected to the product. For hot water, a boiler outlet marked red is used, and cold liquid must flow through the blue pipe.
A typical scheme of connecting the boiler Ariston to the water supply system suggests the presence of a pressure valve on the product. Attach to it a small pipe in the form of a hose connected to a drain pipe system. This is also used on units of other manufacturers.

Tip! For such works it is best to use metal structures. They are quite practical, do not need additional materials or complex installation. However, you may need to have an appropriate adapter.

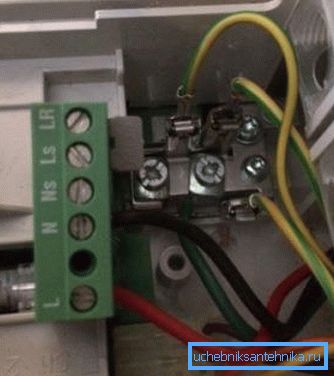

Typical wire placement when connected to power

Electrical system

Typically, the scheme of connecting the boiler to the plumbing in the apartment is quite simple, but when it comes to electricity, many beginners begin to experience difficulties. However, almost all devices of this type have the appropriate scheme by which you can make the connection wires.

It should be borne in mind that you also need to connect the AZD or bag, which also has a layout of contacts and wires. Therefore, before starting to work it is recommended to first create a small project with the display of all elements.

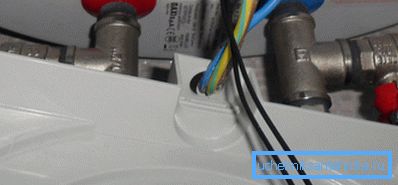

After installation, there should be no non-insulated or hanging wires.

It should be noted that to perform such installation may require certain skills, among which is safety. Therefore, guidelines explaining how to properly connect the boiler to the water supply system strongly recommend that professionals trust this process.

Practically all similar products are equipped with places for connection of grounding. Therefore, it is worth using them to make a connection to the home circuit, if any. Grounding pipes is prohibited.

Tip! All electrical devices must be protected from moisture, and the junction of the wires must be insulated.

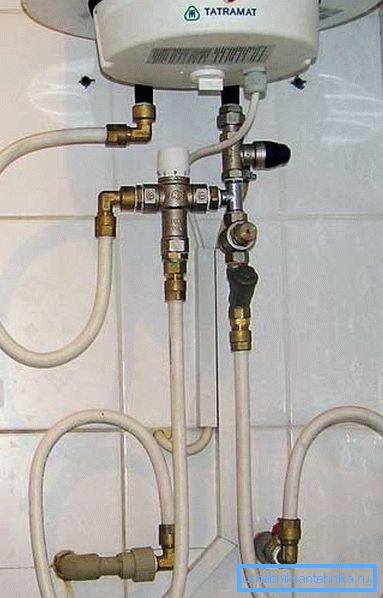

Peculiar installation with a designer approach

Conclusion

After studying in detail the video in this article, you can get more detailed information on how such works are performed. At the same time, taking into account the article outlined above, it is necessary to conclude that some stages of installation may require the performer to have a certain education and appropriate tools.
