How to make a caisson for a well

Today, people have learned to equip their homes with the benefits of civilization, even if there is no centralized water supply nearby. All that is needed for the uninterrupted supply of water to the house is the drilling of a well, the laying of a water pipe and the installation of a pump. True, in order to protect the system from freezing and unexpected failure, you will need a special insulated sealed container in which the equipment is installed. Let's take a look at how to make this container and which material is better to choose?

What are caissons

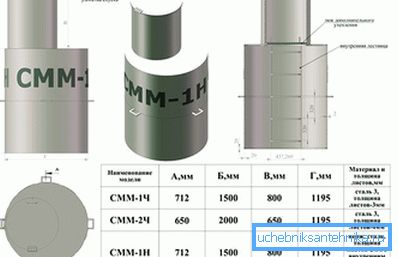

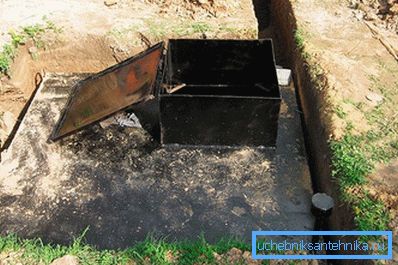

Ready-made caissons, which are sold by specialized firms, can be of any shape and are made of various materials. The sleeve itself is usually cylindrical in shape, but if the device is made of metal, it is more expedient that the design be in the form of a rectangular box made using a welding machine.

They can also be plastic, metal and reinforced concrete. They can be made by hand, significantly saving at the same time.

Each material has its own advantages and disadvantages.

Plastic:

• durable;
• low cost;
• installation does not require the use of additional equipment and labor.

Metal:

• material is quite expensive;
• has an average lifetime, as it is subject to corrosive formations;
• the structure cannot be installed alone, as it is heavy.

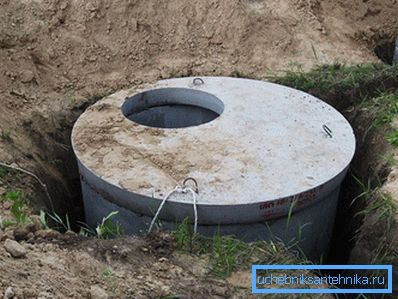

Reinforced concrete:

• durable;
• there is difficulty in installation and installation because of the large weight - a truck crane or a winch is required;
• when high groundwater flow can be washed and destroyed.

Unlike plastic and metal caisson, reinforced concrete has a high output cost, as you will have to pay not only for the rings, but also their installation.

Equipment

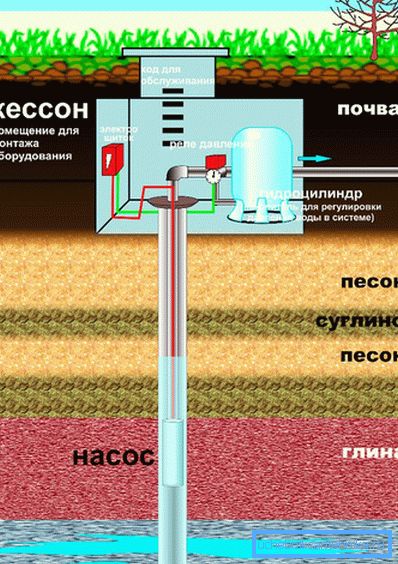

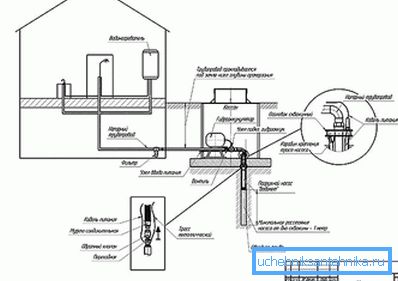

The caisson is not only the device where the pump is inserted for pumping water. As a rule, important parts of the plumbing system are assembled and assembled inside this tank:

• Shutoff valves.
• Expansion tank.
• Monometer
• Filter.
• Automatic pump control panel.

With its help, all internal links are well protected from exposure to external temperatures. In addition, the device makes convenient access to all links and key pieces of equipment, which means you can replace or repair them at any time.

Installation of a caisson in a water well will not only protect pumping equipment from low temperatures, but also improve water quality. It will not be contaminated during the rise of groundwater; it will be protected from the ingress of foreign substances and microbes.

How to install

Installation and equipment requires not only certain skills, but also impressive physical strength. Especially if the device is made of reinforced concrete rings or metal.

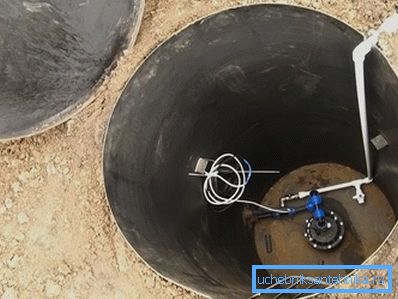

If a metal model is chosen for installation, then a Bulgarian and a welding machine will be needed to assemble it. In addition, such a caisson must necessarily be treated with an anti-corrosion compound.

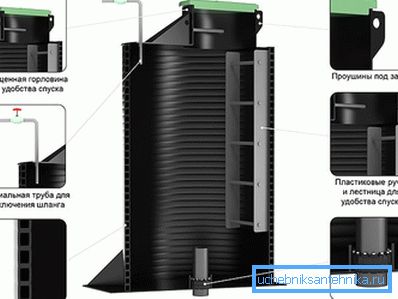

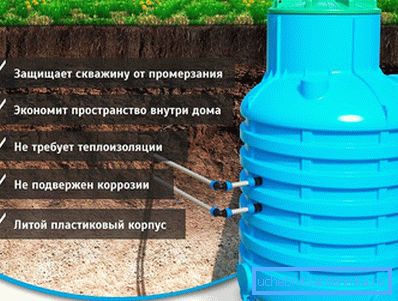

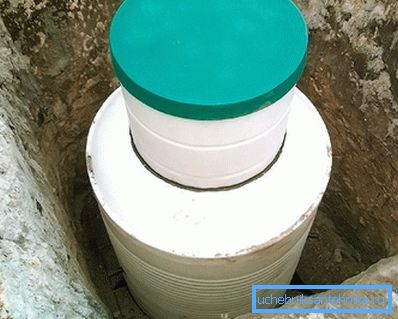

The simplest and also easy to install and operate is a plastic container for the well. The design is quite light, it is quite possible to mount together.

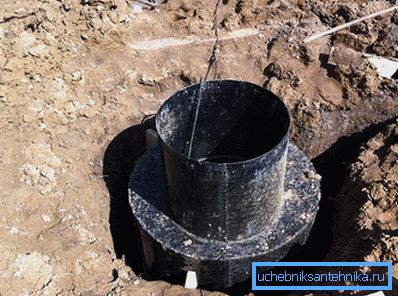

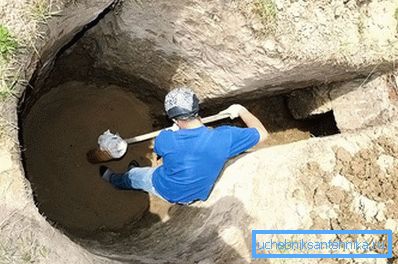

Plastic has also sealed seams. The tank is placed in a pit, for digging which is better to hire experts or a small tractor with a bucket. The diameter of the pit should be 15–20 cm wider than the diameter of the tank itself, and the depth of the box is approximately 10–15 cm lower.

As a result, the caisson must stand in the pit so that between its walls and the ground of the pit there is an empty space, and the device itself rises above the ground.

Its cover should remain elevated from the ground to avoid dirt entering the cylinder.

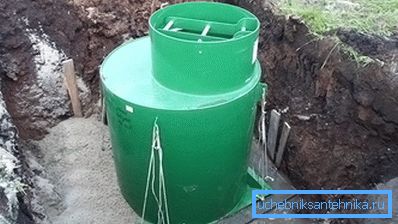

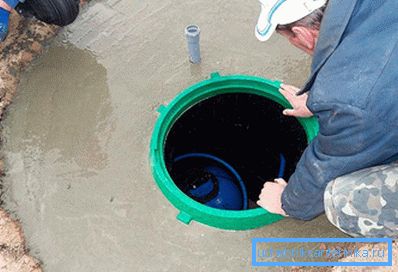

Next, the tank is lowered vertically on wooden bars, and all pipes are laid through special nipples. After passing an electric cable through one of the pipes, the voids around the device and on top are filled with sand-concrete mixture or sand. You can run a plumbing system and enjoy the benefits of civilization.

Modern devices are available with built-in water-lifting equipment, which speeds up the installation process. Therefore, if you do not know how to do it correctly, then the simplest option is to buy ready made from polypropylene.
