How to make a filter for the well: the simplest options

Typically, the water in the well is extracted from a kind of pockets or layers. In this case, quite often various foreign substances enter the pipe in the form of sand or rock particles.

That is why many owners of such structures are interested in the question of how to make a filter for a well with their own hands.

Types and their production

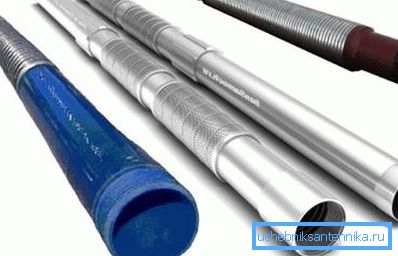

First we need to say that this article will talk about the products that are placed in the well itself. Conventional water treatment systems should be factory-made, as they must meet certain requirements..

In this case, the installation manual does not give clear instructions on the manufacture of specific types of these products, since there are quite a few of them, although most of them can be divided into two types.

Net products

• These designs can be considered the most simple and common, but for the manufacture may require special materials.

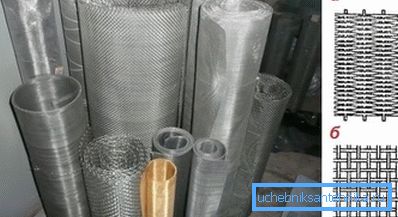

• The fact is that very often the manuals telling how to make a filter on the well with their own hands simply indicate that it is necessary to purchase a metal grid with a small cell. However, they do not talk about the material of its manufacture.

• The problem is that it is best to use the same metal from which the pipe itself is made, the housing or the adapter to the pump. That is why, in order to create this area, stainless steel and a mesh of the same material are chosen, and if necessary, other systems are attached to the finished structure. (See also the article Which Pump is Better for a Well: Selection Criteria.)

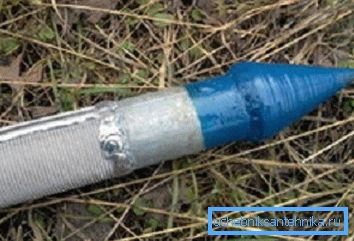

• To begin with, a portion of the water pipe is made, which will sink directly into the aquifer. In some cases, the end of such a pipe is sharpened, and in the place where water is supposed to go through, they make several holes chaotically.

• It is worth noting that usually the question of what kind of filter to put on the well is asked if systems using the type of Abyssinian well are used, which use surface water pumps. That is why the holes begin to make at a distance of 20 cm from the end of the pipe.
• Then the net is wrapped around the area and fixed by soldering. Moreover, if the cells seem to the master too large, then you can install it in two layers.

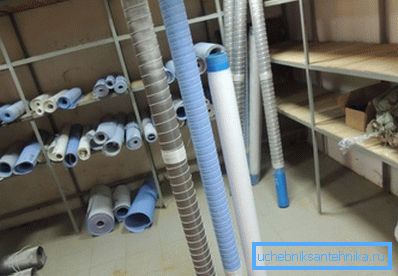

Tip! Sometimes the process of manufacturing such systems takes too much time. Therefore, you should pay attention to factory products, the cost of which is not too high.

Wire Structures

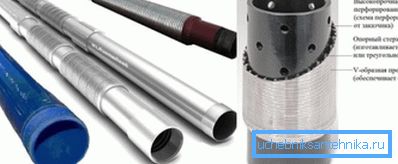

• Quite often, manuals on how to make a filter for a well do it yourself, suggest using structures made of wire.
• To do this, they also try to make a separate zone on a pipe of one metal with the chosen material for subsequent work. That is why experts recommend to pick up the wire under the water supply, and not vice versa. Otherwise, the price of the entire system can greatly increase.

• Then in the pipe also make holes through which water will flow.

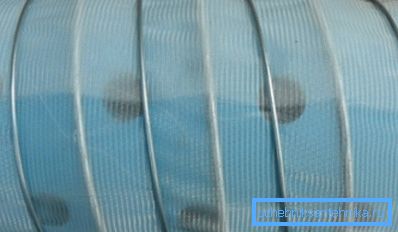

• At the next stage, they begin to wind the perforated area with wire, trying to wind it closer together. Thus, the fluid will flow through the cavities between the turns.

• It is necessary to say that when choosing which filter to put on the well, many are inclined precisely to the wire variant. The fact is that the thickness of the material significantly increases the service life.
• It is also worth noting that such systems are made quite simply and do not require the possession of certain skills. It is enough to have a trill with a drill of the required diameter, a small amount of wire and mesh, and it is also desirable to have a soldering iron in order to fix it.
• Most professional craftsmen prefer to combine several cleaning methods. They install both wire and mesh, creating a small air space between them. However, it is these systems that have a shorter service life, because they get clogged up very quickly, but they are the best to filter.

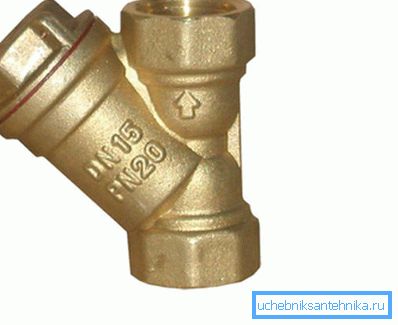

Tip! Do not assume that the filters of this design can completely relieve the system from various kinds of inclusions. Professional masters recommend installing additional sewage treatment systems for the well in front of the accumulator or non-return valve. It is also a good idea to use fine filters so that the water is suitable for drinking.

Conclusion

Watching the video in this article, you can get more information about the filters for the well. Also based on the text that is presented above, it is necessary to conclude that there are a lot of different water filters, but for these purposes they usually use separate structures or systems mounted on the pump.

That is why you should first decide on the type of organization of the water supply from the well and only after that choose the appropriate equipment.
