How to make a shower in the bath with their own hands at the

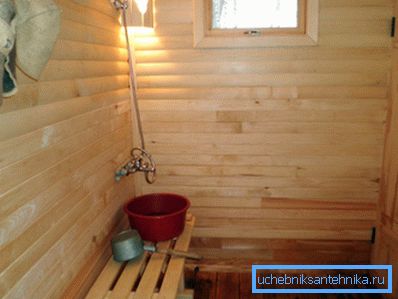

The washing room is an integral element of any modern bath or sauna. Therefore, when arranging the steam room, you should immediately think about the organization of the shower. To help in this matter below consider how to make a shower in the bath at a country site.

Shower arrangement

The shower device in the bath involves the solution of several problems:

• Ensuring water supply in the bath;
• Heated water;
• Providing drainage and arrangement of booths.

Below is a step by step look at how this is done.

Water supply

As a rule, the need for the arrangement of the shower in the bath occurs in the cottages and suburban areas, where there is no centralized water supply.

Therefore, to supply water to the sink you will need:

• Storage tank;
• Pump to supply water from the source to the tank;
• Pipes or hoses for arranging water supply.

Of course, you can enter water in buckets and in buckets, but in this case, you will have to spend a lot of time and effort before each swim. Therefore, it is more expedient to hold the pipeline once and purchase a pump. The price of the latter depends on the source of water supply with which he is to work, as well as the depth of the water.

Heating

The easiest way to ensure water heating is natural, when the tank is installed on the roof of the bath and is heated by the energy of the sun. However, if you want the water temperature to always be comfortable, this option is not suitable, since in this case sunny weather and quite a lot of time are required for heating.

Therefore, it is necessary to implement forced heating in one of the following ways:

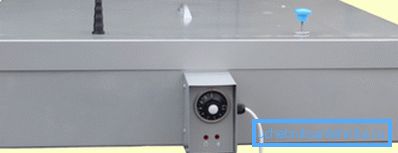

Most often, a tank with heating elements is used to heat water, as this is the simplest and most convenient option. True, the use of electrical equipment leads to significant energy costs.

Therefore, you can use more economical systems and devices that are listed below:

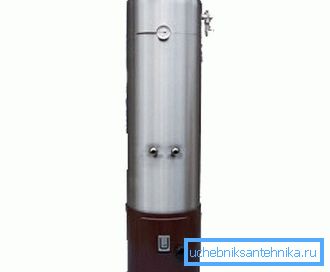

• Boiler on the wood - especially relevant in cases where there is a forest nearby.

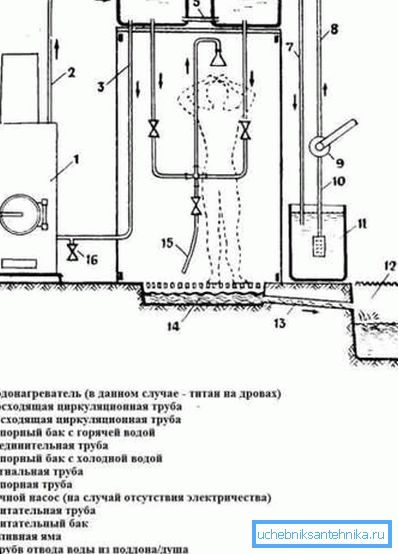

• An alternative to the boiler is the arrangement of a small bath stove shower. At the same time to ensure the heating of water in the stove, a heat exchanger is installed.
• solar collector - as it is not difficult to guess, the water is heated by the energy of the sun. Due to the special device of the collector, this option is much more efficient than the above-mentioned natural heating.

• Flow heating with a blowtorch - somewhat exotic, but at the same time quite an effective way to obtain warm water, which can be implemented independently.

Note! Since the water in the tank can reach very high temperatures, a second cold water tank must be installed in the bath. In such a case, it is possible to ensure mixing of the cold and hot stream before the shower head can enter the inlet.

Arrangement of washing

When issues with the supply of water and its heating are resolved, you can begin to arrange the washing. However, before you install the shower in the bath, you still need to perform the drain hole and ensure that it drains into the washroom.

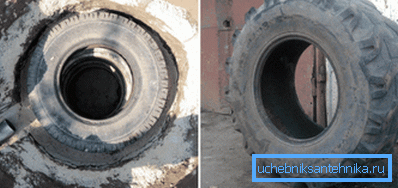

As a rule, the pit is dug a few meters from the bath. The bottom of the finished pit must be filled with sand and rubble. The walls can be trimmed in different ways, the easiest of them - to put car tires.

If the pit is large, the walls can be lined with bricks or even poured with concrete. It should be noted that the capacity of the pit depends on the number of people in the family who will visit the bath and take a shower.

Now, when the pit is ready, in order we consider how to arrange a shower in the bath:

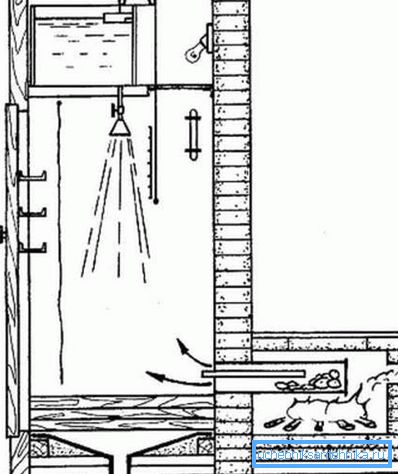

• First you need to install a tank (s) for water. As a rule, the tank is located in the attic of the bath. At the same time from the tank are pipes to the future shower. At this stage, the water-heating equipment is also installed and connected.
• Next, it is desirable to waterproof walls washing. To do this, you can use the film, on top of which are mounted strips and plastic panels. A more complex option - the implementation of plaster and surface finishing with tiles.

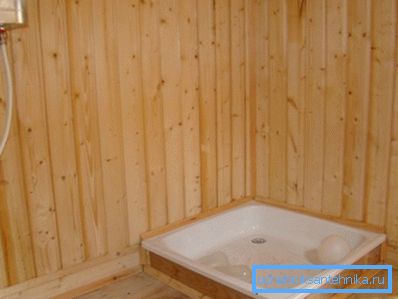

• Then a pallet is installed at the location of the shower. The bowl must be strictly vertically, so in the process of adjusting the legs, you must use the building level.
• The joints between the walls and the tray should be treated with silicone sealant for shower cabins. Otherwise, water will seep out, which can lead to rotting of the wood (if the bath is wooden) and the formation of mold.

• Next, you need to connect the siphon of the pallet to the drain pipe, which drains out and directs into the drain hole. The bottom of the pallet must always be located 10-15 centimeters above the drain pipe.
• Field installation of the pallet should install all the necessary accessories for the soul. If two tanks are used, then in front of the tee, which serves as a mixer, valves are installed to adjust the hot and cold flow. After that, the tee connects to the pipe on which the shower head is attached.
• At the end of the work you need to install the eaves and hang special curtains. As a cornice, you can use a galvanized pipe of small diameter.

Tip! If the floor of the bath is wooden, before installing the pallet, you should put galvanized sheets. Moreover, the joints between the sheets should be smeared with silicone sealant.

I must say that to implement the drain you can do without the pallet. In this case, the floor is waterproofed and a coupler is embedded with an integrated drain pipe.

The surface of the concrete floor can be covered with ordinary ceramic tiles. This option is more complex and long in terms of implementation, but more convenient to use, since you can take a shower standing on the floor.

Here, in fact, the whole basic instruction on the arrangement of the shower in the bath.

Conclusion

Doing a shower in the country in the bath with their own hands is quite simple. The most important thing is to ensure the supply of water and its heating, which may require some equipment. The rest should follow the above recommendations.

You can read more information on this topic from the video in this article.
