How to sheathe a shower on the site: the choice of material

22-10-2018
Water supply

Swim in the evening after fruitful work in the garden - what could be better? Many settle for convenience in the courtyard, paying more attention to design features rather than external data.

In the end, the owner gets even a strong, but not very attractive and uncomfortable booth for washing.

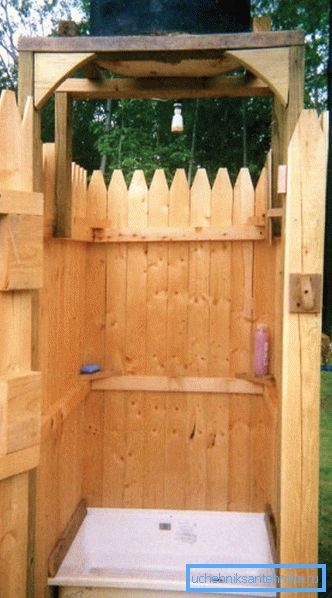

This simple structure will allow you to take water treatments at the cottage.

What is most often used

It is clear that the adoption of water procedures is an intimate matter. Close from prying eyes is necessary. Many citizens are not puzzled over what sheathe summer shower in the country, and use everything that comes handy.

Facing materials

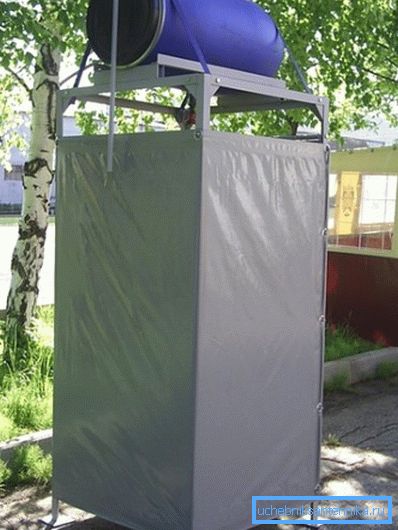

Wall shower of oilcloth.
  1. Often in the course is oilcloth. Of course, this is not aesthetically pleasing, unreliable and impractical, only the price is attractive. In this case, it is comfortable to take water procedures only in hot and calm weather. Slightly blew or became cooler - a cold is provided. And the canopy that is noisily fluttering in the wind will not add to the process of positive aspects.
  2. Popular are folded boards in barns or plywood. The summer resident, without thinking twice, hurries quickly to put together something from all this that is acceptable to all households. The service life of the building is a maximum of two or three seasons, since the tree will quickly get wet from the water and become useless.
  3. The plexiglass and slate shower erected by the hands looks good. The materials are waterproof and quite durable. But the heat is kept poorly, so they are suitable for use only in the warm season.
  4. Galvanized steel is long enough, but is optimal for either the hottest days, or for the southern regions. As the weather periodically presents surprises in most of the country’s territory, taking a shower will completely depend on it.
  5. Plastic, remaining after the repair, will be very useful. It looks neat, it is not afraid of water, but after winter and the temperature drops, it deforms and becomes brittle. With the beginning of the season will have to change the trim.
Polycarbonate construction.

Note! If it is possible to use cellular polycarbonate, the question of how to sheathe a shower stall at a dacha can be considered resolved. Both colorless and colored sheets look great. Honeycombs keep warm well, inside it will be light, but it is impossible to consider a person who is in a booth.

Of all the above options for plating, polycarbonate is most practical for an unheated booth. The table below shows the main technical characteristics of this material. They show that such a lining is optimal for suburban showers.

Parameter                 Sheet thickness, in millimeters
  four   6  eight ten sixteen 20 25 32
Weight per square meter 0.8 / 1 1.3 1.5 / 1.7 1.7 / 2 2.5 / 2.7 3 / 3.1 3.4 / 3.5 3.7
Min bending radius, in meters 0.7 1.05 1.2 / 1.4 1.5 / 1.75 2.4 / 2.8 3.5 3.75 / 4.4 4.8 / 5.7
Soundproofing in decibels 15/16 18 18/20 19/24 20/27 22 22/30 36
Thermal resistance of heat transfer (R), m2 •? C / W 0.24 / 0.26 0.27 / 0.31 0.28 / 0.42 0.29 / 0.40 0.36 / 0.51 0.37 / 0.56 0.65 / 0.68 0.63 / 0.83
Heat transfer coefficient 4.1 3.7 3.6 3.1 2 / 2.4 1.8 / 2 1.6 / 1.7 1.4
Light transmission (colorless and transparent sheet) 82 82 82 80 76 51/79 18/79 50/73
Impact energy absorbed (H * m) 21.3 27 less than 27 less than 27 less than 27 less than 27 less than 27 less than 27

Warm a summer shower

It would seem, why insulation, if the name "summer" implies lightness, mobility and intermittent use? But summer is different, and in the country there is often no alternative to a street shower for water treatments.

Independence from external factors will give competent insulation and properly sheathed perimeter. Then you can safely wash from the beginning of April to the end of October. Just during this period are the most active work in the garden.

So how can you isolate a structure before it is covered?

  1. Mineral wool. Environmentally friendly and easy to install material. It is recommended to lay the mats in the frame before sheeting the inside shower. Since the ingress of water on it is undesirable, it is necessary to cover the internal walls with an impenetrable film and only then continue finishing.
  2. Glass wool some still apply, although this is already an obsolete method. Its installation requires utmost attention, and in the future you can be injured by the fiber that has come out of the gap. Therefore, the instruction recommends that all precautions be observed.

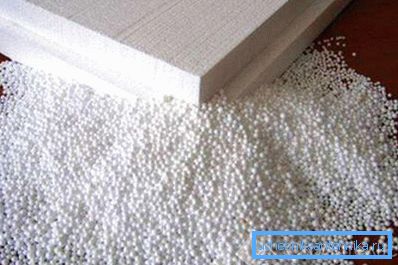

Polyfoam - one of the best heaters.

Note! Polyfoam, especially waterproof, is best suited for a street shower. Sheet thickness of 5 cm is enough. The space will decrease to a minimum, and inside it will be comfortable in any weather.

Shower arrangement

Before you revet a shower at a cottage outside, you need to make a frame for it.

Frame Mounting

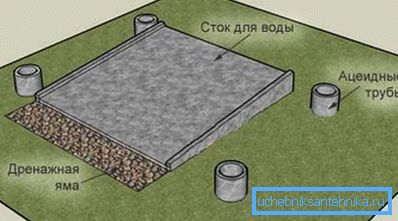

In the photo basis for construction.

It is worth paying a little attention to the basis of the structure, that is, the frame. The moment is extremely important, since the user has a heavy tank with water above his head. If you choose the right place, install racks and hang the tank, injuries and other troubles are excluded.

Only after you build the foundation, you can think about how to sheathe a summer shower outside and how to give it an external gloss.

  1. Four pits are dug for installation of racks-pillars. Metal pipes with a diameter of 10 cm and above will do. If possible, dig pipes deeper.
  2. Align the supports with the plumb line and fill them with concrete with gravel. After the mixture has completely set, you can proceed to further work.

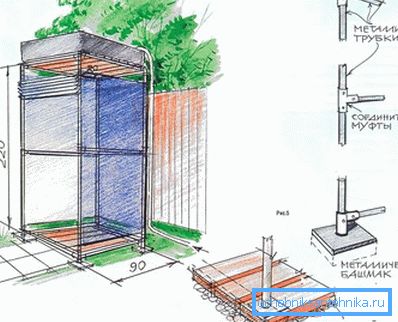

Option framework design.
  1. Next, make the upper and lower strapping. As jumpers the timber, pipes or a channel will fit. Pay attention to the fasteners, their reliability ensures your safety. If you cannot reach the welding machine, fasten the elements with bolts.
  2. To drain the water, it is easier to make a dimple, cover the layer of gravel and cover the canopy with boards, leaving a gap. You can arrange a pallet with gravity or forced (using a drainage pump) drain.
  3. The water tank is installed last. Volume pick on preferences and opportunities. Usually a 200-liter tank is sufficient for a full wash.
  4. As for the size of the shower, its minimum dimensions are 2 meters of useful height and 1.5 meters in length and width.

Shower trim

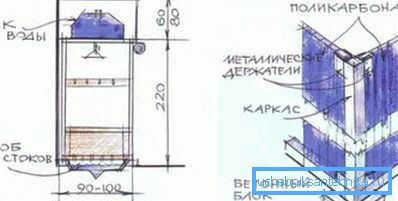

So you can mount sheets of plastic.

When the frame is ready, the shower is covered with a roof. This element must be durable and must withstand the weight of the water tank. For it is necessary to lay the logs and tie them with reliable fasteners.

Now you can think of how to sheathe shower in the country.

It can be:

  • wood and its derivatives (boards, wall paneling, OSB, chipboard, waterproof plywood);
  • sheet metal, smooth or profiled;
  • plastic;
  • slate.

However, the best option would be polycarbonate. With the aesthetics of the appearance of its sheets are strong enough to mount them relatively easily.

Fasten material on the base with guide rails or special screws. Face shower should be on three sides.

The front part will serve as a doorway. You can hang it with a curtain of polyethylene; in addition, you can screw the hinges, put a plastic door.

Water supply and lighting

Flat water tank for a shower.

Plastic tank or metal barrel is best painted in a dark color to increase the heat capacity. The tank is placed on support columns.

Screw the valve and the watering can into the bottom of the container. Water will flow by gravity, and its pressure can be adjusted by a valve.

Note! The best option is to use a plastic water tank that has a flat shape. These factory products can be equipped with a drain pipe; If desired, the tank can be installed heaters for heating water.

The lighting device inside the shower must have reliable moisture protection. This can be a regular flashlight or LED lamp, powered by batteries.

Decorative trim

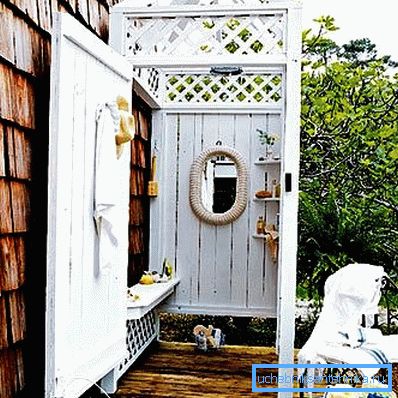

Inside the building you can knead shelves, mirror, hooks, etc.

After installation, the shower room in the country is decorated inside and out. In the room you can fasten hooks for towels and clothes, shelves for hygiene supplies.

The design itself depends on the material of the walls of the building. When it is wood, it should be soaked on both sides with a water-repellent and antiseptic composition.

It will reliably protect the skin from moisture and harmful microorganisms. Further, the tree can be covered with a waterproof water-based or acrylic paint.

Before you sheathe the dacha shower from the inside, it should be noted that the polycarbonate does not need decorative decoration.

Conclusion

To choose the material for covering the dacha shower should not only be based on its decorative qualities. The cladding should be reliable, durable and moisture-proof (see also the article How to install semi-circular shower enclosures).

Watching the video in this article, you will get a lot of additional information.
