Pump rodnichok

If in the city it is enough to connect to the central sewage system to provide water for the house or apartment, then outside the city this problem should be solved independently. One of the simplest solutions is a well, but a pump is needed to supply water. A large range of devices is divided by parameters and characteristics, which complicates the process of consumer choice. Most often, wells dig deep enough to produce quality water. With the rise of water from such wells, the submersible model will cope - the Rodnichok pump, which will last more than one year, providing the house with water in the required volume.

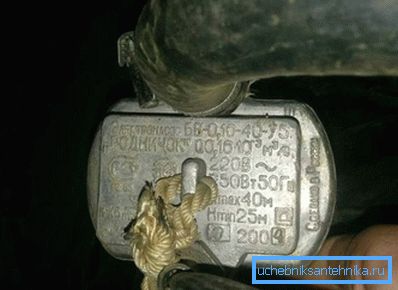

Technical characteristics of the pump

Pump Rodnichok refers to the devices of the vibration type. It is designed for immersion in water up to 10 meters, which is an excellent solution for a country well. It is worth noting that its technical characteristics have high enough performance that you need to carefully study before you buy.

• head - 60 m;
• productivity is 1500 l / hour;
• power - 225 watts;
• filter system (for particles up to 2 mm).

It is separately noted that the body of the unit is absolutely waterproof and tight, so do not be afraid of the likelihood of water getting inside.

Manufacturers of the spring Rodnichok produce a fairly durable case that allows you to lower it even lower. With it, in a country house or in the country will be a stable water supply from the well.

Features and disadvantages

In addition to technical characteristics, it is important to explore all the possible pros and cons of the unit. This will allow you to make the right choice. So, the benefits include:

• affordable price;
• work with polluted water (impurities in the form of sand or silt);
• profitability (low power consumption);
• double insulation;
• high head power;
• the possibility of arranging several points of water intake;
• check valve;
• easy operation and maintenance;
• use at a depth of 10 meters or more.

The list of deficiencies is much smaller, but they are also important to consider:

• short power cable length;
• use in exclusively new wells (due to increased vibration, old rings will crack);
• high sensitivity to voltage drops (it is recommended to use a power supply stabilizer, which leads to additional costs);
• strong vibrations raise sand from the bottom, so the pump is used only when the upper water intake.

Despite the above advantages, another is highlighted - the possibility of upper water intake, which eliminates the likelihood of seizing deposits at the bottom of the well.

The principle of work Rodnichka

It is possible to use the pump for wells, wells, and also open sources of water. For normal operation, it is enough to connect to a household AC power (220 V). The principle of operation of the unit is the oscillation of the high frequency of the membrane, which ensures a constant change in pressure in the chamber.

Inside the design there are 3 main elements:

• electric magnet;
• vibrator (rubber diaphragm);
• shock absorber.

The magnet is poured with a special material so that during operation it will not remove heat and prevent the engine with the coil from overheating. The vibrator is presented in the form of an anchor with a spring made of rubber, it serves for depreciation. When connecting Rodnichka to the mains, the magnet attracts an anchor, which causes vibration flows. During engine shutdown, the rest of the water is drained through a special valve.

Despite the fairly simple device, the pump provides a reliable water supply for many years.

Views of the owners

Another undisputed factor that directly affects the decision of the consumer, are the reviews of the owners. First of all, all note the affordable cost of the unit. When a malfunction or defect occurs, most decide to buy a new pump rather than repair an old one.

In some reviews of the owners there is information regarding the depth of use, or rather, that the pump works well not only at a depth of 10 m, but also at 20 m. Solving the problem with the length of the network cable, they produce the usual capacity that allows using Rodnichok at great depth.

Despite the fact that to extend the power cable, use a sleeve and electrical tape, it is still recommended to entrust this process to a specialist. Do not forget that while the owner immediately loses the right to warranty service.

Summing up, we can conclude: the Rodnichok pump has established itself as a practical and affordable device for the continuous provision of housing with water. If you follow the instructions and fulfill all the requirements of the manufacturer, and also treat the unit with care, then it will serve for many years.

Video

For ease of use of the Rodsenok pump (and any other submersible pump), it can be made to work as a hydrophore:
