Shower crane: troubleshooting and installation

07-06-2018
Water supply

In bathrooms, small boxes are often installed for showering or fixed cabins are installed. An important element of such structures is the mixer, with which the water is turned on and off, as well as the setting of the temperature regime of the supplied liquid. More information about this device is described below.

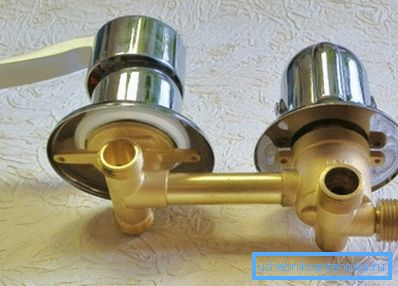

The photo shows a familiar shower box faucet.

Basic mounting options

Plumbing devices for water supply are small constructions, which allow mixing the hot and cold working environment to obtain a liquid at the outlet of the desired temperature. Improper installation can reduce not only the level of comfort during operation, but also lead to serious leaks.

External location of the device

When using this option, the mixing of hot and cold water occurs in a block that is visible. In this case, pipelines can be located both outside and inside the side planes. Special attention should be paid to the design of the device in order to achieve a single style decision.

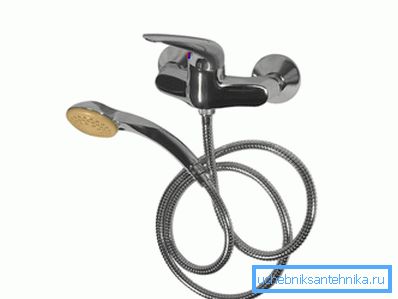

Model with an outdoor water mixing chamber.

Replacing the faucet in the shower without introducing into the wall or equipment is usually done fairly quickly, due to the lack of additional work necessary to hide. Unlike a conventional mixer, this appliance does not have a spout.

Embedding in the side walls

A more aesthetic option is to hide the product and pipelines suitable for it, beyond the separation plane. Usually these mixers are installed behind the panel, and outside there is only a control unit.

You can familiarize yourself with the advantages of this installation method below.

  • Pipelines and devices in this situation receive additional protection from mechanical damage.
  • Since unnecessary details are hidden behind the side surface, it improves the aesthetic perception of space.
  • Thanks to the hidden liner, it is possible to increase the number of watering holes and additional spouts without disturbing the integrity of the design composition.

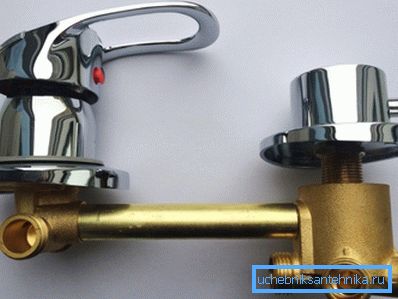

Product for hidden installation.

Note! Despite all the positive qualities of this option, there is one major drawback. In some cases, the installation cost can be quite high, which is due to the laboriousness of the work.

Repair activities

So that the beginning masters know how to disassemble the faucet in the shower, then the instruction is presented that allows you to perform repairs directly with your own hands.

Usually, it is enough to replace a special cartridge to restore the functioning of the mixer.

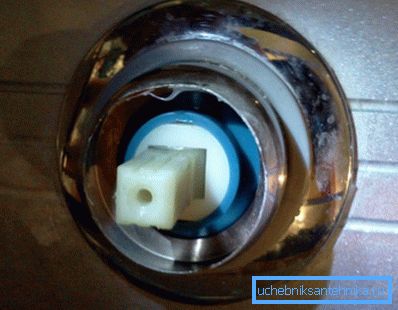

Demonstrates the position of the cartridge inside.
  1. When carrying out repairs plumbing the device is freed from external elements located in the inner part of the compartment. Removed shift knobs with decorative overlays. The fixing screw is usually located on the handle.
  2. Under the switching device there is a nut holding the decorative element.. It is necessary to unscrew the appropriate key. It not only holds the pad, but also allows you to press the case to the place of attachment. Additional methods of fixation are no longer necessary.
  3. Next removed the clamping ring. It may be threaded or supplied without it. If there are no screws or other fasteners under it, then the main unit should hang on flexible hoses on the other side of the cab or fall out of the wall.
  4. For the convenience of further work is disconnected from the plumbing system. It is mandatory to overlap the water supply taps directly on the pipelines. In some situations, this item can be skipped.
  5. To remove the mixing cartridge, the retaining nut is carefully removed.. In most cases, the hand is strong enough to loosen, but sometimes it is quite difficult to turn it. When using tools, care must be taken that the chrome-plated part will not be damaged.
  6. At the final stage, the cartridge for mixing water is removed from the main groove. A new product is inserted instead. All work is done in the reverse order to assemble the mixer and fix it. When installing, do not overly tighten the nuts.

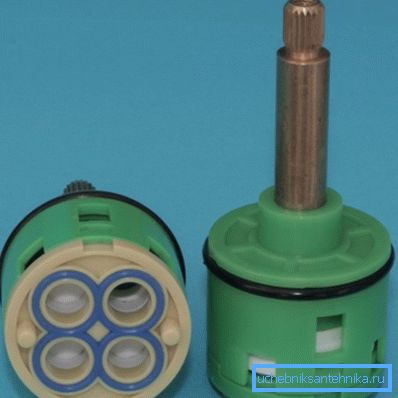

Showing cartridges in the removed form.

Attention! The information provided provides an opportunity to learn how to disassemble the faucet in the shower cabin without the help of specialists. Refusal to hire professional workers saves a considerable amount of money.

Additional recommendations

  • When connected to the water supply network, the connection of elements is carried out using a special tape FUM, which will reliably seal the joints.
  • For loosening the locking nut, you can use ordinary pliers. However, it is advisable to put a piece of cloth under them to prevent scratching the part.
  • If you want to completely replace the mixer, it is better to choose modern models with new features. With their help, you can make your stay in the shower box as comfortable as possible.
  • After completion of the basic work, testing is mandatory carried out in order to check the design for leaks and other malfunctions that may adversely affect operation.

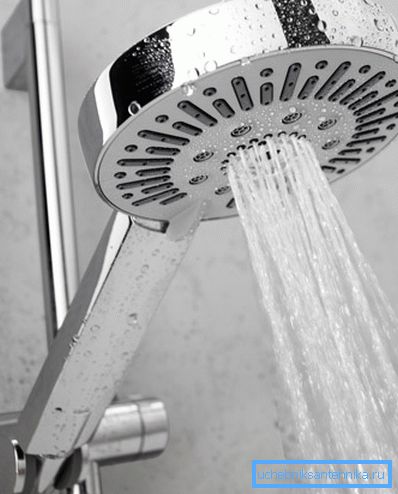

The shower cabin with the crane for washing is equipped with such watering can.

As a conclusion

The information above is aimed at ensuring that beginner masters could clearly understand how to change the faucet in the shower cabin on their own. Proper work will allow the mixer to be repaired at no additional cost. As for the quality of installation, every owner will be responsible for it. If this option suits, then after watching a special video in this article, you can proceed to the main activities.
