Small washing machine under the sink - selection criteria

19-05-2018
Water supply

It so happens that most typical bathrooms and kitchens in the apartments of our great country have, to put it mildly, modest dimensions. Change is quite problematic, so people have to adapt. Small washing machines under the sink became a breakthrough in the layout of living space. There are pros and cons, which we will further consider.

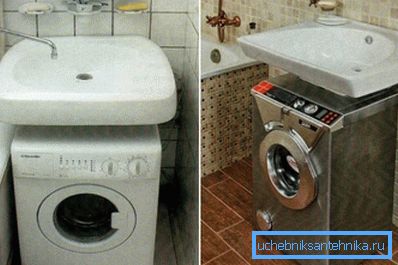

Photos of cars under the sink.

Basic parameters and types of cars

A typical washing machine has about 850 mm in height, about 600 mm in width and about the same in depth, in this case we had in mind machines with front loading.

Their vertical-loaded counterparts have more modest widths and depths, but the height remains the same, which eliminates their installation under the sink. From here we conclude that low washing machines under the sink should, above all, have a height less than the standard 850 mm.

Important: according to sanitary and construction standards, a typical sink should be installed at a height of 800 - 900 mm from the floor. But the optimal size is exactly 850 mm.

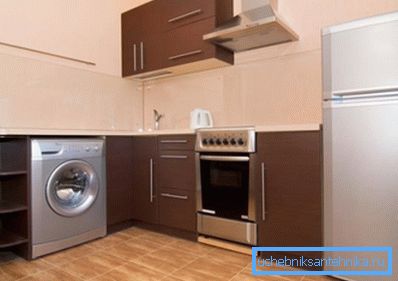

Built-in hardware.

A person does not want to lose in comfort, even if you have to put up with a smaller load of the unit. Therefore, any, including the smallest washing machine under the sink, as a rule, is equipped with the same set of functions as its large-sized counterparts.

There are also 2 leading directions here, front loading drum type and vertical loading activator type.

Front loading units

Small washing machines machine under the sink with front loading, are considered the best option for this type of layout. As mentioned earlier, small-sized washing machines under the sink, have the same characteristics as the large ones.

But the standard load of these units usually does not exceed 5 kg. Plus the price of such devices is higher by 25 - 30%.

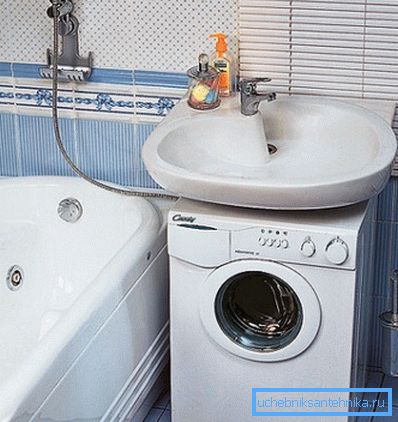

Sink with oval bowl.

Such a difference in cost is caused by the need to fit in the small dimensions of the box, the entire set of traditional units and without losing quality. After all, such units have a similar number of turns, just as washing takes place in several stages, starting with soaking and ending with a full spin.

Of course, not without flaws. In this case, the standard sink for such installation is not suitable; you need to buy separately a so-called water-lily sink, with a special configuration shifted relative to the center of the sink and siphon. Still need a whole set of adapters and fixtures.

To mount such a structure with your own hands is not difficult. But in this case it’s not worth saving on the quality of units, since all communications will be located behind the machine, and the washing machine under the sink, height 60 cm, does not allow for complete repair without extending the unit. That, given the weight of the device, is very problematic.

Miniature machine.

Vertical loading

Babies with a vertical loading of the activator type are erased by rotating a ribbed drum mounted on the bottom of the tank. This technology is considered obsolete and often not very popular. Such devices are produced in domestic factories, so the price they have is quite democratic, but this is not their only dignity.

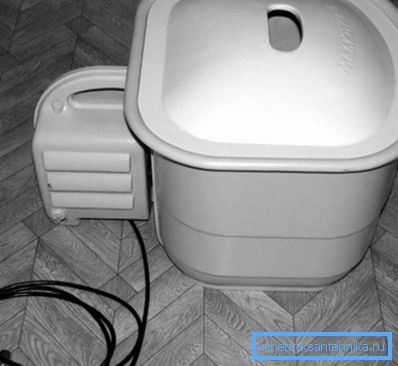

Baby activator type.
  • Since these units are not equipped with heating elements, they consume much less electricity.
  • Due to the activator type of work, during rotation this machine does not beat the foam, unlike the frontal drum version. Even if you put more powder, nothing terrible will happen.
  • Both water and powder, these little ones require much less.
  • Weight, as well as the level of noise and vibration in them is much lower.
  • And most importantly, the activator babies do not need a central water supply and sewage system at home.

Tip: if you are planning to buy cars for use in a country cottage, where sometimes you have to live in a semi-partisan environment, pay attention to the activator babies, they will not disappoint you.

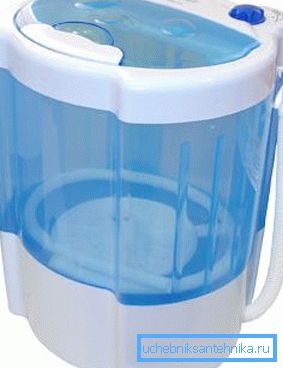

Modern activator machine.

What to look for when choosing

Different washing machines for the sink sizes also have different, now they are available in a sufficiently large assortment, and the shells themselves on the market are available in several versions. Therefore, the choice must be approached carefully.

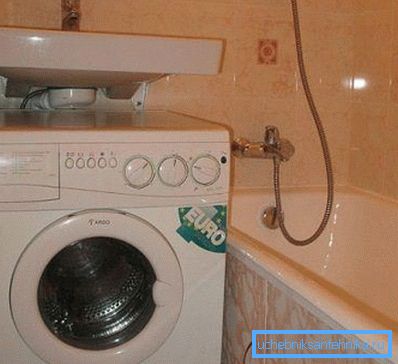

Sink with a flat siphon.

Choosing a typewriter

  • The first thing you need to pay attention to when examining the unit is the material from which the drum itself is made.. It can be made of plastic or stainless steel. As if the store did not praise the advanced technology of plastic production, based on the experience of many users, it can be clearly argued that stainless steel is much safer and more durable.
  • Many of our compatriots are chasing high-whirl cars.. But in this case it will not be entirely correct. The fact is that if the number of revolutions of the drum during the spin cycle exceeds 600, it means that in the aggregate, a collector system is installed. The resource is much less than the usual.

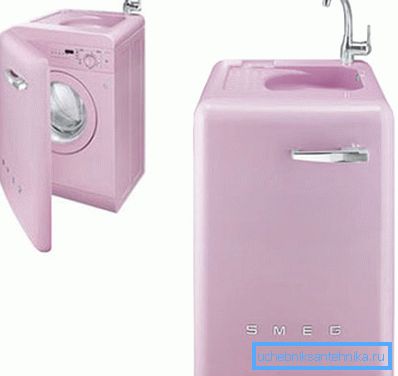

Universal unit for the bathroom.
  • In the case of a little one you should not chase a large number of additional options. Of course, silvering, steam generation and circulation are quite useful and interesting, but the more stuffed with additional electronics in your baby, the higher the likelihood of an early breakdown, plus you pay for this whole circus much more and not the fact that all these options will be useful to you.

Let's talk about the sink

Experts say that low washing machines under the sink should be hidden completely. How not to twist, and this is an electrical unit, and although all its components are protected from moisture, it is still not recommended to water the machine with water. The sink for a washing machine 60 60 cm, in this case allows you to completely close the top panel of the unit.

The most common option is a flat sink for washing machine 60x60 "Waterlily". The bowl is suspended on special brackets and has a non-standard angular drain. Plus, the siphon here also has a special flat configuration in order to save more space.

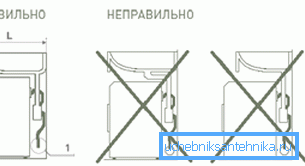

The correct layout.

In addition, for narrow units, a reduced sink is available for a 60 by 40 washing machine. As a rule, it is not customary to assemble such miniature versions yourself. Due to the small size of the spray will still get on the machine.

The best solution, in this case, will be to cut the bowl into the countertop of suitable sizes. This option is also attractive due to the fact that the tabletop is easier to fasten and under it you can equip a cabinet in which the machine is hidden.

Tip: in some apartments a sewer pipe with a section of 50 mm passes under the wall, directly behind the machine. Given the depth of even the narrowest typewriter, the sink should have a size of at least 600 mm from the wall. Therefore, in this case it is practically impossible to do without a table top.

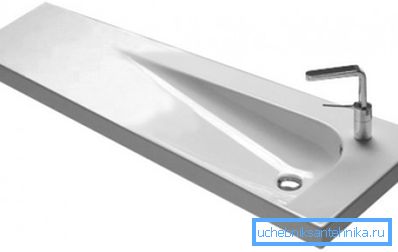

Original sink with side drain.

The installation manual for the sink strictly strictly prohibits any contact of the siphon, bowl or fixture of the shell with the unit body. The fact is that any machine, during operation, will inevitably vibrate. Whatever strong and reliable fittings are, over time it will be loosened and the pipe will burst, as a result the unit will be filled with all the consequences and dangers arising from this.

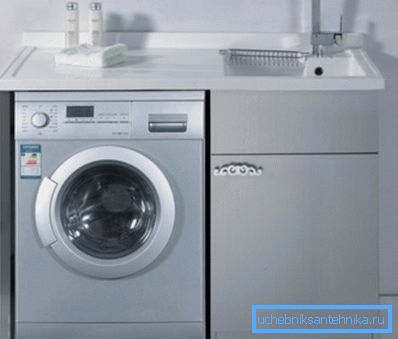

Placement option under the countertop.

The video in this article shows how to fit a washing machine under the sink.

Conclusion

Small washing machines under the sink thing is convenient, using this layout you can save precious square meters in a small bathroom. But choosing this option should be prepared for higher financial costs for the purchase and installation.

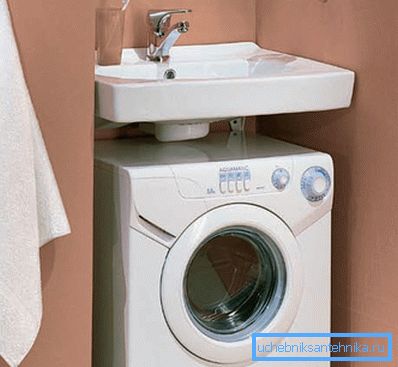

Selection of blocks by size.
