Staples for a well - their types and application

01-09-2018
Water supply

At production of modern wells from reinforced concrete rings, brackets are surely used. They allow you to make the design more durable, durable, as well as, convenient to operate. Next, we consider in detail what are the brackets for the rings of the well, and for what purposes they are used.

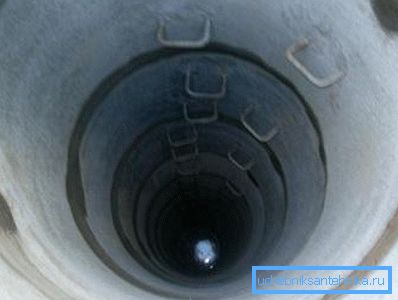

Staples in the well

Types of brackets

To date, there are many varieties of these products.

Here are the main ones that are most often used in the construction of wells:

  • Thrust (guides);
  • Suspended;
  • Running gear.

Now take a closer look at the purpose of each species.

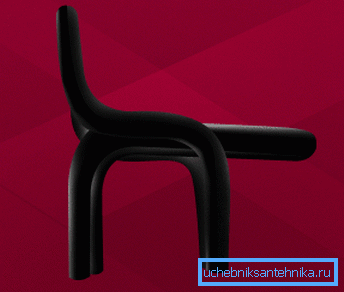

Guide clip

Thrust

This type is used to increase the strength of the structure. They fasten the concrete rings of the well. However, you should make a reservation that they are used in cases where the rings do not have locks.

These elements, first of all, prevent movement of the rings relative to each other during installation. Staples are installed between reinforced concrete sections, i.e. in the seams. Sometimes they are also called fastening brackets.

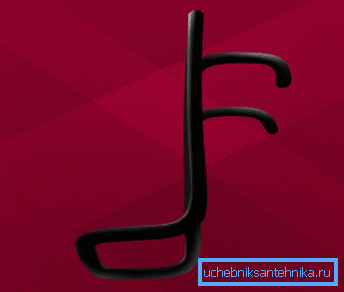

Hanging bracket

Suspended

These metal products serve as a ladder for descending into the mine. This is a kind of steps that are most often used in manholes. However, they can often be seen in water mines.

They differ in that they are made of high-quality steel reinforcement, which is covered with special plastic on top. This coating protects the product from corrosion. I must say that the suspension brackets come in different designs and shapes, but they all serve the same purpose - to provide the possibility of safe descent into the mine.

Tip! Sometimes you can find products uncovered with a protective layer. In this case, before operation, they must be coated with an anti-corrosion compound.

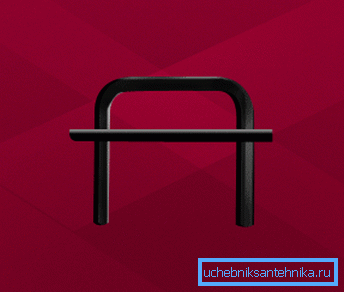

Running bracket for wells with cross bar

Running gear

Wellhead brackets are another type of product that also serves as a descent into the mine. Their main difference from suspended, is that they can be mounted in concrete after the construction of the structure. Suspended products can be installed only during the construction of the structure, as they are mounted between concrete sections.

Such steps are installed in a staggered manner, which makes it easier to descend into the mine. To ensure tightness and reliability of installation, they are sealed in the process of laying the column.

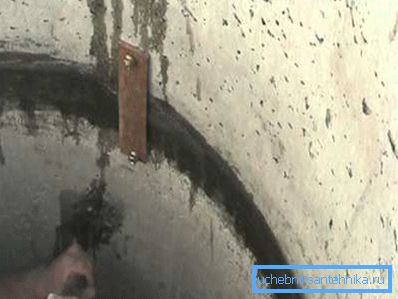

In the photo - a bracket for fastening concrete sections

Note! In the case of the deepening of the shaft, it is necessary to use the angle brackets that secure the concrete sections to each other.

Installation of water wells

To make it easier to understand the principle of using staples and their meaning, we will next consider the installation of a shaft of concrete rings, during which they are applied.

So, the instructions for the implementation of the water well is as follows:

  • First of all, even before the start of the land works, a ring is set in the place where the source will be located. After that, the ground is removed under it. In order not to have to throw the earth through the ring, you can pre-dig a hole with a depth of 0.5-0.7 m and then install a structure into it.
  • As the soil is chosen, the ring will settle under its own weight, after which a place will appear on top for the installation of another section. In this case, a tarred rope is laid on the ends of the walls, and guide brackets are installed, after which another concrete ring is mounted on top. If you do not plan to make a ladder for the well separately, then you should also install suspended steps between the rings, which will serve for the descent into the mine and the ascent.
  • Then the soil is removed further to the aquifer, and as the column is lowered, new rings are installed. Moreover, it is desirable to fasten all of them with angle brackets to prevent the upper rings from jamming in the ground, as a result of which the column breaks. If this situation nevertheless occurred, then on the upper rings you need to lay the shields and press them down with a load, for example, bags of stones.
  • Work should be stopped when water quickly begins to enter the mine, and several keys appear at the bottom.
  • Next, the water should be pumped out and select a few more buckets of soil.
  • Then the well should be covered and left for 12 hours, after which the water is pumped out again and the bottom is cleaned until the aquifers become clearly visible.
  • After this, the well must again be covered and left for 12 hours.
  • At the end of the work, the water is again pumped out and large stones are placed on the bottom with their own hands and are poured on top with fine gravel or gravel. Thus, a filter is performed that will reduce the content of sand impurities in the produced water.

Tip! In the process of making a source of water supply, you can not use any chemical compounds, including all kinds of mastic, sealants, etc. This can lead to a change in the taste of water or even make it dangerous to health.

Well device

I must say that there is another way to perform the well, which is suitable for solid soils. It lies in the fact that the mine first digs up to the aquifer, after which the rings are installed. At the same time, the pit digs a larger diameter than the rings themselves.

After installing the structure, the pit falls asleep. This method is good because it allows you to perform high-quality waterproofing well, however, it requires the use of special equipment.

After the column is completed, it is necessary to equip the upper part and provide it with an airtight lid.

Conclusion

As we can see, staples, in the arrangement of the well, are a very important element. Despite the fact that this is a small detail, it is hardly possible to overestimate its value, since an unreliable construction will lead to a deterioration in the quality of produced water or even the need to build a new well, the price of which is incomparably higher than the cost of brackets.

Additional information on this topic can be obtained from the video in this article.
