Submersible pump stream

08-02-2018
Water supply

In the countryside, in the villages and just at the dacha plots, from time to time there is a need to provide individual points with water not adjacent to the central waterway. Or there is a need to pump out water from the cellar, viewing pit, basement (and other buildings located below ground level) during the spring flood. It does not make sense to buy large pumps, as they are designed for larger purposes, in these situations it is a waste of resources. But what choice is left for residents of private houses? An excellent choice in this situation - a submersible pump trickle. Why is he?

This type of vibration-type pumps has held strong positions in the market for half a century. Externally modest device has wide operational capabilities. What are the advantages of this Belarusian pump?

Special features

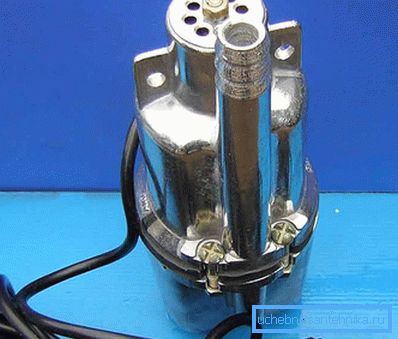

Features of the submersible pump streamlet

This type of pump was designed in the “good old” USSR, so that it cannot be reproached for its quality, while it has excellent characteristics and ergonomics. Benefits overview:

  1. Like all domestic development is not designed for 1-2 years of use, but at least a dozen years, thanks to a very good maintainability. Repair of this device under the force of anyone, despite the fact that it is possible to replace all components and components.
  2. No need for expensive maintenance.
  3. The design feature provides the autonomy of the device. Thanks to the upper water intake, an excellent cooling of the working elements of the pump is carried out. If the water level drops, the automation switches off the motor, so you can not be afraid of overheating. Another advantage of the upper water intake is that bottom sludge or debris almost does not fall into the casing of the pump itself.
  4. When pumping water from a well or a well, there is no need to worry about the integrity of the device. A durable metal housing prevents damage to the internal components, and a rubber buffer adds extra security to the outside of the pump.
  5. The pump does not require specific fasteners to the walls of wells or any other installation, it is enough to hang it on a cable or a strong rope.

Simplicity of a design provides the maximum durability of a product.

Specifications

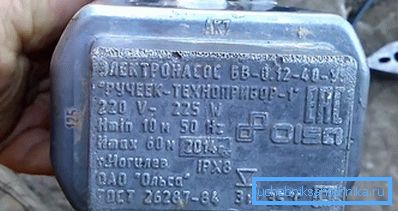

Characteristics of the pump Streamlet

Brief technical characteristics of the device:

  • Power is 225–300 W;
  • An ordinary 220 V network is enough for power supply;
  • Limit of head 40–60 m;
  • Performance ranges from 1.5 m3 at a depth of 1 m, up to 400 liters per hour at a depth of 40 m.

Such characteristics of the pump make it a versatile multi-purpose device, the best assistant in a private home or on the site. For example, he will cope with irrigation of a garden and a kitchen garden, will help to fill any tank or system with water, or, on the contrary, will help to pump out water from large tanks, tanks, rooms. It is excellently suited for organizing permanent autonomous water supply of an object, for example, a kitchen or a bathroom.

There is not enough power for production needs.

If the well filter is clogged, it can easily cope. The vibration principle of the pump operation causes the device itself to produce high-frequency oscillations, which, together with the created circulation of water in the well filter zone, help to restore the well functions.

Repairs

Although the pump is very durable and resistant to damage, but no one is immune from damage. With prolonged use of the pump is better to stock a consumable repair kit. The low cost of this device allows you to simply buy a new one, but the real owner should not stop the difficulties.

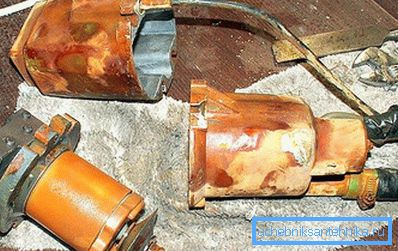

Disassembled pump
The components of a pump that has been in the water for more than one year may rust. This is especially true for mounting bolts. Usually they have to be removed, and with extreme methods (for example, to cut the grinder) to do a full repair of the device. Rust removal fluids are usually not very helpful in repairing old pumps. But, if you already deal with the bolts, then replacing the valves, repairing the winding, repairing the electromagnet sealer will not be difficult.

Reviews of this device are good. After all, the quality developed by the Soviet GOSTs is skillfully supported by Belarusian masters. Decades of production and popularity of this pump only confirm this truth. In the first couple of years of using a submersible pump, a trickle about repairs in general can be avoided. As for the rest, the trickle shows excellent productivity and has a wide range of applications.

Video

In this video, provided technical specifications and an example of the pump trickle, released in Soviet times:

We offer you a video, which shows the device and repair of the vibration pump:
