The crane for the washing machine is better to use

03-04-2018
Water supply

After purchasing an automatic washing machine, a small “trifle” remains - to properly connect it to the water supply. There are two ways - call a plumber or do it yourself. We recommend to dwell on the latter, since in this work there is nothing difficult that a man could not cope with.

It is necessary to pick up the necessary equipment - the crane and install it in a convenient place on the water pipe. You will also need seals for thread and gasket.

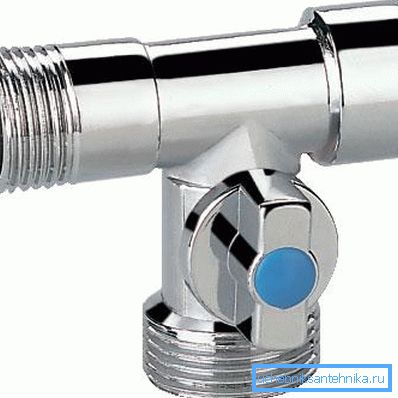

Crane tee for washing machine without compensator

Experts recommend:

  • if you have steel pipes, and you do not want to weld an additional branch, install the faucet on the branch to the toilet bowl;
  • in a metal or plastic pipe, you can choose any suitable place on the pipeline.

Below we will consider which taps are used to connect to the water supply of a washing machine and how the process itself takes place.

Types of valves for washing machine

The method is considered the most simple and economical, install equipment on the connection pipe-hose.

It is possible to install the valve in the place of water supply on:

  • washbasin;
  • toilet cistern hose;
  • kitchen faucet;
  • water heater.

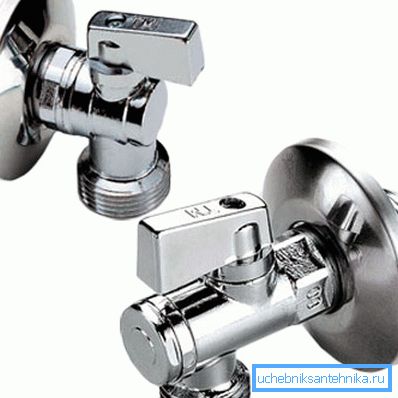

Faucet for the washing machine of angular type

Manufacturers produce devices with different directions, so try to choose such models so that their lever is easy to use and affordable, and would not rest against the wall. Conventionally, the direction can be called left and right.

Based on the practice, many experts recommend using in this case the through valves of two manufacturers:

  • Arco;
  • Fornara (marked with a blue flag).

Recommendations

Consider which tap to put on the washing machine and where in different cases:

  1. When a tap is already installed in front of the hose, for example, on the drain tank, it doesn’t matter whether you decide to mount a tee through-valve for connecting a washing machine before or after it.
  2. If the hose is connected to the water heater, and you decide to connect a washing machine to it, the tap on the latter must be installed between the main line and the tap on the water heater. Then you can do the laundry at any time, not when the hot water is turned off.
  3. When installing a washing machine in the kitchen, where there is a mixer of the old generation, and it is connected to the pipes, not to the hoses, it is better to replace it, and not to try to use a mortise clamp.

Here you can get by with one crane:

  • take the gas key;
  • unscrew the locknut as far as possible. The procedure is likely to require the application of force, especially when the pipe is painted. We recommend that you unscrew the nut gradually, periodically turning it back;
  • twist after it the clutch, which will go easier on the knurled thread. In this case, try to free the thread from the tow, also twisting the clutch periodically backwards;
  • the end of the pipe may be torn due to corrosion and time, so make a flat plane with a file. Then the flexible hose gasket will be tightly and evenly pressed to the end.

Tip: you can use an alternative - install an extension cord on the pipe. Torn edges do not interfere with it, but the end face on it is of the best quality. An extension can be a valve-type valve.

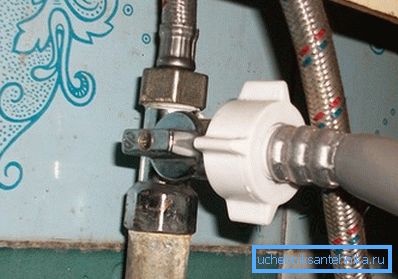

In the photo - you can see visually how to connect the washing machine to the tap

Water connection

Connecting the washing machine to the water supply starts after the removal of the transport bolts and the installation of an electrical outlet with grounding. Use for this the standard water inlet hose supplied with the washer.

Tip: for a used machine it is better to buy a new inlet hose and for diverting water from the device.

Step-by-step instructions for connecting to the water supply:

  1. Screw the inlet hose with one end to the inlet located behind the machine. Fix it tight with a cap nut.
  2. Connect the other end to the water supply through a tap under the washing machine.

Tip: in this case, you can always turn off the water supply to the device after washing, for repairs or maintenance.

Ensure that the inlet hose is not twisted or twisted. Threaded connections between the valve and the hose seal with a rubber gasket. You can also use a special elastic plumbing tape.

Tip: install a mesh in the inlet, which will play the role of a filter and protect the equipment from small debris that is often in the water.

Water supply options

Below we consider in more detail the most often possible:

Special valve Look carefully at your plumbing in the house or apartment, perhaps it already has a separately installed tap for connecting a washer. Purchase an optional threaded adapter for the valve and the machine inlet hose. It only remains to firmly seal and firmly clamp the threaded connections.
Vent valve Frequent way to connect to a cold water washing machine. In this case, you will need a three-way ball valve. We recommend to buy a high-quality brass faucet, otherwise low-priced products made of powder materials do not last long and have to be changed frequently.
Sidebar To connect the valve to a metal pipe is often used inset. In this case:
  • acquire a ball valve, which has 2 outputs, and the clamp;
  • drill a hole in the place where they plan to organize the withdrawal of water;
  • put a collar with a seal on it;
  • screw the faucet into it;
  • connect to the valve inlet hose.

What does the industry offer?

  1. Three-way ball valve for brass washing machine with chrome plating. It has a tap to connect to the water supply of the washing machine. The main connector is O1 / 2, the thread is external and internal; branch - O3 / 4, a carving - external. The device is made in Croatia, the warranty for operation is 20 years. Conveniently, the handle of the locking device is compact and coincides with the edges of the fitting for pipes.
Brass faucet for connecting the washing machine to the water supply
  1. Corner ITAP device for sanitary devices. It is an instrument ball valve with the same thread on both sides (external O1 / 2). Used to connect to the water supply, not only washing machines, but also other plumbing. Make a mechanism of brass, has a nickel-plated coating. The operating temperature of this fitting is 0-110? С.

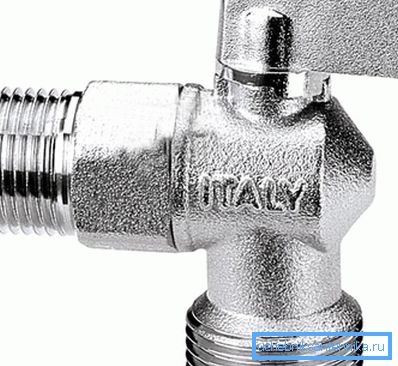

The crane of water supply in the washing machine angular - the ITAP type
  1. Mini corner tap for washing machines. It can be used for connecting and other plumbing and household appliances. The corner valve Rubinetta has an ergonomic and stylish design. This makes it possible to use it when it is not possible to hide the fitting from the view, or when the kitchen and bathroom are of small dimensions.

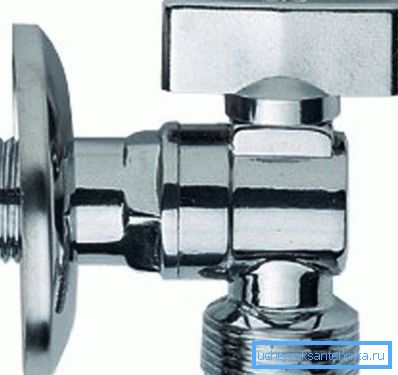

Chrome corner taps for connecting washing machine Rubinetta
  1. To connect the washing machine to the plumbing system, a three-way valve of the Italian company Fornara is used.. How to distinguish this product from numerous fakes:
    • crane sold in plastic packaging, where usually 1 or 2 pieces are lying;

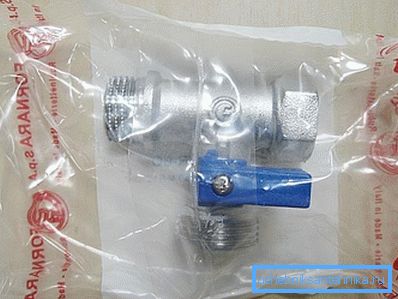

    The crane under the Fornara washing machine in packing
      • necessarily on the packaging is the logo of the company "Fornara";
      • The packaging indicates the make of the device 124D-E-RTBO and its production date;
      • after opening the packaging, the company logo will also be placed under the valve.

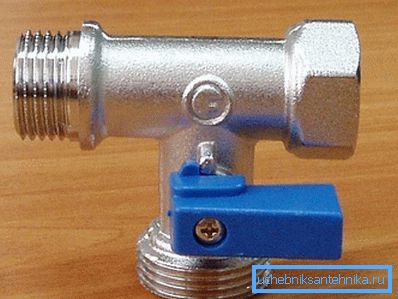

      Three Pass Valve Fornara

      Tip: do not rush to get the first faucet, consider it carefully and select the real one. Remember, the price of a quality item cannot be low. In this case, the product will last a very long time.

      Installation of a three-pass valve is made on any connection, most often it is a faucet or a toilet with water supply. Otherwise, you need to do it yourself.

      Conclusion

      Connecting a washing machine to the water supply can be done in different ways, but in any case you need to use a special faucet. With its help, it is possible to easily shut off the water after the cessation of washing, which manufacturers necessarily recommend to do, otherwise additional pressure is created on the valve of the device.

      Installation of the valve is carried out independently in any place suitable for this. The video in this article will provide an opportunity to find additional information on the above topic.
