Water supply

The first thing you should pay attention to when buying a country house is a source of water. Regardless of whether the finished house is purchased or a simple plot, the water supply must be organized. Since it is impossible to connect to the central water supply and sewage system outside the city, it is necessary to solve this issue independently. There are only two ways out of the situation: the well and the well. In both the first and second versions, a pump is needed that will provide the water supply. Among the large range of units stand out Typhoon pumps, which have clear advantages over their counterparts. Let's study them.

Features and disadvantages of pumps

The pump has passed the test of time

As already mentioned, the positive qualities of the products of this brand is enough, but it is important to consider them in detail. So, the benefits include:

  • possibility of use for wells and boreholes;
  • affordable prices;
  • vibration based work;
  • the possibility of pumping water over long distances both vertically and horizontally;
  • additional cooling due to the two-channel water intake system;
  • water temperature varies from 1 to 35 ° C;
  • built-in thermal protection;
  • anti-corrosion;
  • continuous operation.

The cord length is on average 7 m, which is quite enough for normal operation. With proper operation of the pump and the necessary care, he will be able to serve for about 10 years.

Choosing a pump "Typhoon" for the well, it is worth considering that its diameter must be at least 125 mm. Otherwise, the quality of work will be worse.

Study of technical specifications

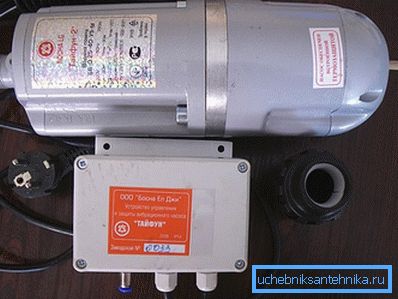

Pump characteristics

The next step in studying the Typhoon pumps will be to consider all the characteristics and performance. This will allow to determine: is one model or another suitable for performing the functions indicated by the consumer? The following specifications are highlighted:

  • pressure - 9 bar;
  • productivity - 2500 l / hour;
  • water intake through the 2-valve system;
  • the height of the water column reaches 90 m;
  • power - 240 W;
  • metal case;
  • instrument weight - 4 kg.

Constructive features will allow the unit to be used not only to provide water for the house and organize irrigation, but also to pump water from the basement and cellar.

All of these characteristics indicate the possibility of connecting to the pump accumulator, pressure switch and pressure gauge.

Complete set of submersible pump

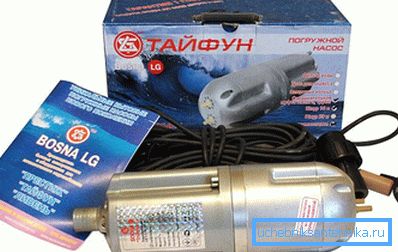

Pump Typhoon

The Typhoon submersible pump is standard equipment, which includes:

  • the pump, ready to work, which is in the tight case;
  • protective ring;
  • coupling (acts as a connector hoses or pipes);
  • cord (kapron).

The apparatus starts its operation by pumping water into a hydroaccumulator at a pressure of 3 atm. The pump is turned off and on automatically when the pressure drops to 1.8 atm. If there is not enough water in the well or well, the system also automatically turns off the Typhoon pump. This reduces the chance of overheating and system failure. Thanks to the two valves through which water rises, additional cooling takes place.

It is important to carry out the placement correctly: the casing should not touch the walls of the well. For this purpose, protective rubber rings are used, which soften vibrations and do not destroy reinforced concrete rings.

The minimum depth for normal operation of the pump Typhoon is 1 m, and the maximum - 5 m.

Circulation pump "Typhoon"

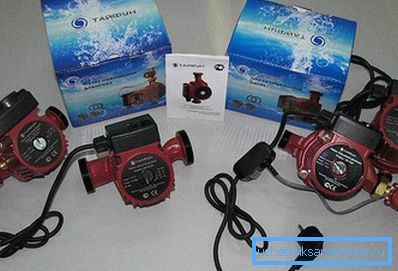

Circulation pump

The pump "Typhoon" can be not only submersible, but also circulating. It is used in the arrangement of the heating system so that the heating element (water) warms up quickly due to the constant circulation. The circulation apparatus has the following technical characteristics:

  • cast iron housing;
  • built-in thermal protection;
  • insulation class of the motor "H";
  • pump length - 18 cm;
  • three-speed engine;
  • power supply.

When choosing a "Typhoon" circulation pump for the heating system, the Council on a model equipped with a thermostat TsN-25-40. This device was designed specifically for high-quality heat exchange, which means that the temperature of the water in the pipes will quickly increase.

What do consumers say

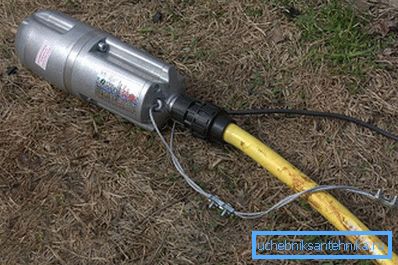

Pump ready to go

Despite the studied positive aspects and high technical indicators, many still have doubts about the purchase of the Typhoon pump. To dispel them, you must read the reviews of people who have conducted all the tests and draw their own conclusions. You can get acquainted with them on the Internet at special forums or thematic sites.

From time to time, employees of the company conduct monitoring to study the opinions of real users of products. On the basis of the data obtained, small conclusions can be drawn: it is possible to purchase Typhoon pumps without any fear. If you follow simple rules of operation and periodically carry out maintenance, the pump will serve reliably for many years. He can easily cope even with large volumes of work, namely:

  • water supply at home;
  • the organization of watering a large plot;
  • other business needs.

Positive feedback is based on the operation of the unit in the well or water. If you wish to use an open source (river or lake) it is necessary to conduct additional study.

Buying a submersible pump of the Typhoon company, you can not worry about the quality and correctness of the work of modern household appliances: a washing machine and a boiler. For work with large volumes of water it is better to connect the hydroaccumulator. Thus, having bought products of a domestic manufacturer, you can forget about the problems associated with water supply at home for several years.

Video

Watch the video about the Typhoon Vibrating Pump:
