Washer without plumbing - connection options

Few will argue with the fact that you get used to the good quickly. Automated washing process, made this time-consuming occupation of the usual ordinary business. But it all works, if you have all the blessings of civilization on hand, and if not, then the question arises, how to use an automatic washing machine without running water? After all, many of us love to spend the summer in the country or in the village, where the centralized water supply has not yet become familiar.

Work washing machine

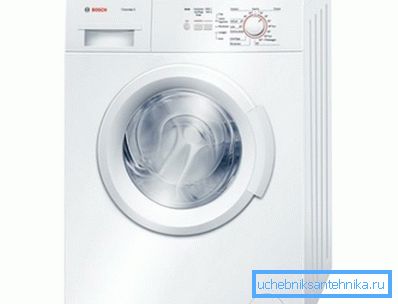

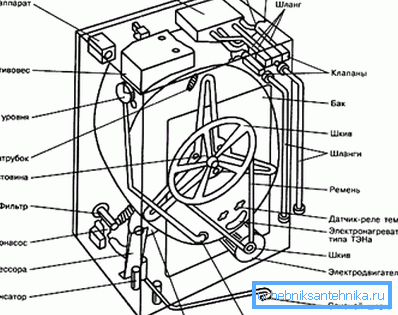

It is no secret that almost all actions in modern units are fully automated. In fact, you only need to put the laundry in the drum, pour the powder, set the operation mode and turn it on. Next, the machine itself begins to fill in the water, at the same time washing out the buried powder, heats the flooded water and washes it.

The rinsing process is approximately the same, but in a more lightweight version. Rinse aid is already being washed out of the bunker, plus hot water, this process often does not require. Although without the means for rinsing can often do. The used water is pumped into the sewage system with an integrated pump.

It would seem that everything is perfect, but the manufacturers of this technology did not think that not all corners of our great country have a water supply connection. The fact is that when the automation gives a command to supply water, the solenoid shut-off valve opens and the machine waits until the water is filled under pressure, if there is no water, it turns off.

We conclude that the washing machine will not work without water supply. But fortunately, not everything is so hopeless, the savvy and golden hands of our people, as usual, will help out always and everywhere. Moreover, there are several options for almost every taste and wallet.

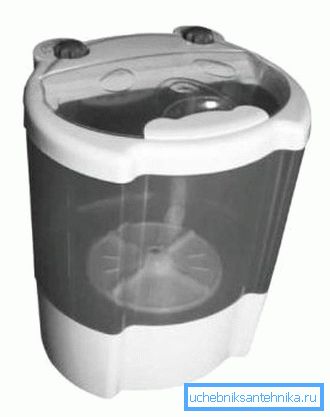

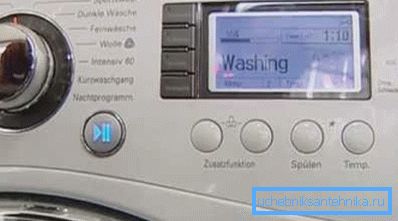

Tip: in this case, the automatic washing machine without plumbing connects much faster and works much better than its more sophisticated “sister”, controlled by sophisticated electronic “brains”.

Connection options

As mentioned earlier, we will consistently discuss the most common ways in which the washing machine without plumbing system will work exactly. And tell you about the way that in our opinion is optimal. To choose which one is better, we will provide you.

How can I equip the system

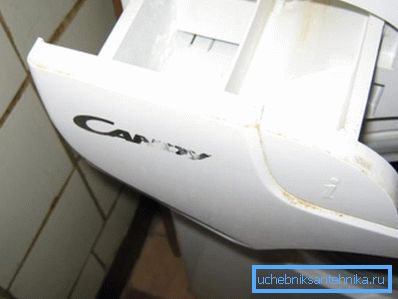

• The easiest way is to pour water directly into the powder bin with your own hands.. At the same time, the washing machine without plumbing is completely costly, especially its mechanical version. By and large, the technique does not matter where the water is poured in, the main thing is that the tank was filled and the level sensor worked.
• The problem is that after each cycle the unit will turn off and wait until you come running with a bucket and pour water into it through a watering can. Yes, and run with a bucket, not the easiest exercise, it turns out already semi-automatic.

• You can resort to a similar, but somewhat improved way.. Recall the principle of communicating vessels and put the tank on a hill. But in order to create enough pressure to trigger the automation, the tank will need to be raised to a height of about 10 m. And again, drag the water there with your own hands.

Advice can be made easier, install the tank just above the machine, insert the valve into it, connect the hose and direct it to the powder bin, but have to sit side by side and open the valve as needed.

• All questions in the style of how to connect a washing machine if there is no water supply disappear, if you have a pumping station. Even the simplest unit with low power, is quite capable of providing the pressure necessary for the operation of the machine. Everything is good here, except for one, the price of an unpretentious pumping station starts from 5,000 rubles, plus filters and fittings to it.
• If a washing machine in the village is connected through the station without running water, then it makes sense to buy a pumping station. In the summer it is useful for watering, and in the winter it will supply drinking water to the house. For seasonal use, the option is quite expensive.
• But there is, in our opinion, the best and at the same time low-budget option.. Its meaning is to install an additional pump, which will simulate the operation of the pumping station and pour water into the tank automatically. Instructions for self-assembly will be disclosed in the next chapter.

Installation of intermediate pump

Before you install a washing machine machine without running water, you will need to take care of two main things. The first thing you need is a water tank. According to experienced gardeners, the best option would be to put a standard two-liter barrel next to the machine. Of course, economical units can do without 100 liters, but there will not be excess supply here.

The second device, without which there is no way to do is a small water pump. If you are not a great specialist in this equipment, we advise you to contact a store selling spare parts for automatic machines and purchase a suction pump. It is better to take the pump of the manufacturer whose machine you are worth.

Tip: Some masters recommend using a conventional pump that is installed in aquariums. The price will, of course, be lower, but it will not create the necessary pressure and the hose will have to be sent to the powder bin.

Further, in order not to overload the pump, we recommend to insert the ball valve into the lower part of the barrel. The intake opening of the unit will be connected to it. The branch pipe from which water will be pumped under pressure is connected to the filling hose.

Next comes the most important. We need to connect the pump to the network and at the same time make it so that it is turned on when necessary. If you remember, at the beginning of the story, we mentioned that in any typewriter there is an electromagnetic valve that opens when the tank is filled.

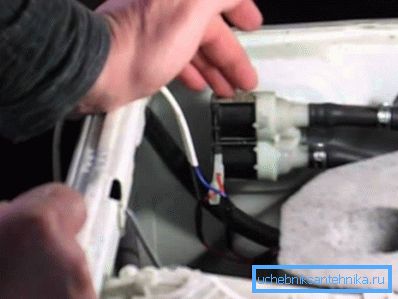

This valve operates on 220V mains and is in the open position only when the operating voltage is applied to it. For us, this is the perfect option. It is necessary to remove the top cover on the machine and in parallel to connect the pump to the solenoid valve.

This can be done directly at the terminals of the valve or track where the wire goes, as a rule, it is in the lower part of the body and paralyze the valve and the pump on the terminal block.

As a result, we get a washing machine does not require connection to the water supply. At that moment, when you need to fill the tank, automation gives the command to apply voltage to open the valve. But we connected a pump to it in parallel, as a result they turn on at the same time and water enters the tank. When the tank is full, the system turns off both units. (See also the article Pumps for water supply from a well: features.)

The video in this article shows a similar installation option for an intermediate pump.

Conclusion

We outlined the most suitable in our opinion way of how to connect a washing machine if there is no water supply. The cost of it will be about 1,000 rubles, I think you will agree that such investments are worth it so as not to carry the water with your own hands and not be on duty near the machine until the end of the wash.
