Water tap with spout for connection to a garden hose

To provide a garden and a kitchen garden with fresh water, water supply fittings are usually installed on the street. It is best to install a watering outdoor tap D 15 mm, since it is this diameter that is most convenient to use if it is not about large areas. In this case, the device must have a special spout with a fitting to simplify operation.

Advantages of this option

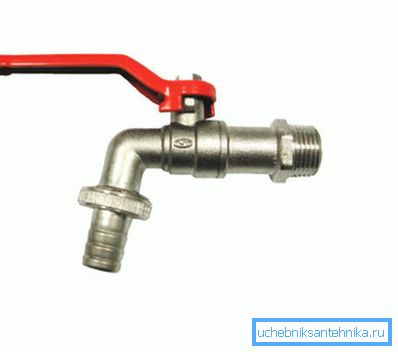

A watering device of this type is an ordinary tap with a lever fixed on a pipe or wall. Its outlet is turned down. At the end there is a special fitting, through which the connection with the hose.

Below are some advantages of products:

• Such a device is convenient to use, as the conductive element is connected in seconds.
• The low price of the device has a positive effect on expanding the range of consumers.
• Such a device is very reliable, which is primarily due to the simplicity of the design.
• A simple installation technology provides an opportunity to work directly with their own hands.
• In case of need the mixer for a watering crane can be installed.

Note! The product for irrigation with a spherical mechanism is very sensitive to the quality of the supplied medium, therefore, if the lever is in one position for a long time, failure is possible.

Technical passport of the product

You can get acquainted with this device in detail if you study the main characteristics of the model of one of the popular manufacturers. The information below will help facilitate the selection, that is, at the time of the acquisition there will be a specific guideline.

Basic characteristics

Internal or external faucet can be successfully used as an element of water fittings on the lines of cold and hot water supply. If we are talking about technological networks, then the product is quite possible to use for the transportation of gases and various liquids that are not aggressive.

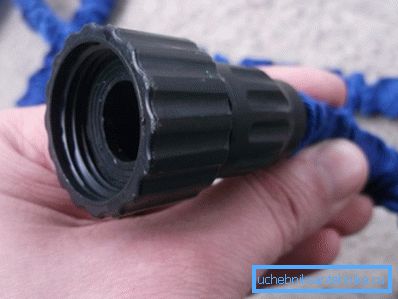

You can connect a garden or any other hose to the device using a removable fitting.

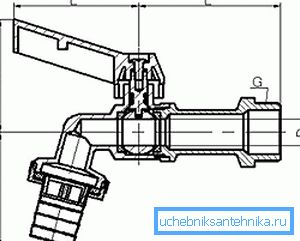

Main elements

Effective functioning of the crane is carried out thanks to well thought over structure. The structure includes several components that play an important role in the process of operation.

You can get acquainted with the components of the products, if you look at the list below.

• The case allows you to protect the internal parts of the mechanism from various impacts. It is made of nickel-plated brass.
• The bolt ball allows the opening and closing of the working medium flow.. It is made from copper alloy with a chrome-plated coating.
• Stock refers to kinetic elements, as it actuates the mechanism by transmitting the force from the handle.
• Saddle rings are usually made on the basis of Teflon, which also contains elastomer and carbon.
• Fitting made of anodized steel, allows you to attach a watering hose.
• Seal rings used to increase the level of sealing. Usually, rubber is used in their production.
• Plastic handle with screw fastening serves to perform actions to shut off the water.
• Cap nut is a part of a threaded pipe connection, designed for screw transmission.

Note! If the outdoor irrigation valve DU25 is purchased, then it is necessary to purchase a hose with a diameter of 25 mm. When converted to inch dimensions, this parameter will correspond to?.

Installation recommendations

When carrying out installation work, the coupling connection of the device with pipes must necessarily be carried out using sealing materials, otherwise it will not be possible to achieve high tightness. The best option is to use PTFE products.

Installation of the crane must be carried out using lever keys below the third category. It is possible to influence the tool only on the hexagon located on the outlet nozzle.

When fixing the crane on the facade of the building, you must use high-quality fasteners to hold the pipeline. In this case, the inlet parts may be hidden under the finish.

When using flexible hoses, fastening to the fitting should be made with standard clamps. As for the various wires, their use is not recommended.

Possible damage

• The presence of a leak from under the nut fitting may indicate the conduct of low-quality sealing at the junction. To eliminate this malfunction, it is necessary to replace the damaged seal.
• The occurrence of a leak in the place of the coupling indicates most often a damage to the gasket for the seal. Replacing it usually fixes the situation.
• If it flows where the stock itself is, then we can talk about premature deterioration of the stuffing box. In this case, the complete replacement of the product.

Crane for watering: video installation instructions do-it-yourself, features of plastic, ball products, with a timer, barrels, containers, how to connect, price, photo

Final part

We hope that the presented instructions on how to connect a watering hose to the faucet to ensure the delivery of water to the right place of the garden plot for the implementation of irrigation will help you in working on the plot.

Docking in this case is as easy as possible, since the product is already supplied with a removable fitting, so there is no need to make special events. Other information related to this subject is in the video in this article.
