What are rain shower systems?

17-07-2018
Water supply

We have recently started using the phrase "tropical shower", so for many consumers it is still a mystery and raises a lot of questions. In the article below we will give answers to most of them. In particular, let us examine in more detail with this device installed in the bathroom, find out what is meant by this name, how the equipment works, why it was invented in general and whether it can be done independently.

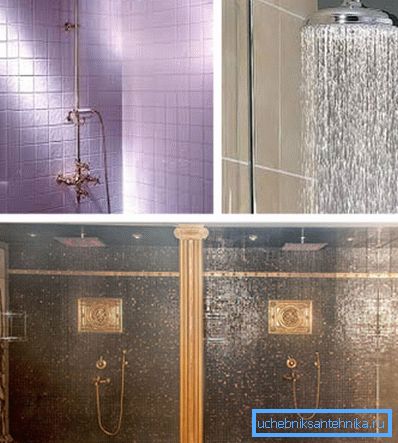

In the photo - systems of tropical rain in different versions

Hydromassage device

Probably, many of us wondered why, running under the warm rain in the summertime, both children and adults receive a charge of cheerfulness. Oddly enough, the answer to this phenomenon is simple - in addition to the usual cleansing of the skin from dirt, which adds energy, drops of water falling on the body create the effect of massage, relaxing almost all muscles. The installation designers needed to simply imitate the work of nature, with which they did an excellent job.

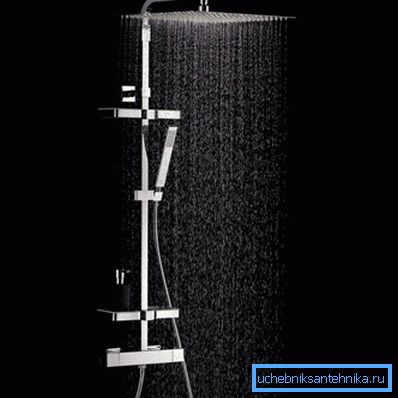

Shower rack with rain shower and mixer Valentin Touareg Dome

In appearance, the device resembles a large watering can installed on the ceiling. Outgoing from it jets fall on the whole body, and not on a separate part of it, as it happens when taking an ordinary shower. Sometimes these devices have a special switch that allows you to adjust the pressure of the "rain", for example, you can get heavy rain or rain with large drops.

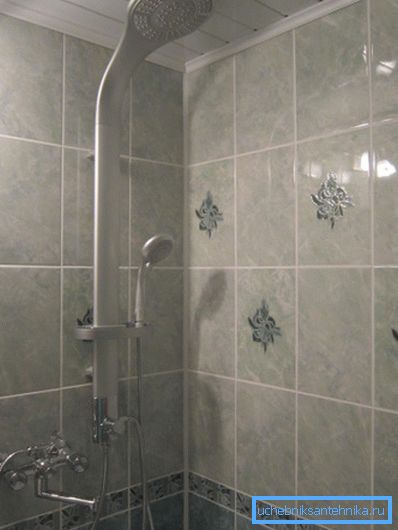

Shower system with rain shower and mixer in the apartment

Types and differences of rain shower systems

Not everyone has the opportunity to purchase and install a shower in the bathroom, so the developers have proposed an alternative option - a separate panel. But even systems that are designed for the same sanitary equipment are often distinguished by their design.

Consider below what types of these devices are offered to consumers:

Panel
  1. A shower panel with a rain shower and a mixer is used for bathtubs and shower cubicles, but was designed exclusively for the latter.
  2. Installing the equipment is quite simple in the corner of the bath, where it will serve as a good addition and extension of the functionality of a conventional bath.
  3. The advantage is that in one case you get both a mixer and a watering can.
  4. Often, such devices are additionally equipped with hydromassage jets.
  5. Lack of equipment - high price, all other types will cost less.
Rack
  1. Most consumers think that shower racks with a rain shower with a mixer are the most optimal and versatile solution. Used equipment for shower and for a normal bath.
  2. This rod, which is attached to the wall, which is joined by a watering can for tropical rain.
  3. Different from the usual shower size watering can.
  4. On sale there are two options when water is supplied by:
  • flexible hose;
  • stationary pipe inscribed harmoniously in the design.
Mixer
  1. The difference between the device and a conventional bath mixer is the diameter of a complete watering can, which can be up to 250 mm.
  2. The equipment can not be called a full-fledged tropical shower, because the width of the stream is less than necessary, which does not allow to cover the whole body with jets.
  3. Rain shower with spout is available in several versions:
  • with flexible hose, which is mounted on the wall with a small mount;
  • with a stationary pipe, in this case, the size of the watering can can be much larger.
Watering can
  1. The fixture is capable of turning a traditional bath mixer with a shower into something like a “tropical rain”.
  2. The most inexpensive option, it is enough to purchase a separate watering can and install it on the mixer hose.
  3. Option only vaguely reminiscent of a real tropical shower.

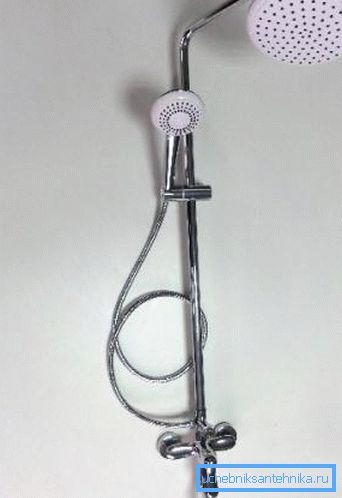

Mixer with rain shower and conventional shower

After examining all the systems, and comparing their capabilities, as well as pricing, some come to the conclusion that a full-fledged version of the "tropical rain" can only be in the manufacture of the device with their own hands.

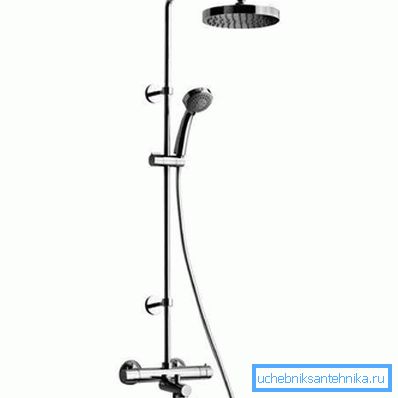

Alpi Elis EL504151 Rain Shower Faucet

Making a shower by yourself

Do not be afraid of the name of the equipment, actually make it a couple of trivia. The design is simple and clear even for those who decided to try themselves as masters for the first time. You do not need to use for work many different units and mechanisms.

Prepare only three items:

  • mixer;
  • large watering can;
  • water pipes.

Tip: combine the system with a shower mixer, which will be used to control the flow of water to the shower and bath. We recommend using hidden installation equipment.

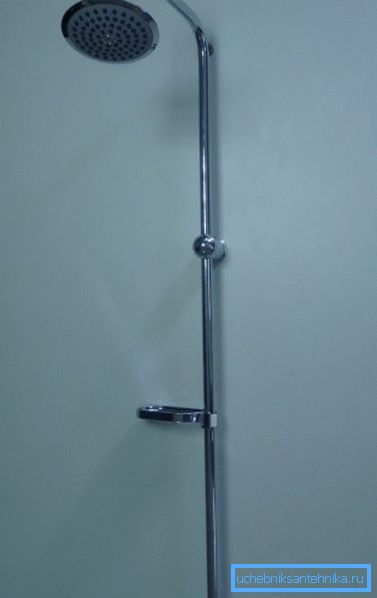

Separate shower stand with rain shower without mixer

Process

Instructions for assembling and installing a self-made shower:

  1. Make a strobe system in the wall, where the center for the mixer will be the central place
  2. Bring four strokes to this recess:
  • two - to supply water to the mixer;
  • the third is a pipeline for supplying water from the mixer to the bath;
  • the fourth is a pipe for supplying water to the shower watering can.
  1. Proceed to the laying of water pipes, where everything depends on the type of pipeline that you prefer.

Tip: for the hidden method of installation, give preference to reliable systems - polypropylene or copper.

  1. Swipe the strobe from the mixer, which supplies water to the shower, right up to the ceiling, then a little along it to the place where you plan to fix the watering can, then down a little, so you will fall to the level of a possible suspended ceiling, since you will not be able to hide the pipes .
  2. You can begin to complete the repair of the bathroom.
  3. At the last stage, it is necessary to install a watering can and a mixer control knob. Screw the first one onto the outlet of the pipeline in the ceiling, not forgetting to seal the threads with sanitary fum-tape or tow.
  4. Check the performance and defectiveness of the system. Troubleshoot if they occur. After that, you can fully use the hydromassage device called "tropical shower".

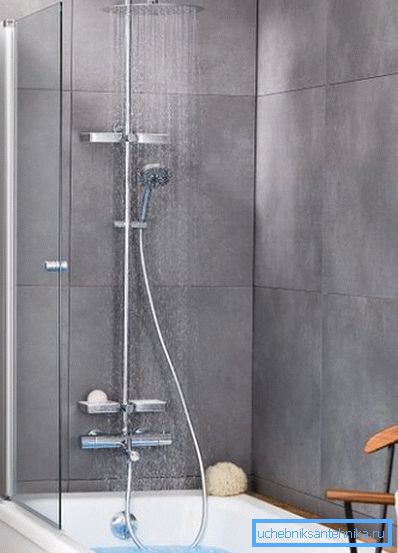

The mixer for a bathroom with a rain shower Valentin Opium 4

You can install self-made equipment both in the shower cabin and above the bathtub. In the latter case, just do not forget to provide curtains so that the drops do not splash around the room.

Conclusion

Today you learned about one interesting hydromassage device - the "tropical shower", which is often included in the shower set. Now you can make yourself a similar device yourself, using the minimum amount of tools and system parts for work.

Ready "tropical rain" will help to relax after a working day and give a boost of energy for a new day. The video in this article will provide an opportunity to find additional information on the above topic.
